Oil Pressure Sender: Service and Repair

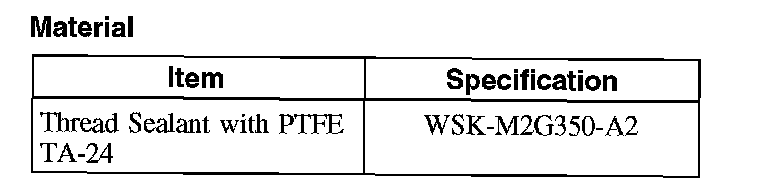

Engine Oil Pressure (EOP) SwitchMaterial:
Removal and Installation
All vehicles
1. With the vehicle in NEUTRAL, position it on a hoist.

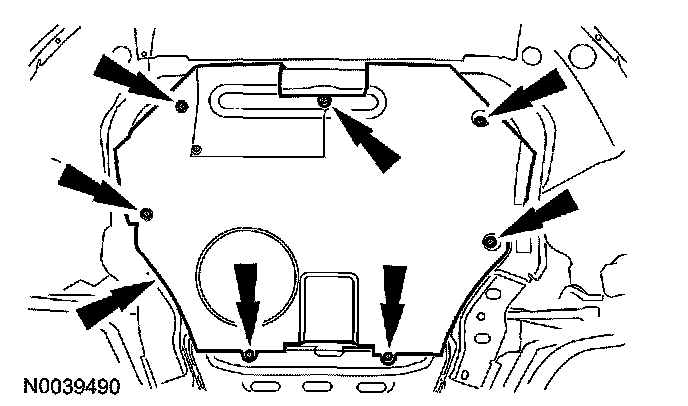

2. If equipped, remove the 7 screws and the underbody cover.
Vehicles equipped with manual transaxle
3. Remove the 2 bolts and position the clutch slave cylinder aside.
^ To install, tighten to 22 Nm (16 ft. lbs.).
All vehicles
4. Disconnect the oil pressure sender electrical connector.
5. Remove the oil pressure sender.
^ To install, tighten to 15 Nm (11 ft. lbs.).
6. To install, reverse the removal procedure.
^ Apply pipe sealant with Teflon to the oil pressure sender threads.
