Positive Crankcase Ventilation Valve: Service and Repair

POSITIVE CRANKCASE VENTILATION (PCV) VALVE

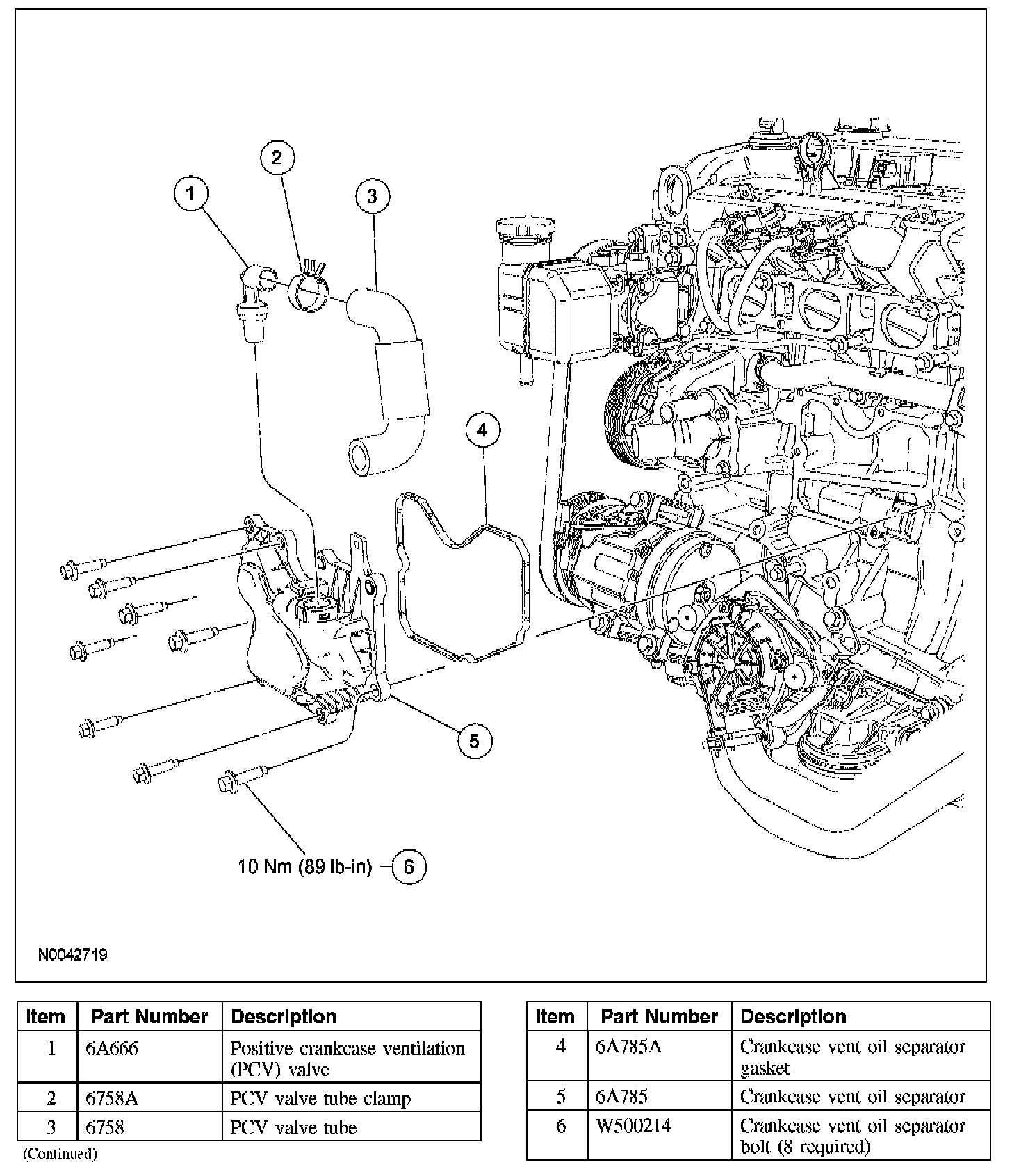

Exploded View

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the intake manifold.

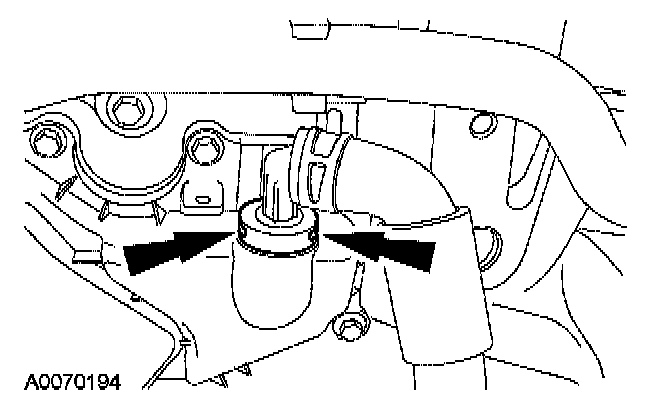

3. Disengage the 2 tabs and remove the positive crankcase ventilation (PCV) valve from the oil separator.
4. Release the clamp and remove the PCV valve vacuum tube.
5. To install, reverse the removal procedure.
