Mercury
>>
2007
>>
Milan FWD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
>>

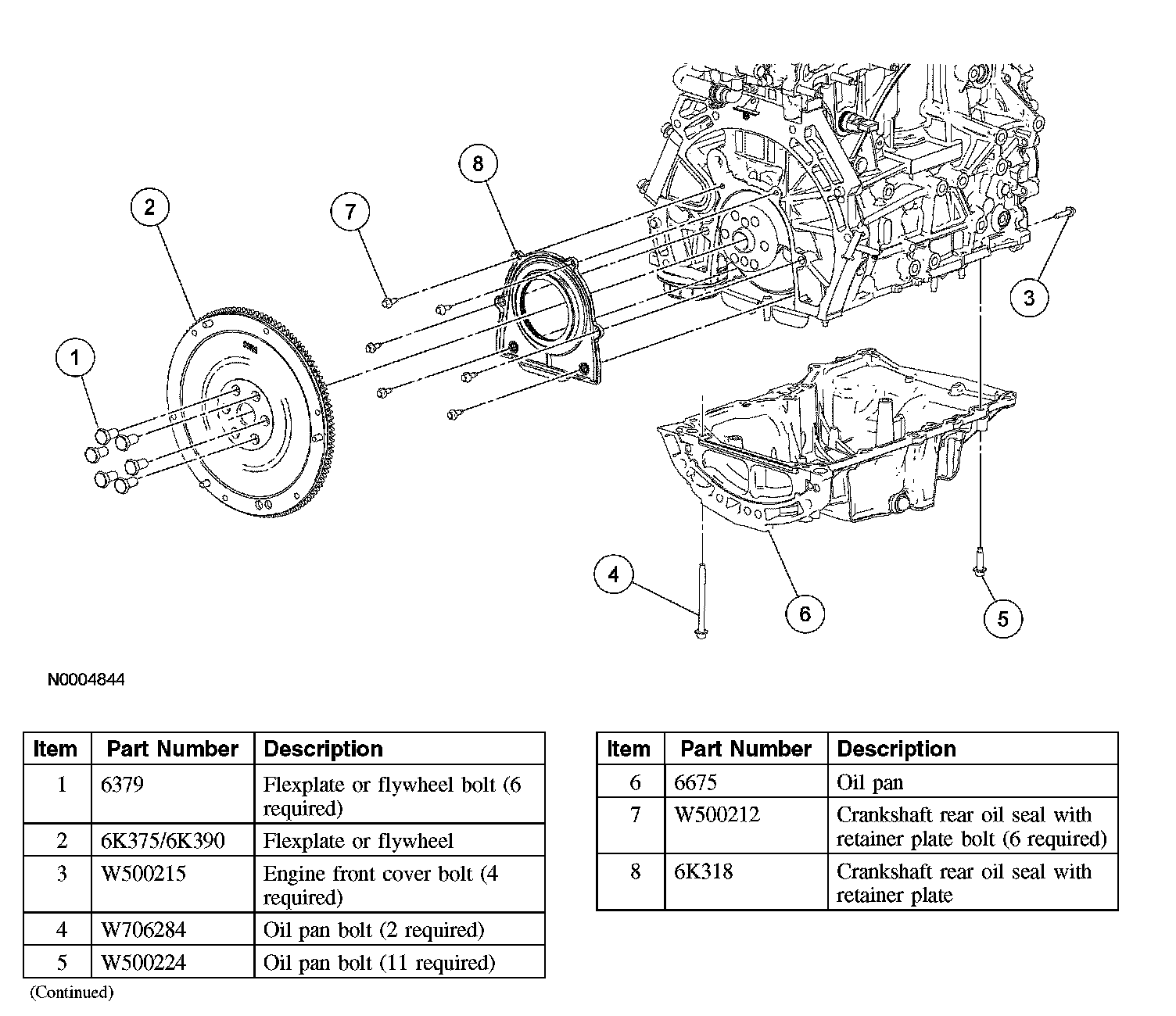

Lower End Components - Exploded View, Flexplate, Flywheel and Crankshaft Rear Seal
Lower End Components - Exploded View, Flexplate, Flywheel and Crankshaft Rear Seal
Lower End Components - Exploded View, Flexplate, Flywheel and Crankshaft Rear Seal
