Front Door Window Glass Weatherstrip: Service and Repair

DOOR GLASS TOP RUN - FRONT

Part 1:

Part 2:

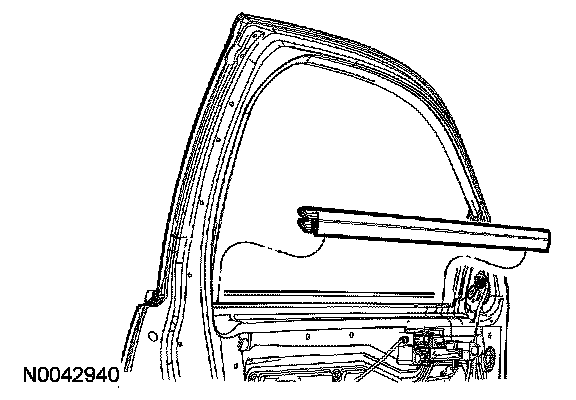

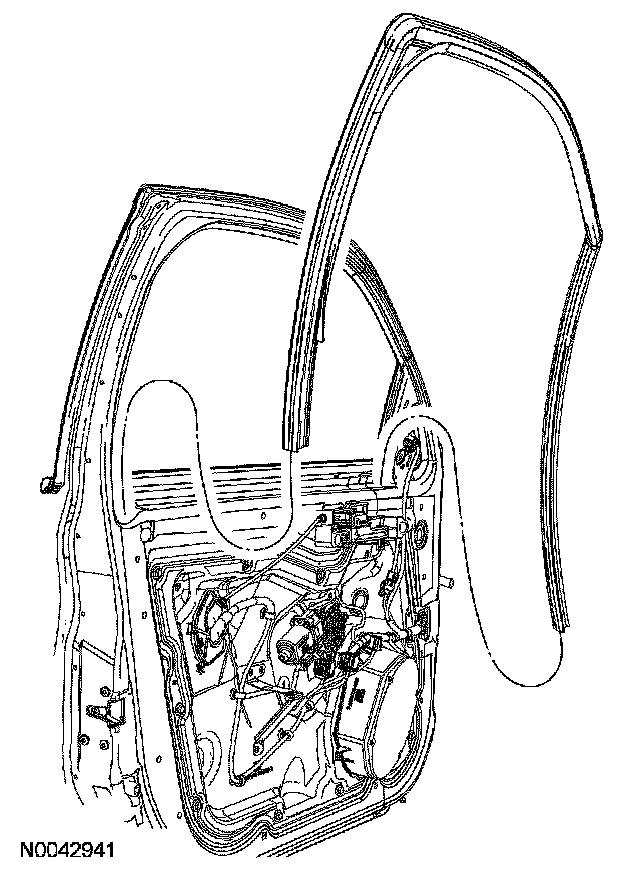

Exploded View

Removal and Installation
1. Remove the front door window glass.







2. Remove the front door window glass inner weatherstrip.







3. Remove the front door glass top run.
4. To install, reverse the removal procedure.
