Stub Shaft Pilot Bearing and Seal

Stub Shaft Pilot Bearing and Seal

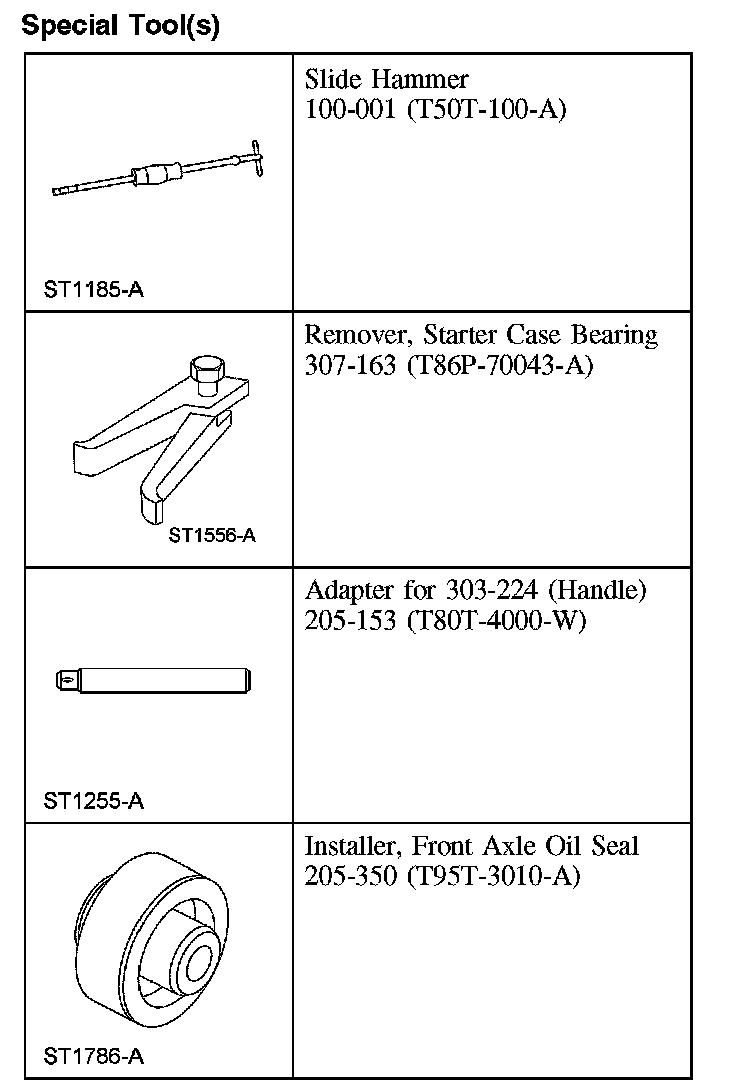

Special Tools:

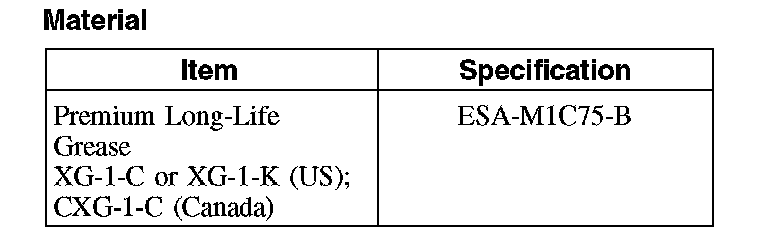

Material:

Removal
1. Remove the halfshaft assembly.

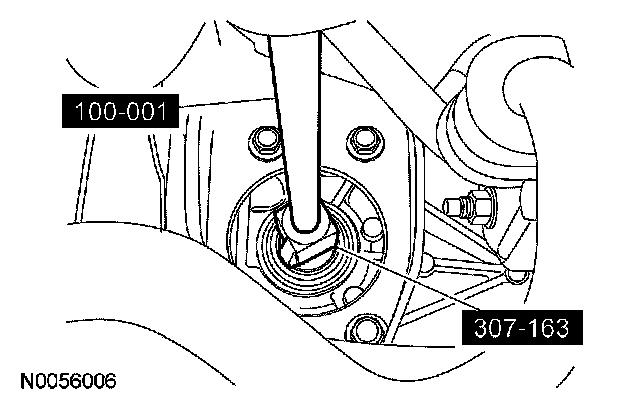

2. To remove the seal, use the special tool to remove the stub shaft seal. The stub shaft pilot bearing is not serviced.





Installation

1. NOTE: Lubricate the new stub shaft pilot bearing housing seal with grease.

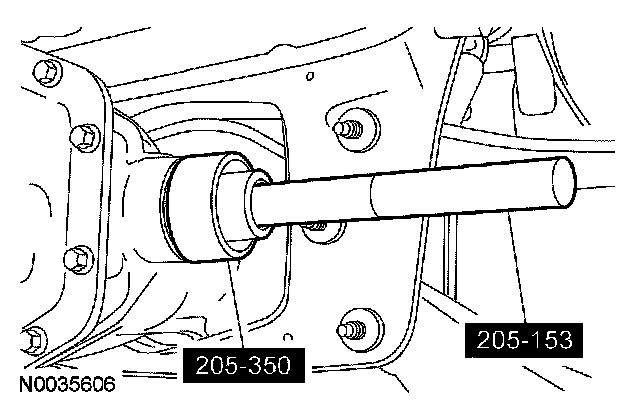

Using the special tools, install the stub shaft pilot bearing housing seal.





2. CAUTION: Inspect the inboard CV joint seal journal for rust or nicks/scratches prior to installing the halfshaft. If necessary, polish the seal journal with fine crocus cloth.

Install the halfshaft assembly.
