Drive Pinion Seal

Drive Pinion Seal

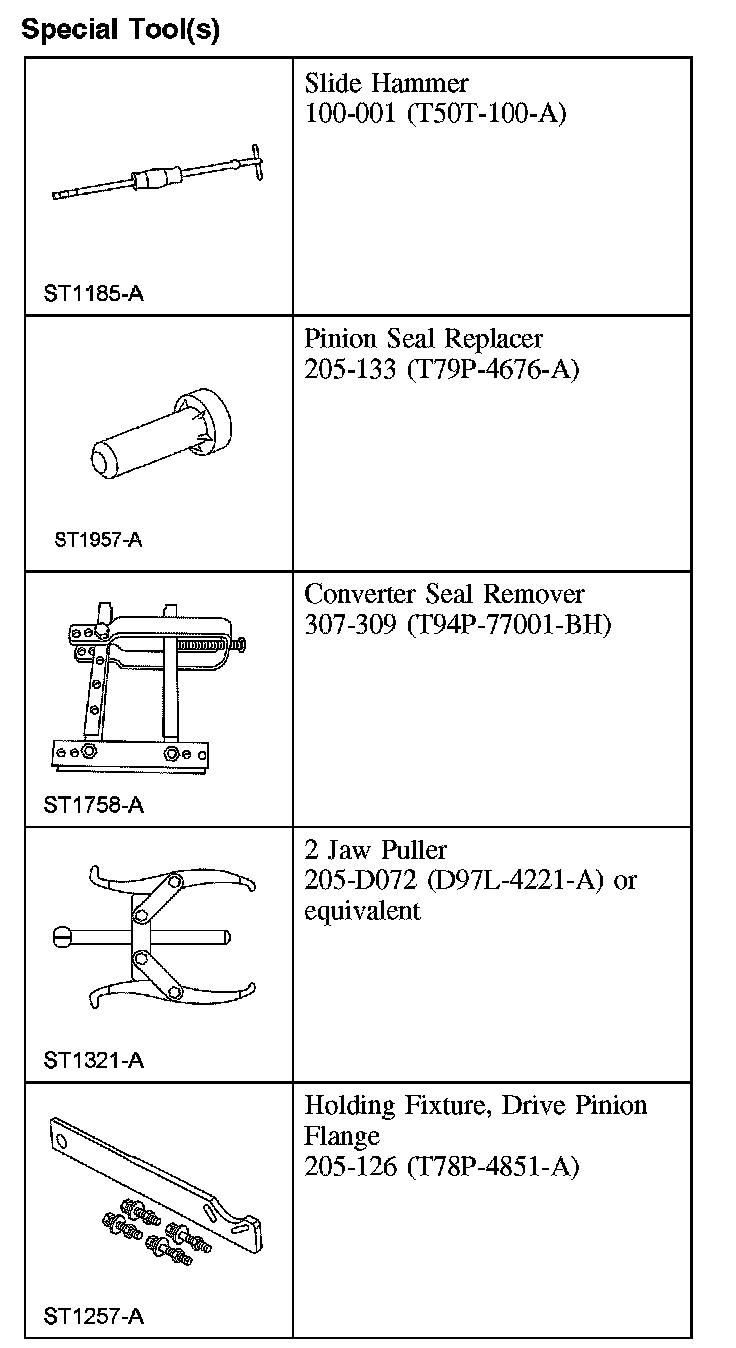

Special Tools:

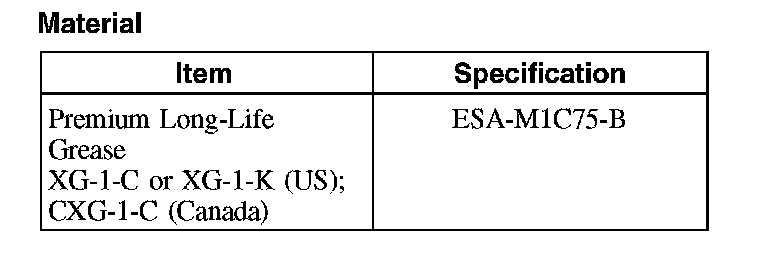

Material:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maint.Service.

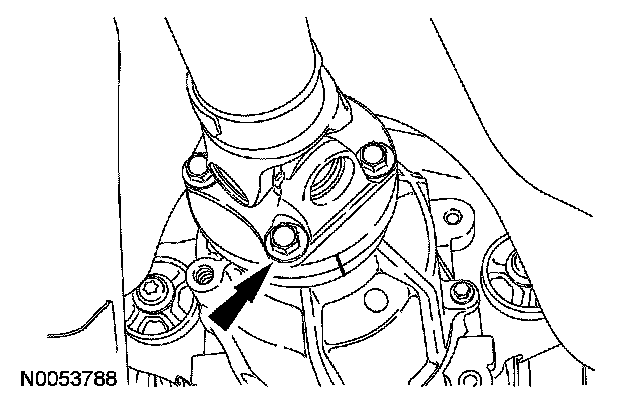

2. Remove and discard the 4 rear driveshaft universal joint flange bolts.
- Support the driveshaft.





3. NOTE: Discard the nut after removing it. Install a new nut during installation.

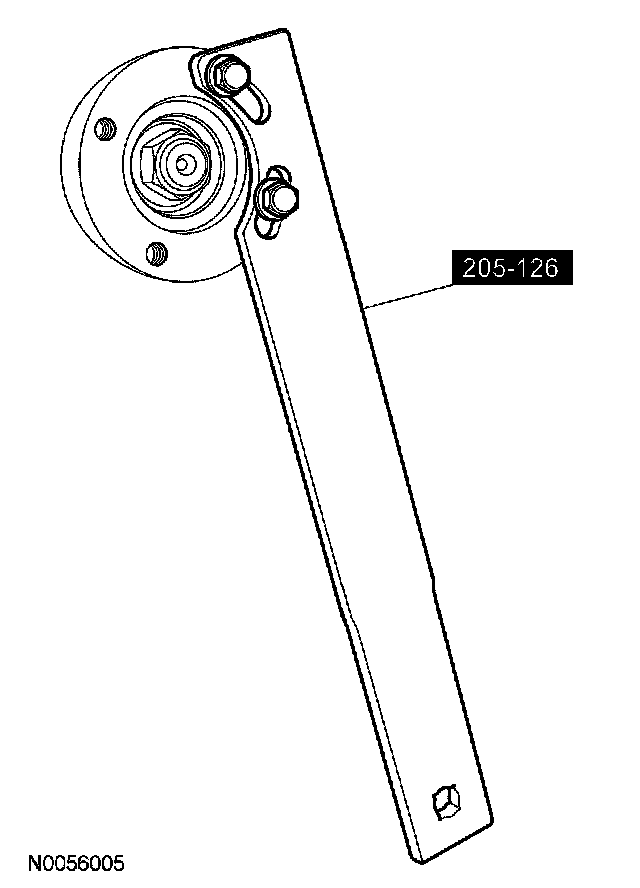

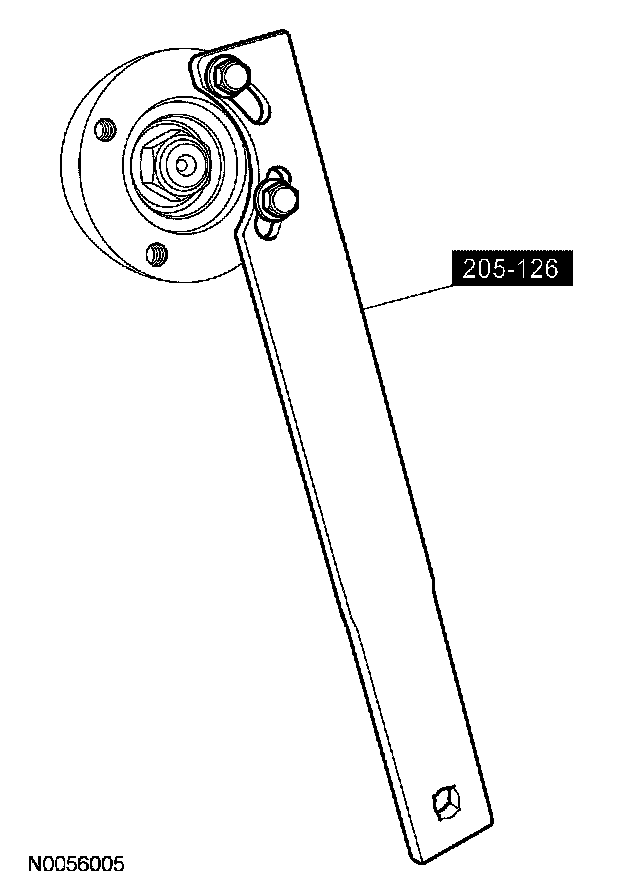

Using the special tool, hold the pinion flange while removing the nut.
- Remove the nut.

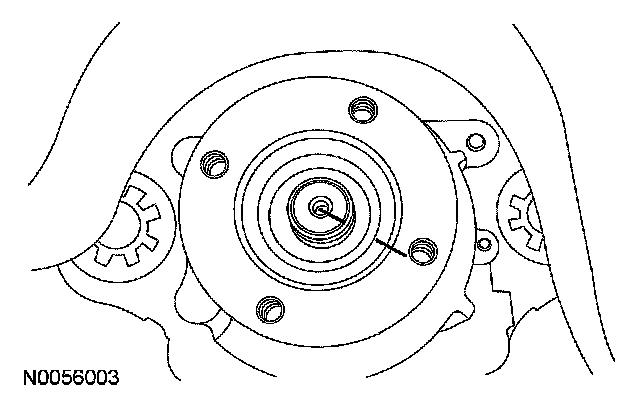

4. Index-mark the location of the pinion to the yoke.

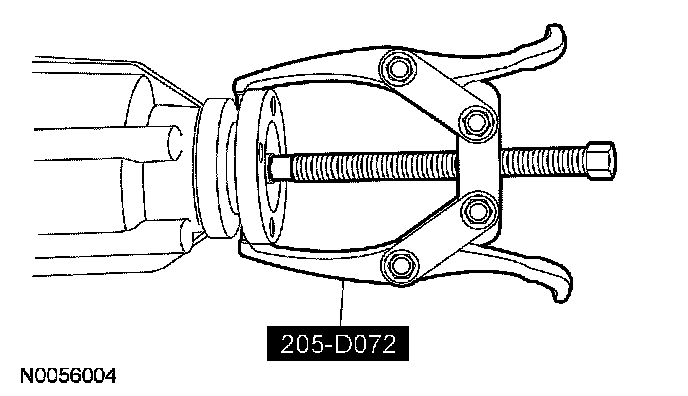

5. Using the special tool, remove the pinion flange.

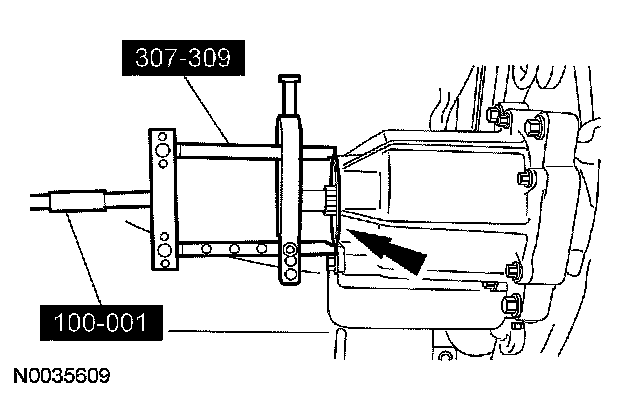

6. Using the special tools, remove the seal.





Installation

1. NOTE: Make sure that the mating surface is clean before installing the new seal.

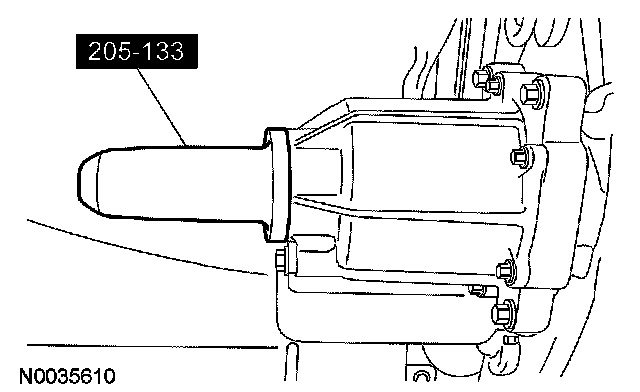

Using the special tool, install the seal.





2. NOTE: Lubricate the pinion flange with premium long-life grease.

Line up the index marks and position the pinion flange.





3. Using the special tool, install the pinion nut.
- Tighten to 244 Nm (180 ft. lbs.).

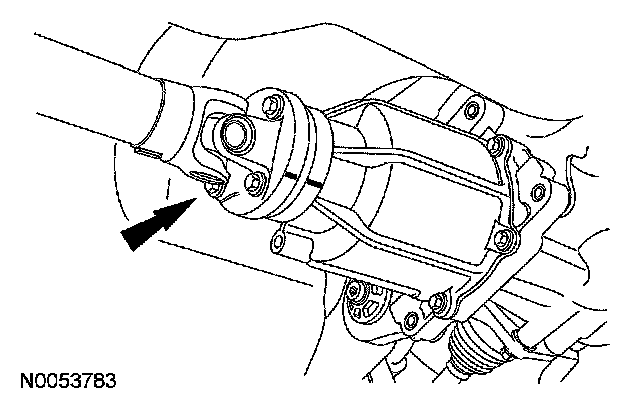

4. Line up the index marks and install the rear driveshaft universal joint flange.
- Tighten the bolts to 70 Nm (52 ft. lbs.).
