Removal and Replacement

Clutch Master Cylinder

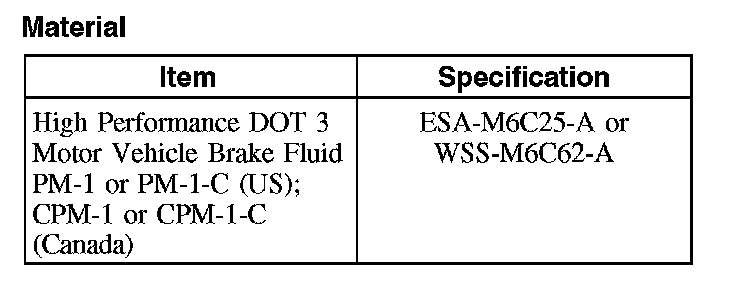

Material:

Removal and Installation

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in personal injury.

WARNING: Use of any other than approved DOT 3 motor vehicle brake fluid will cause permanent damage to brake components and will render the brakes inoperative. Failure to follow these instructions may result in personal injury.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, wash it immediately with water.

CAUTION: Do not allow the brake master cylinder reservoir to run dry during the bleeding operation. Keep the brake master cylinder reservoir filled with clean specified brake fluid. Never reuse the brake fluid that has been drained from the hydraulic system.

NOTE: When any part of the hydraulic system has been disconnected for repair or new installation, air may get into the system and cause spongy brake pedal action. This requires bleeding of the hydraulic system after it has been correctly connected. The hydraulic system can be bled manually or with pressure bleeding equipment.

1. Working under the instrument panel, remove the clutch master cylinder nut.
- To install, tighten to 21 Nm (15 ft. lbs.).
2. Using a suitable suction tool, remove the brake fluid to just below the clutch reservoir hose.





3. Remove the battery and the battery tray.

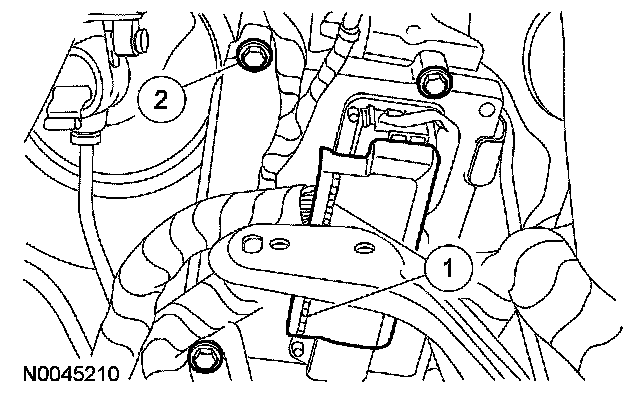

4. Remove powertrain control module (PCM).
1. Disconnect the electrical connectors.
2. Remove the PCM bolts.

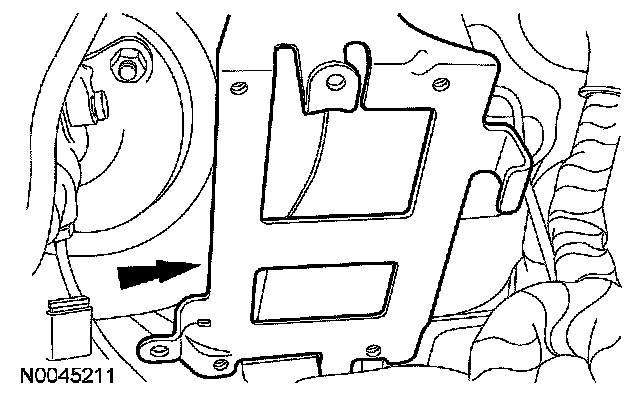

5. Remove the PCM bracket.

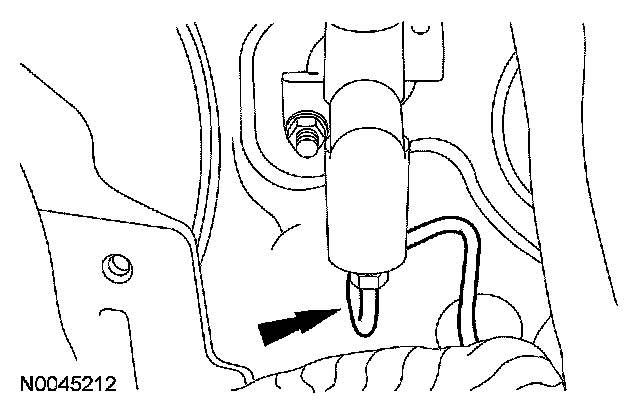

6. Disconnect the clutch master cylinder-to-clutch slave cylinder hydraulic line.
- To install, tighten to 17 Nm (13 ft. lbs.).

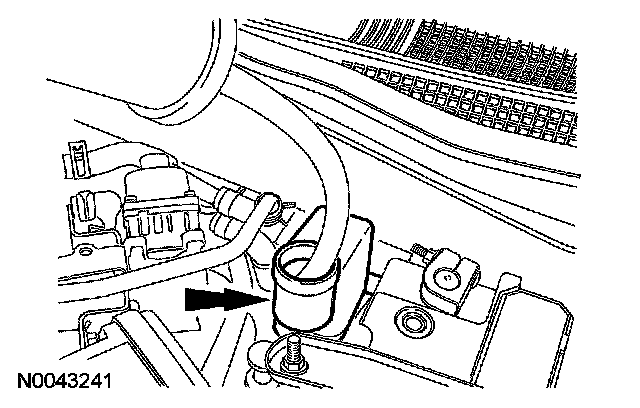

7. Disconnect the clutch master cylinder-to-clutch reservoir hose.
8. Remove the clutch master cylinder nut.
- To install, tighten to 21 Nm (15 ft. lbs.).
9. Remove the clutch master cylinder assembly.
10. To install, reverse the removal procedure.
11. Bleed the clutch hydraulic system.
