Home >> Mercury >> 2007 >> Milan AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> FNR5 - Automatic Transaxle/Transmission >> Transaxle 5TH Gear Valve Body Internal Harness Connectors

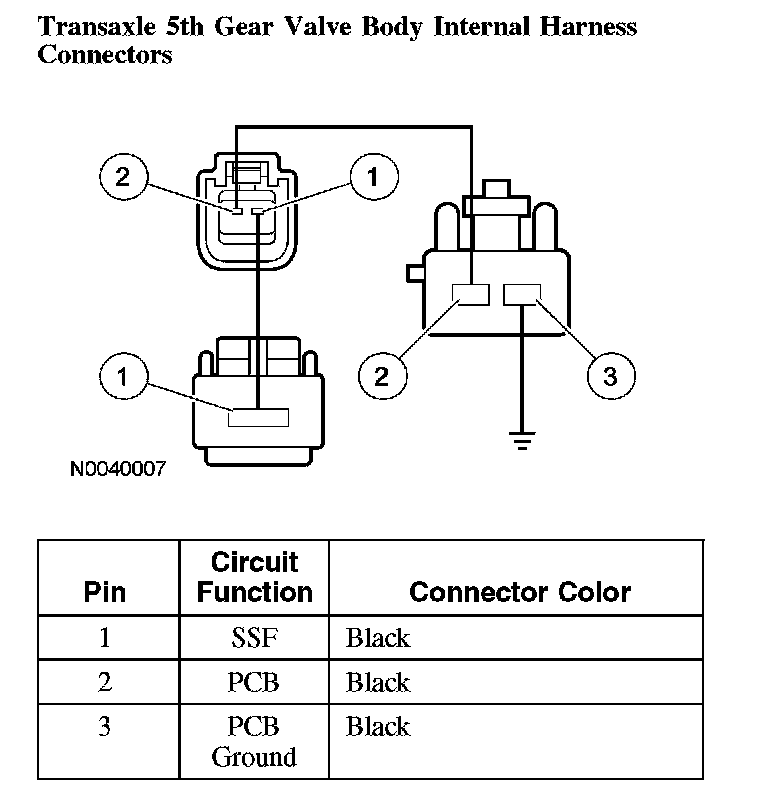

Transaxle 5TH Gear Valve Body Internal Harness Connectors

Transaxle 5th Gear Valve Body Internal Harness Connectors:
