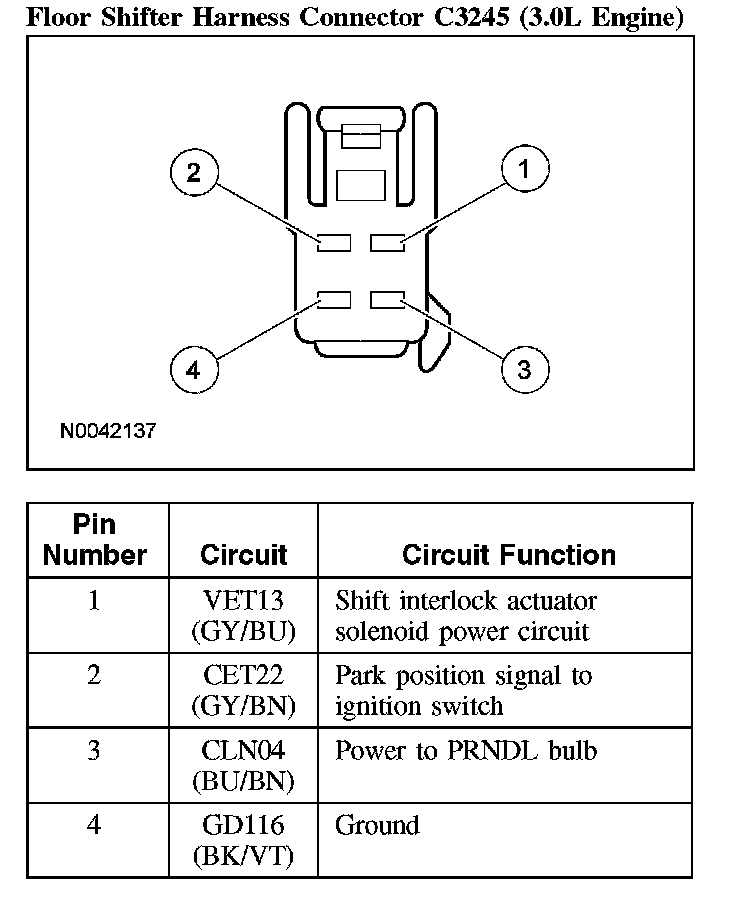

Floor Shifter Harness Connector C3245 (3.0L, Engine)

Floor Shifter Harness Connector C3245 (3.0L, Engine):
