Home >> Mercury >> 2007 >> Milan AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> FNR5 - Automatic Transaxle/Transmission >> Diagnostic Routines >> Torque Converter Clutch Operation Concerns 240-342 >> 240, Does Not Apply

240, Does Not Apply

Does Not Apply

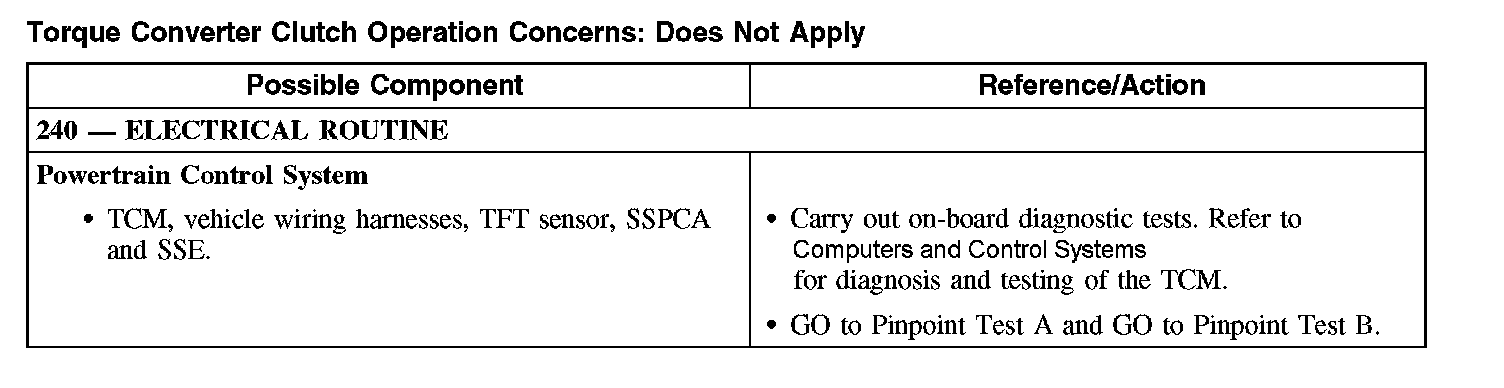

240-340 (Part 1):

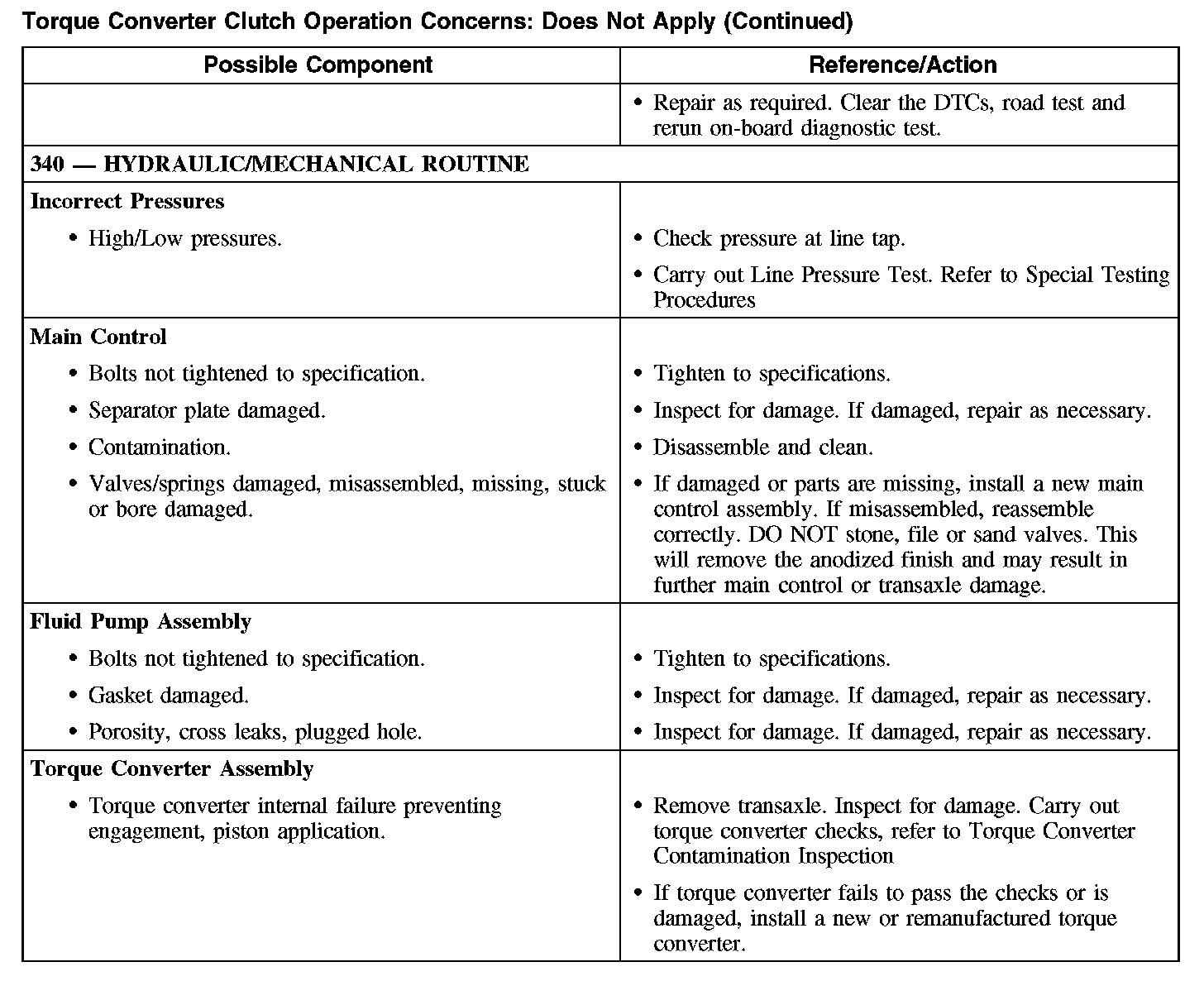

240-340 (Part 2):
