Transaxle Control Module Terminal Testing

Transaxle Control Module Terminal Testing

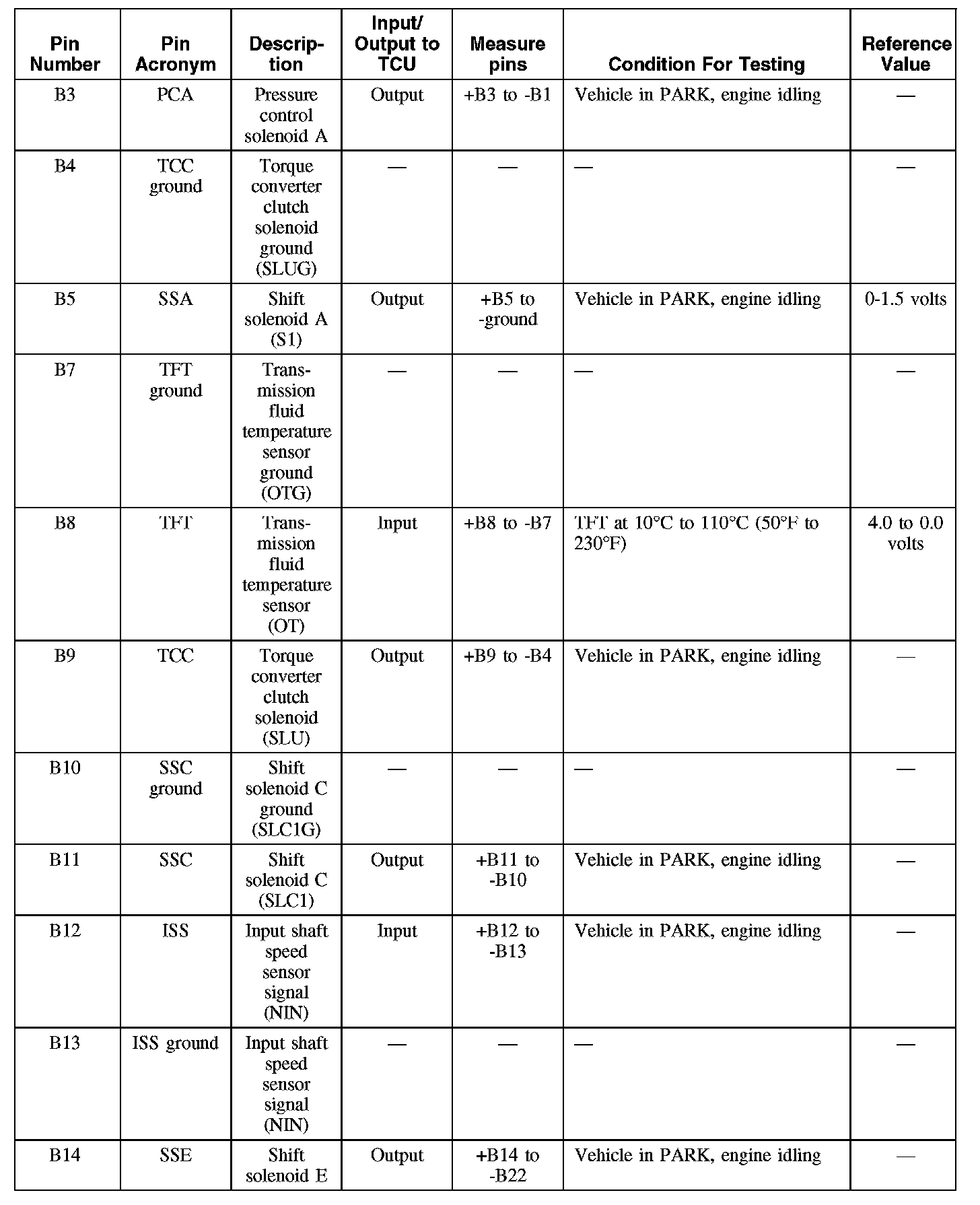

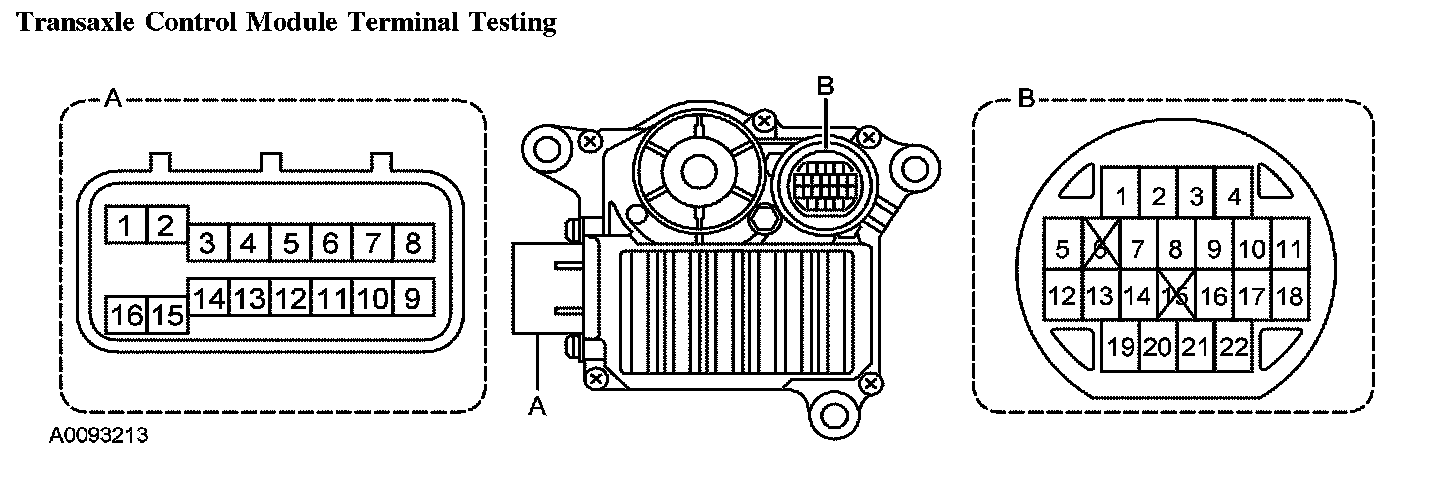

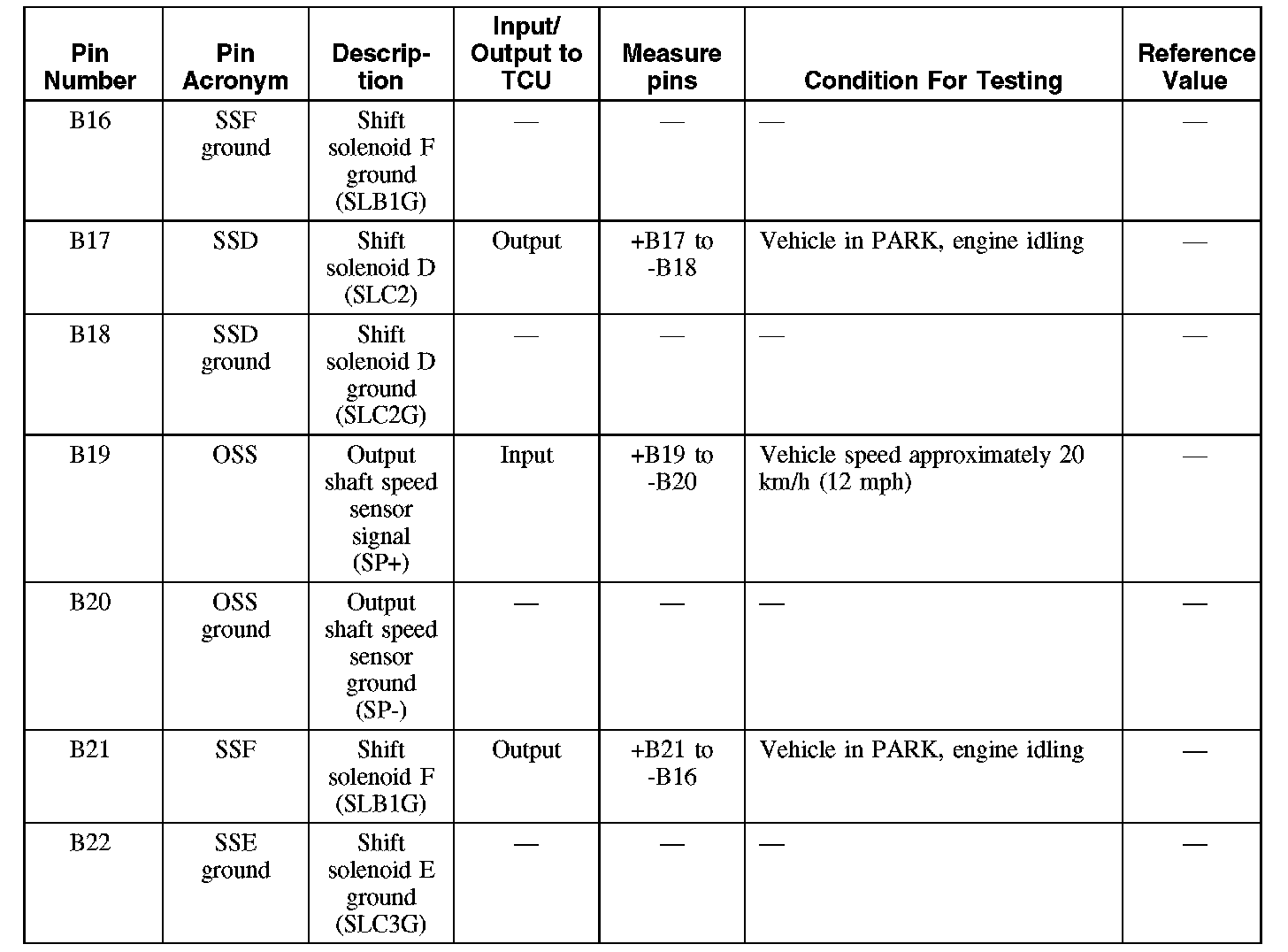

Transaxle Control Module Terminal Testing:

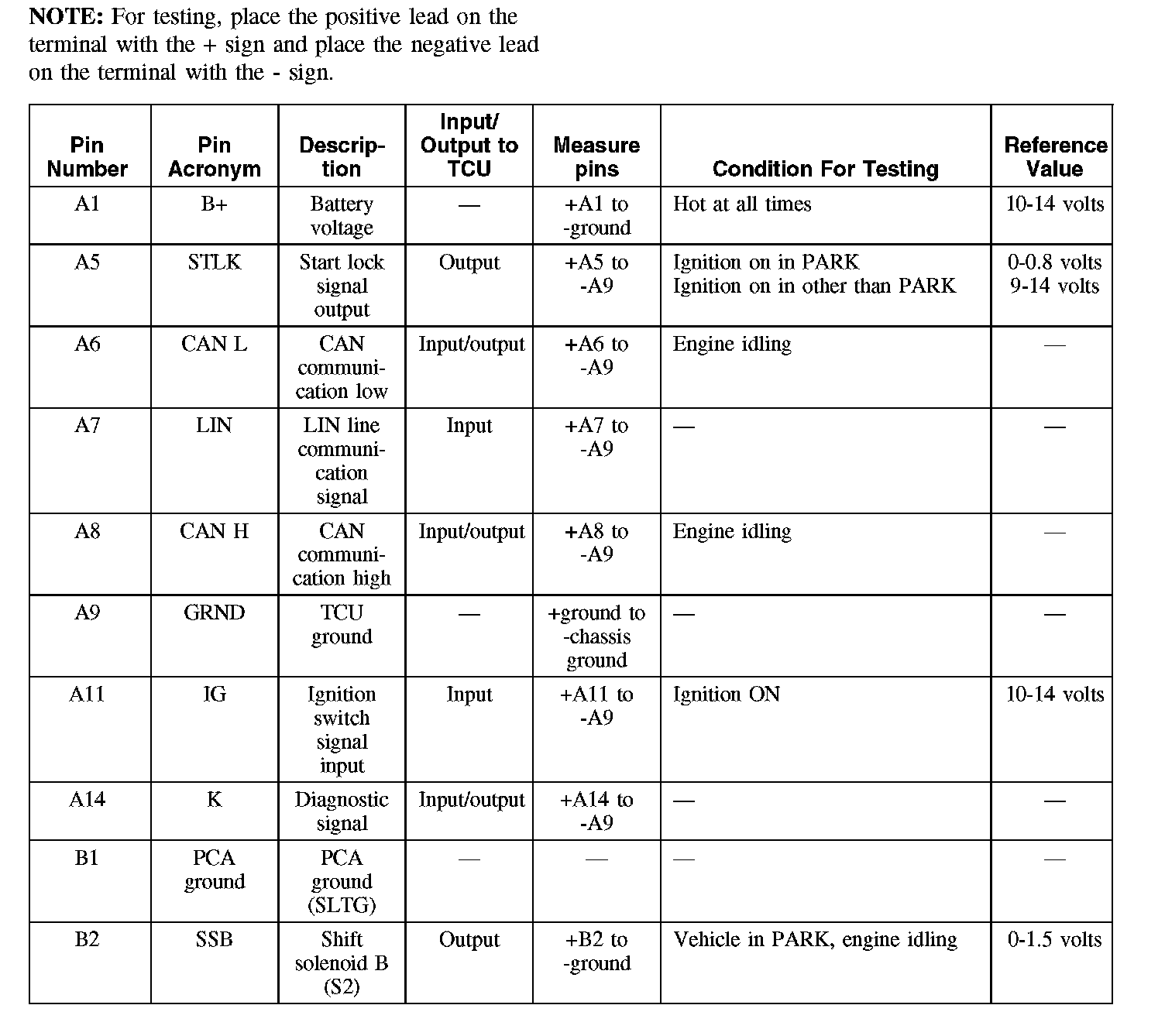

NOTE: For testing, place the positive lead on the terminal with the + sign and place the negative lead on the terminal with the - sign.
