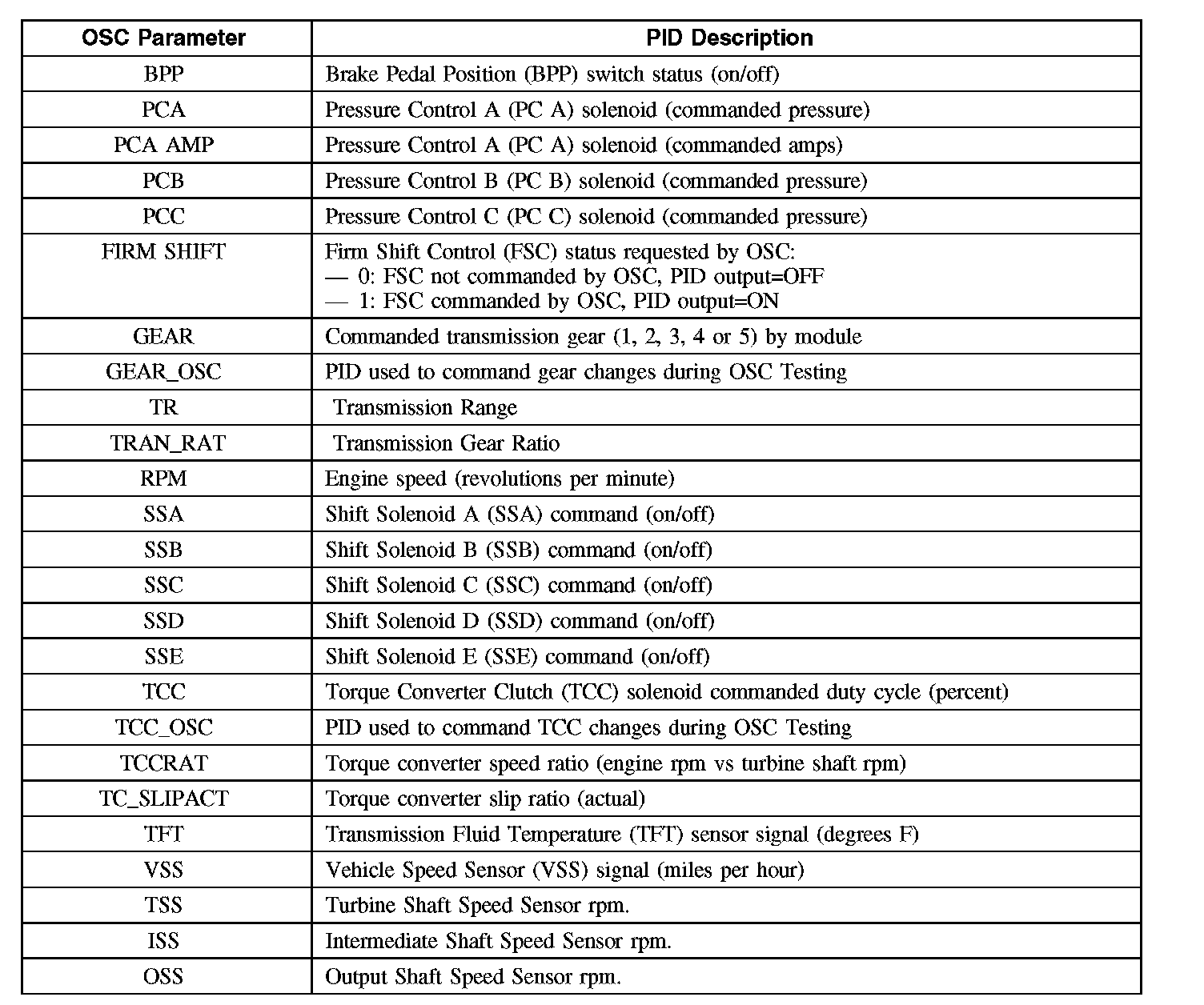

Diagnostic Parameters Identification (PID) Chart

Diagnostic Parameters Identification (PID) Chart

Using Output State Control (OSC) and Accessing PID's

To confirm that the OSC value was sent by the scan tool and the PCM has accepted the OSC substitution, a corresponding PID for each OSC parameter must be monitored. Additional PID's should be monitored to help the technician adequately diagnose the transmission.
