Test A: Shift and Torque Converter Clutch Solenoids (Only)

TEST A: SHIFT AND TORQUE CONVERTER CLUTCH SOLENOIDS (ONLY)

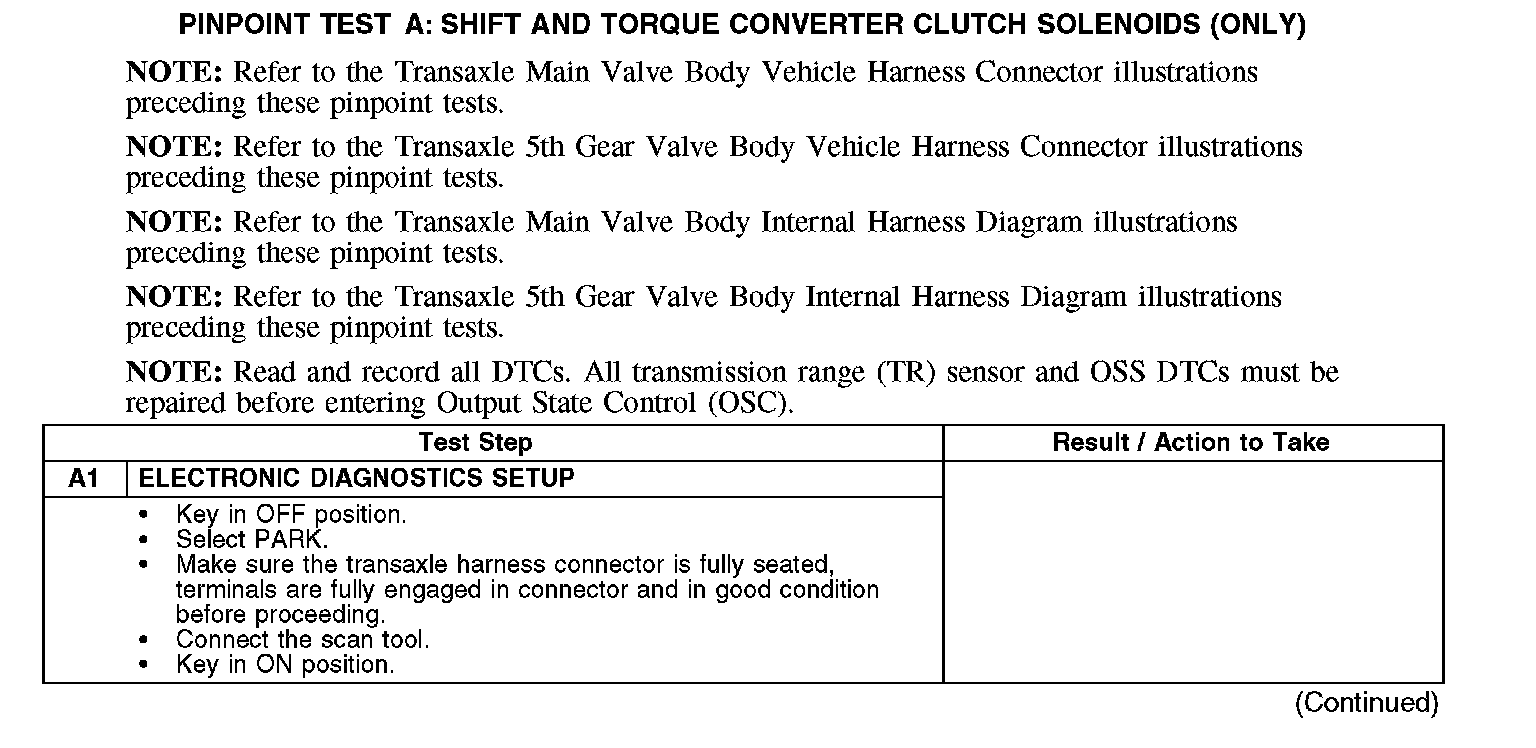

NOTE: Refer to the Transaxle Main Valve Body Vehicle Harness Connector illustrations preceding these pinpoint tests.

NOTE: Refer to the Transaxle 5th Gear Valve Body Vehicle Harness Connector illustrations preceding these pinpoint tests.

NOTE: Refer to the Transaxle Main Valve Body Internal Harness Diagram illustrations preceding these pinpoint tests.

NOTE: Refer to the Transaxle 5th Gear Valve Body Internal Harness Diagram illustrations preceding these pinpoint tests.

NOTE: Read and record all DTC's. All transmission range (TR) sensor and OSS DTC's must be repaired before entering Output State Control (OSC).

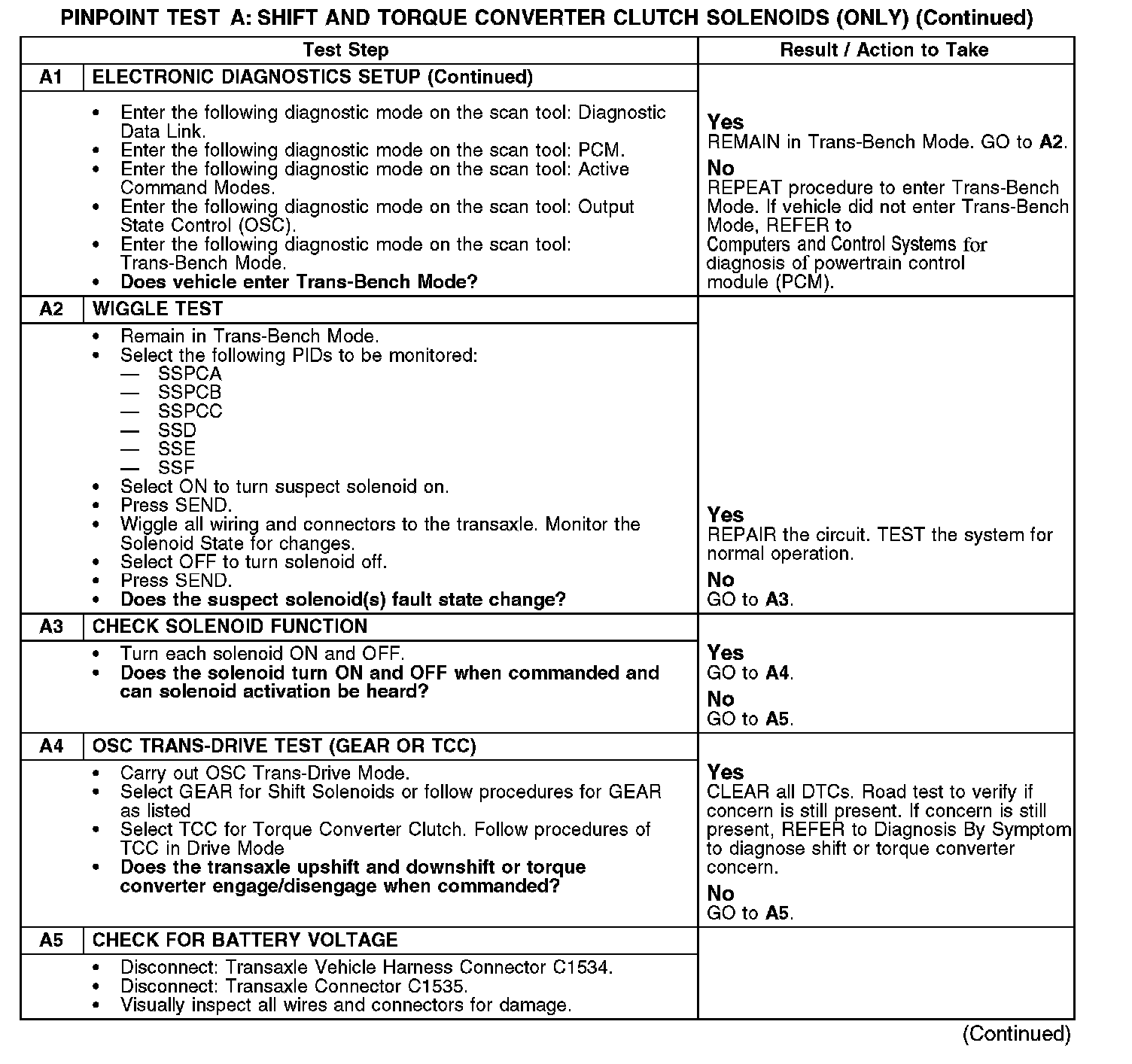

A1:

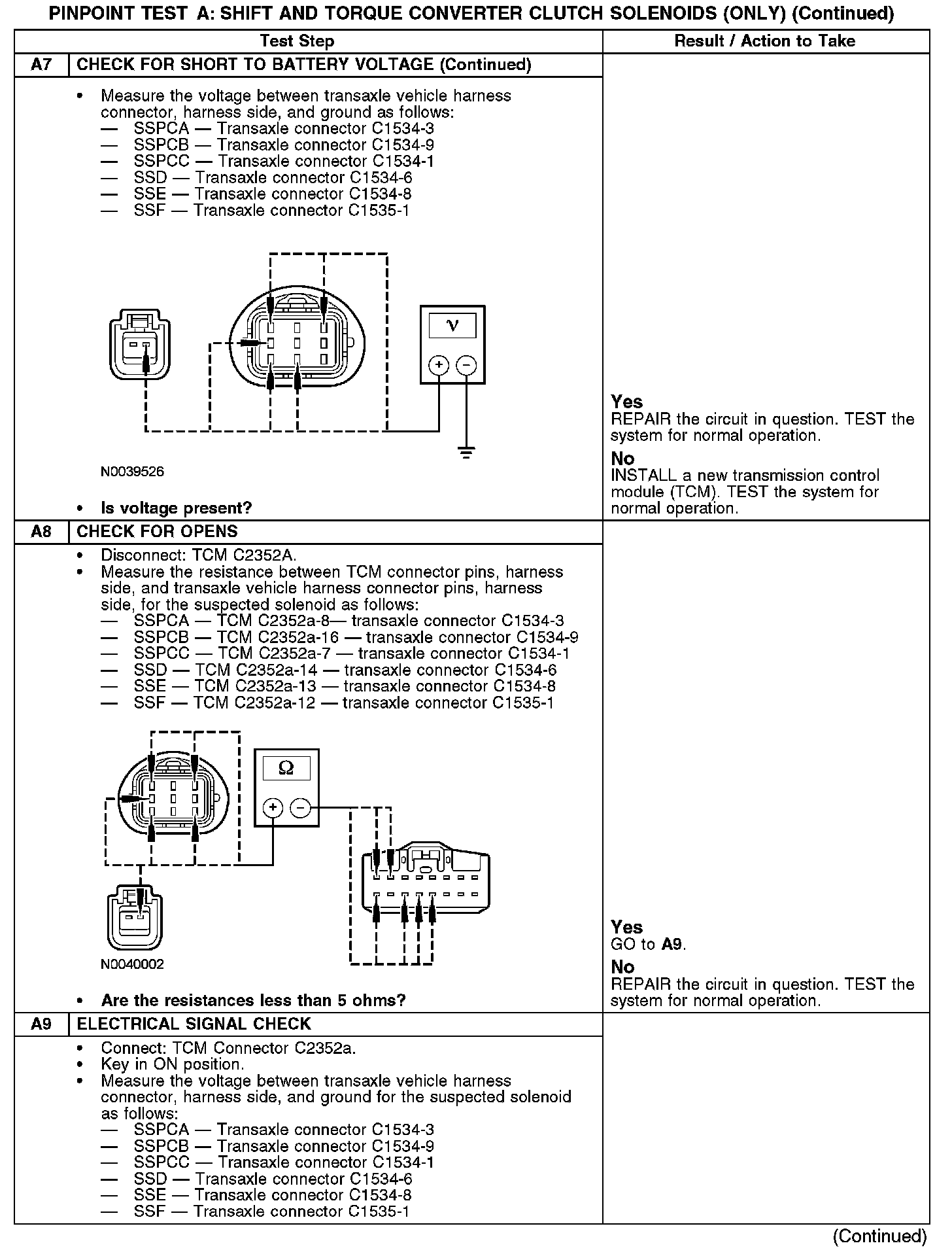

A1-A5:

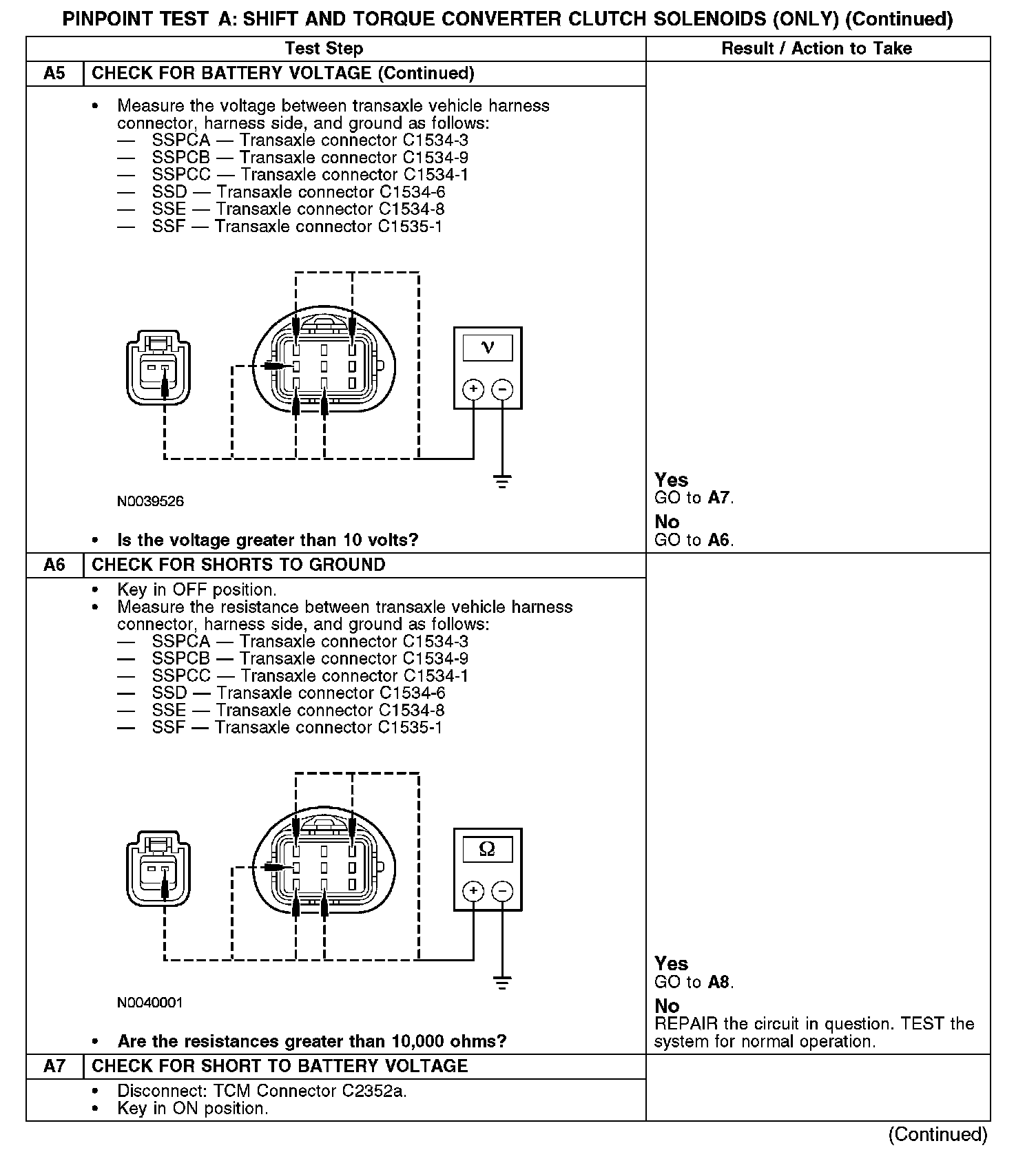

A5-A7:

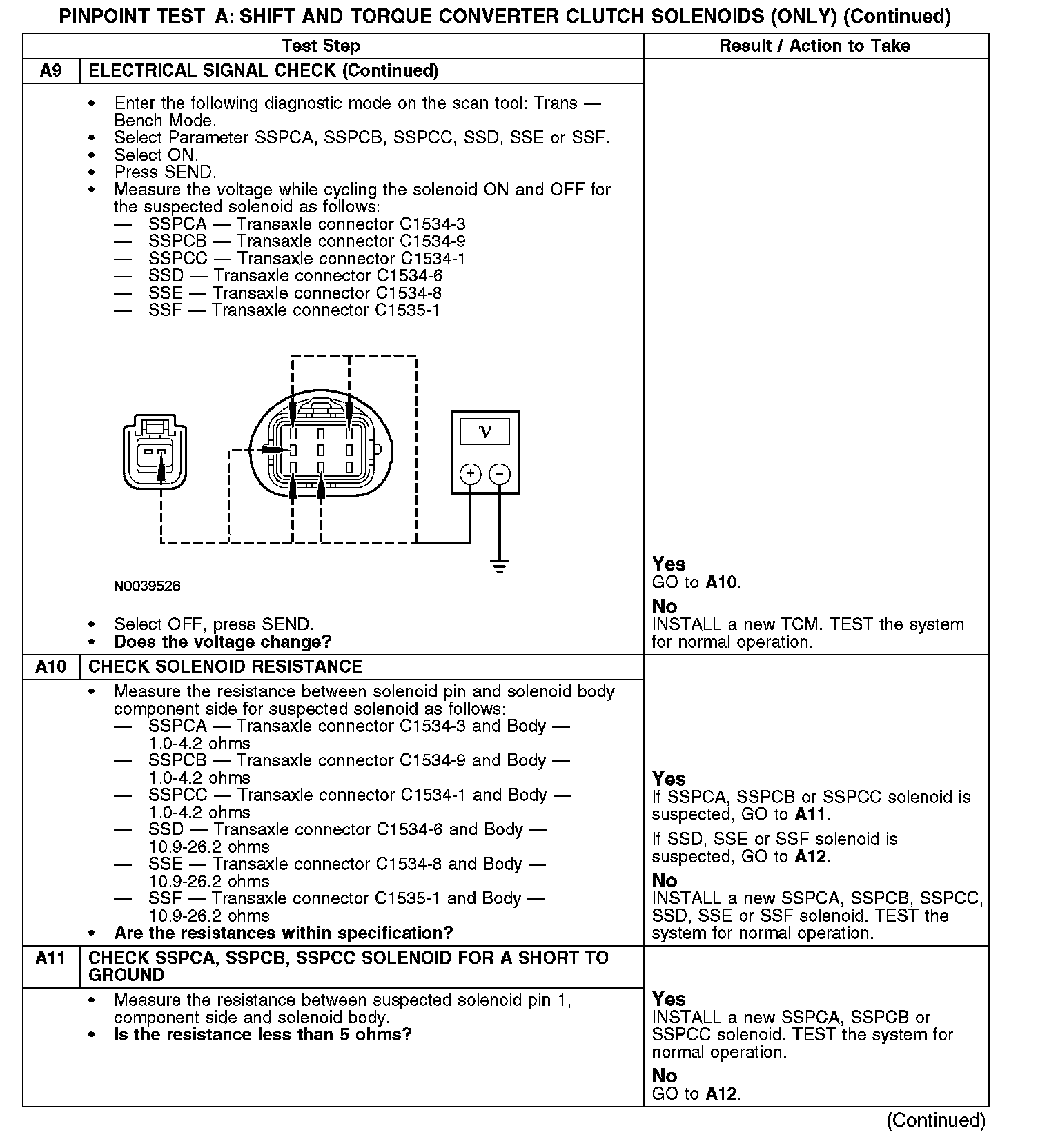

A7-A9:




A9-A11:

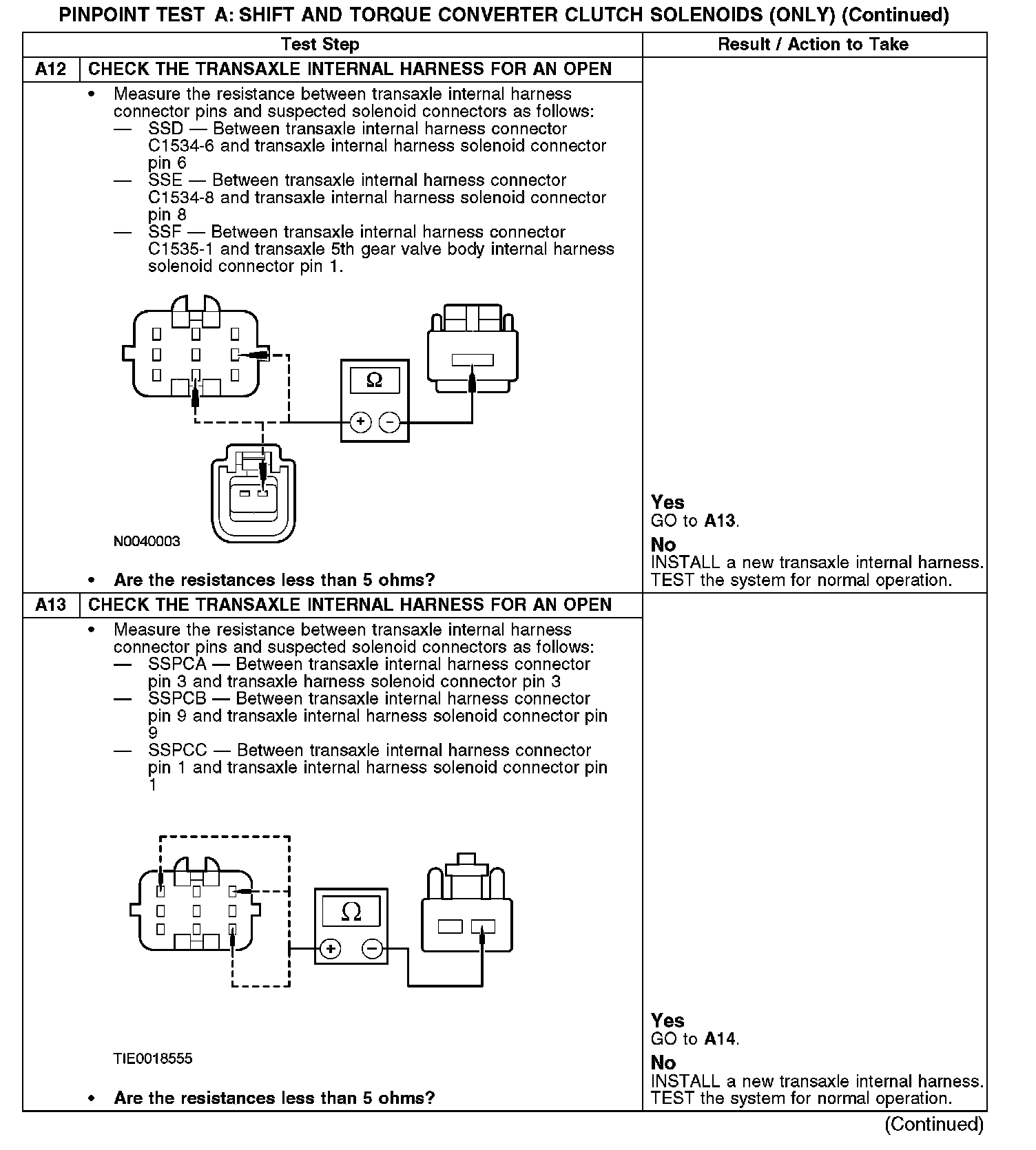

A12-A13:

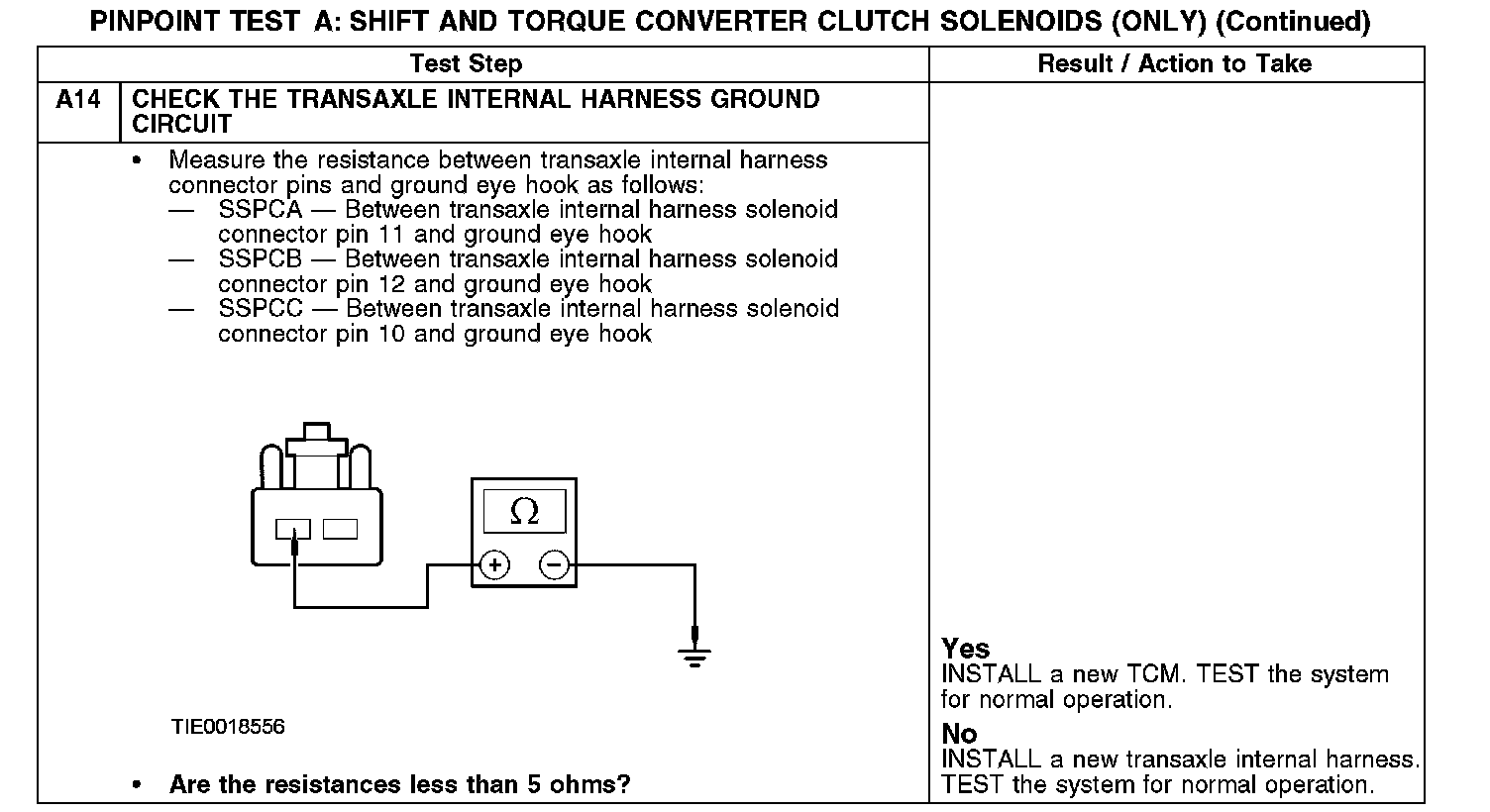

A14:
