Halfshaft Seal - RH

Halfshaft Seal - RH

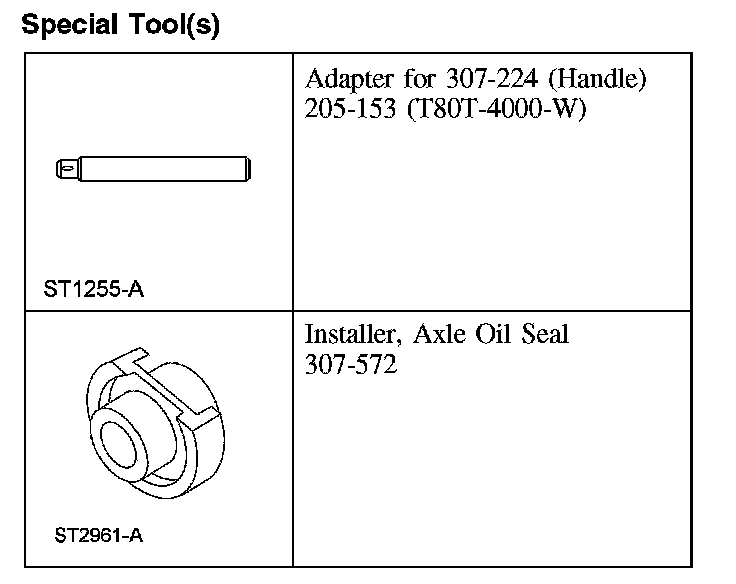

Special Tools:

Removal
1. Remove the RH halfshaft.

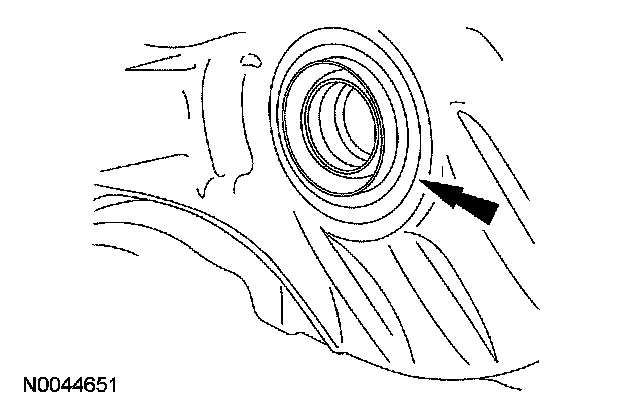

2. CAUTION: Be careful not to damage the case while removing the seal.

Using a suitable tool, remove the RH differential fluid seal.





Installation

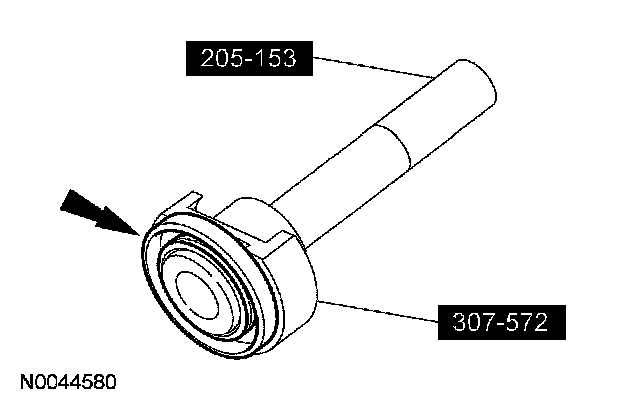

1. Position the new differential fluid seal on the special tools.

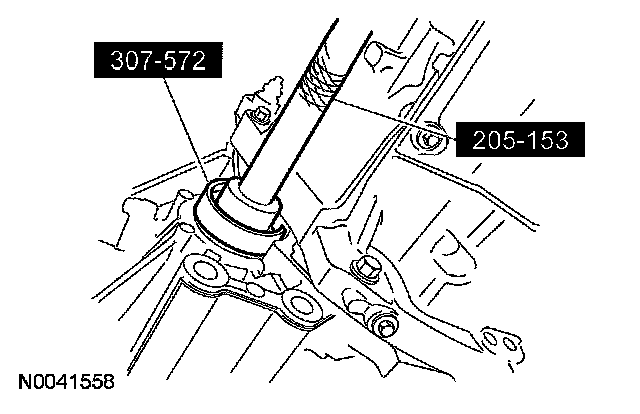

2. Using the special tools, install the halfshaft seal.





3. Install the RH halfshaft.
