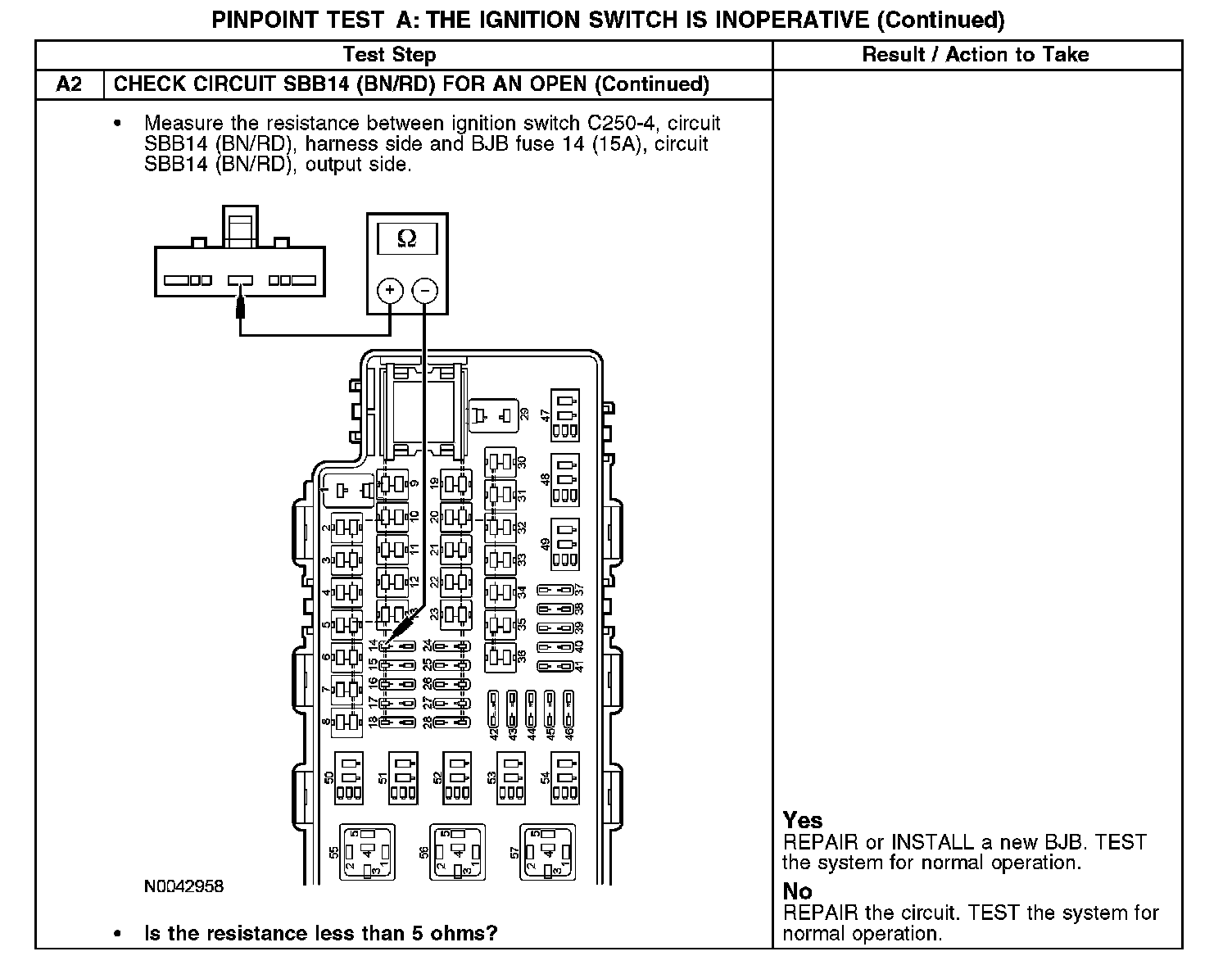

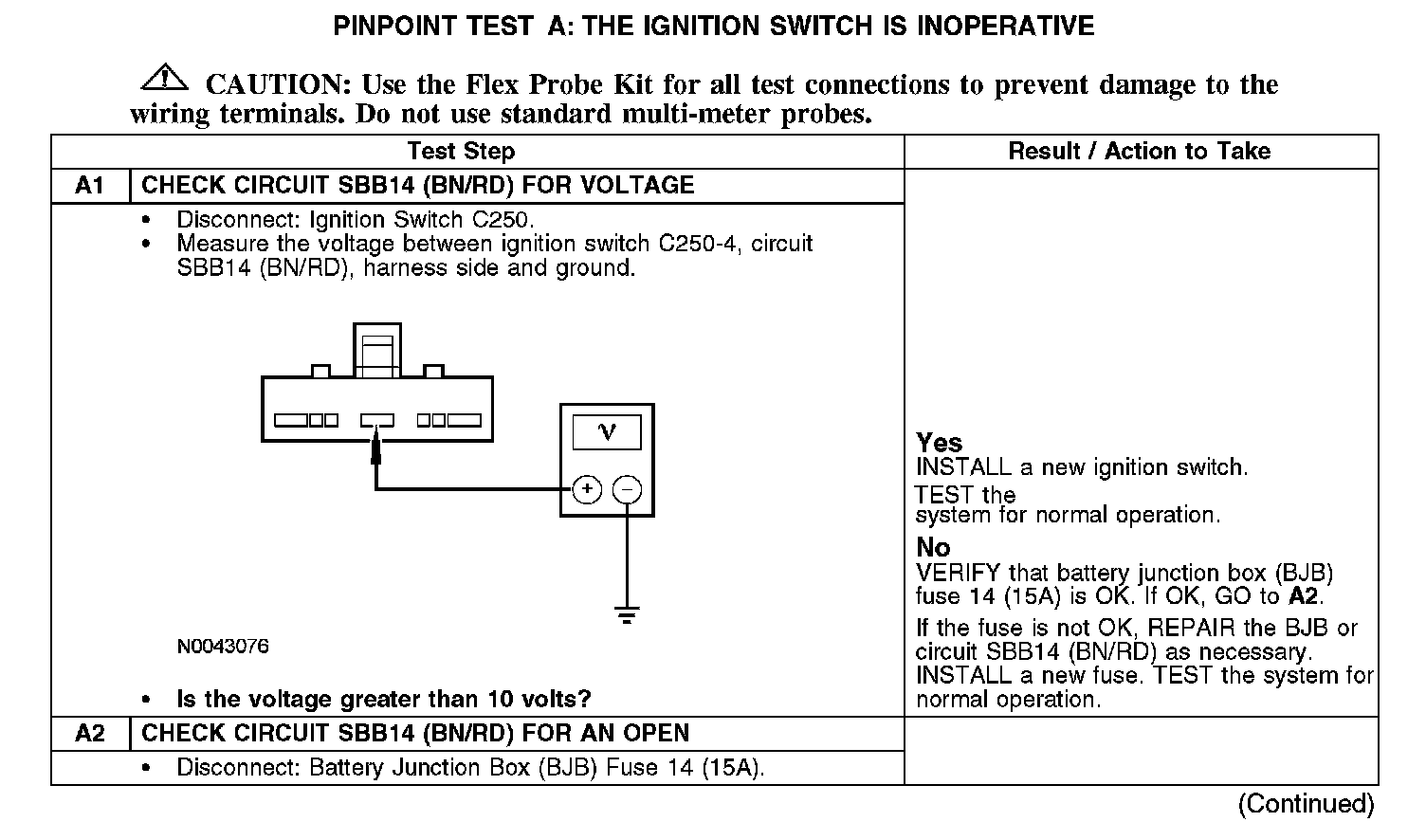

Test A: The Ignition Switch is Inoperative

Test A: The Ignition Switch is Inoperative
Refer to Vehicle/Diagrams

Normal Operation
The ignition switch receives fused battery voltage from battery junction box (BJB) fuse 14 (15A) along circuit SBB 14 (BN/RD). The ignition switch has 4 possible states:
- OFF
- ACC
- RUN
- START

Possible Causes
- Fuse
- Circuit open
- Circuit shorted
- Ignition switch
- BJB
