Home >> Mercury >> 2007 >> Milan AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Diagrams >> Seat Adjust Switch, Passenger Side Front

Seat Adjust Switch, Passenger Side Front

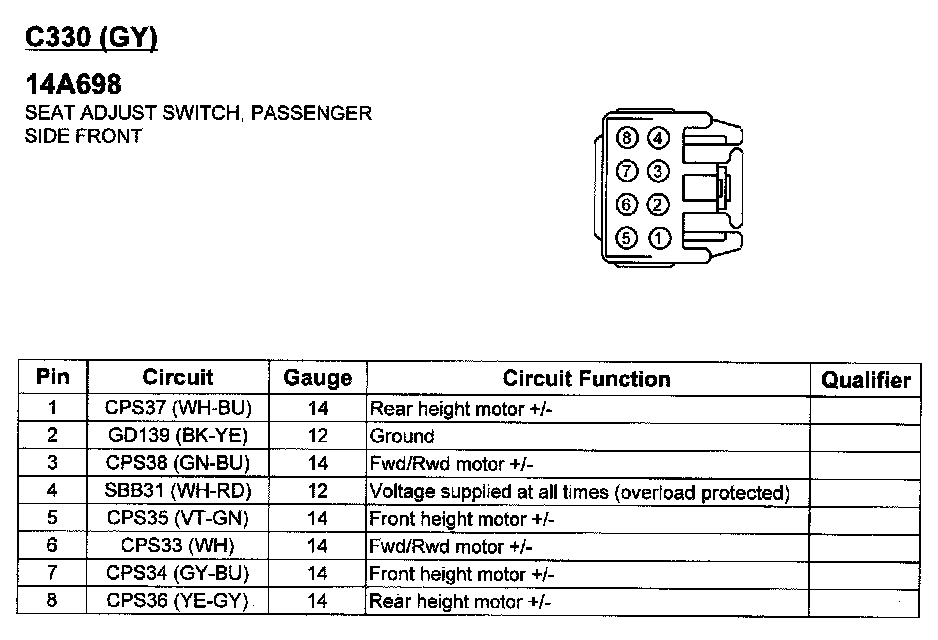

C330:

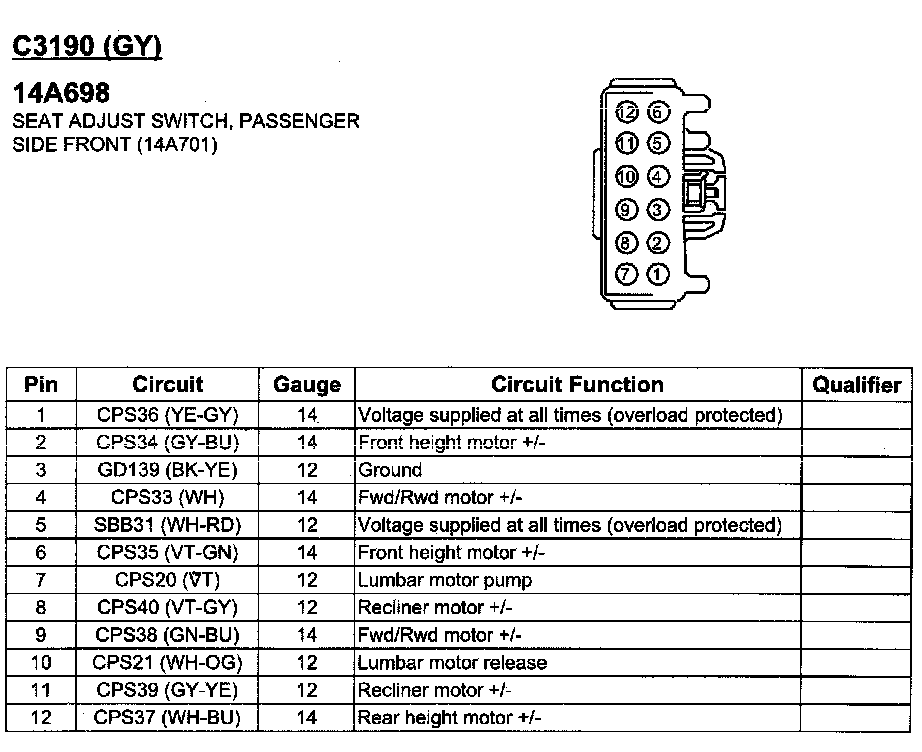

C3190:
