Side Air Bag Module

SIDE AIR BAG MODULE







Removal and Installation

WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- Carry a live side air bag module with the air bag and tear seam pointed away from your body. This will reduce the risk of injury in the event of an accidental deployment.
- Do not set a live side air bag module down on the cover tear seam. This will reduce the risk of injury in the event of an accidental deployment.
- After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
- Side air bag modules with damaged covers must be replaced.
- To reduce the risk of personal injury, do not use any memory saver devices.

NOTE:
- If a side air bag deployment took place, a new side air bag module and bolt must be installed. The side air bag module bracket on the seat back frame should be inspected and replaced if necessary.
- If a seat equipped with a SRS component is being serviced, the SRS must be depowered.
- When replacing the side air bag after deployment, refer to Seats.
- The air bag warning lamp illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system SRS fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.

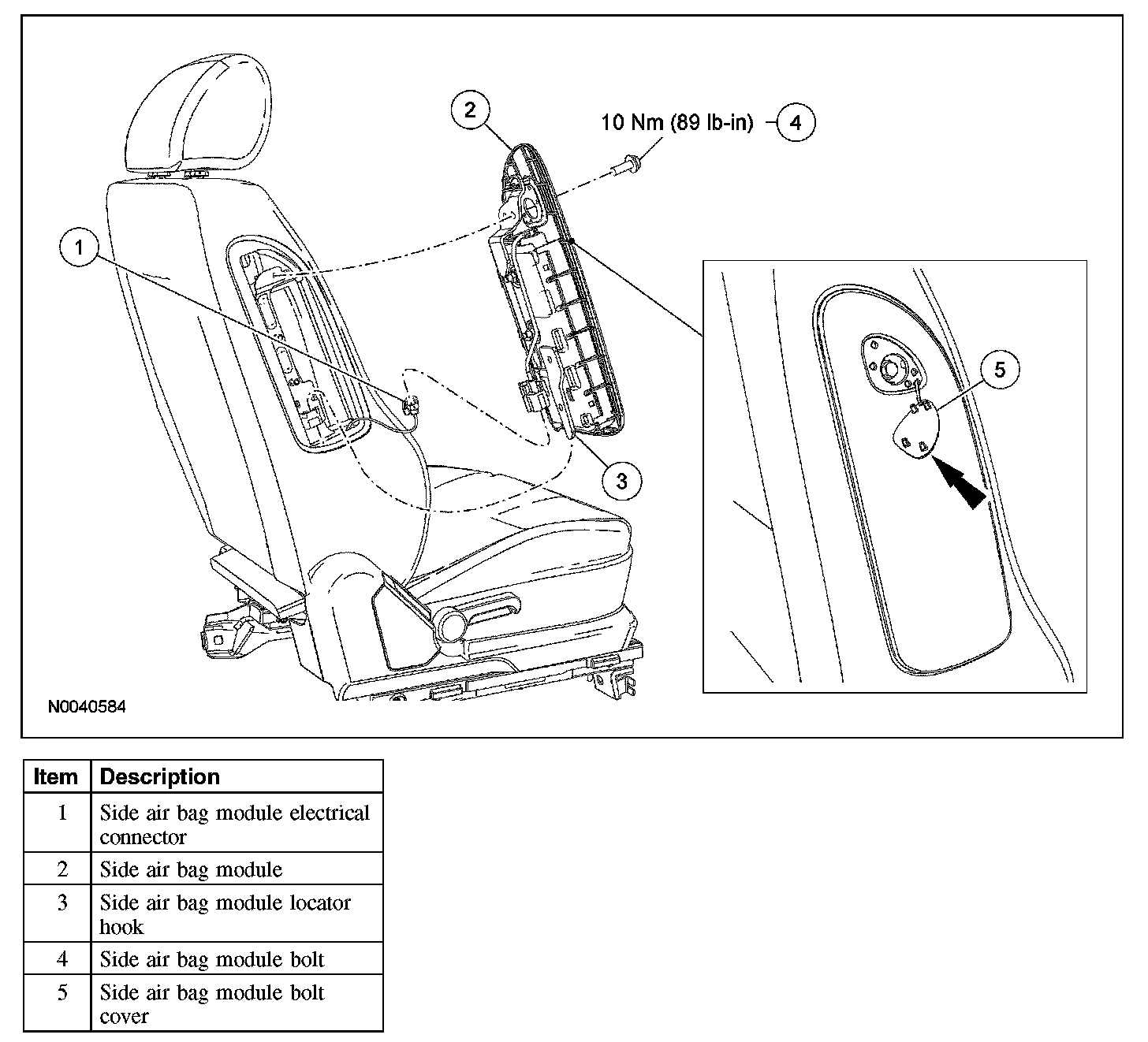

- Passenger side shown, driver similar.

1. Depower the system.
2. Detach the side air bag module bolt cover.

3. NOTE: Note the position of the side air bag module locator hook in the side air bag module bracket (on the seat back frame) for installation.

Remove the bolt and lift up and out, to detach the side air bag module from the seat back.
- To install, tighten to 10 Nm (89 lb-in).

4. Slide and disengage the side air bag module electrical connector locking clip, and then release the tab and disconnect the side air bag module electrical connector.

5. WARNING:
- Inspect the mounting surfaces of the side air bag module for any foreign objects before installing the side air bag module. If any foreign objects are found, remove them. Failure to do so may result in personal injury, in the event of an air bag deployment.
- If the air bag cover has separated or the air bag material has been exposed, install a new side air bag module. Do not attempt to repair the air bag module. Failure to do so may result in personal injury in the event of an air bag deployment.

To install, reverse the removal procedure.

6. Repower the system.
