Home >> Mercury >> 2007 >> Milan AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Navigation Module >> Locations

Navigation Module: Locations

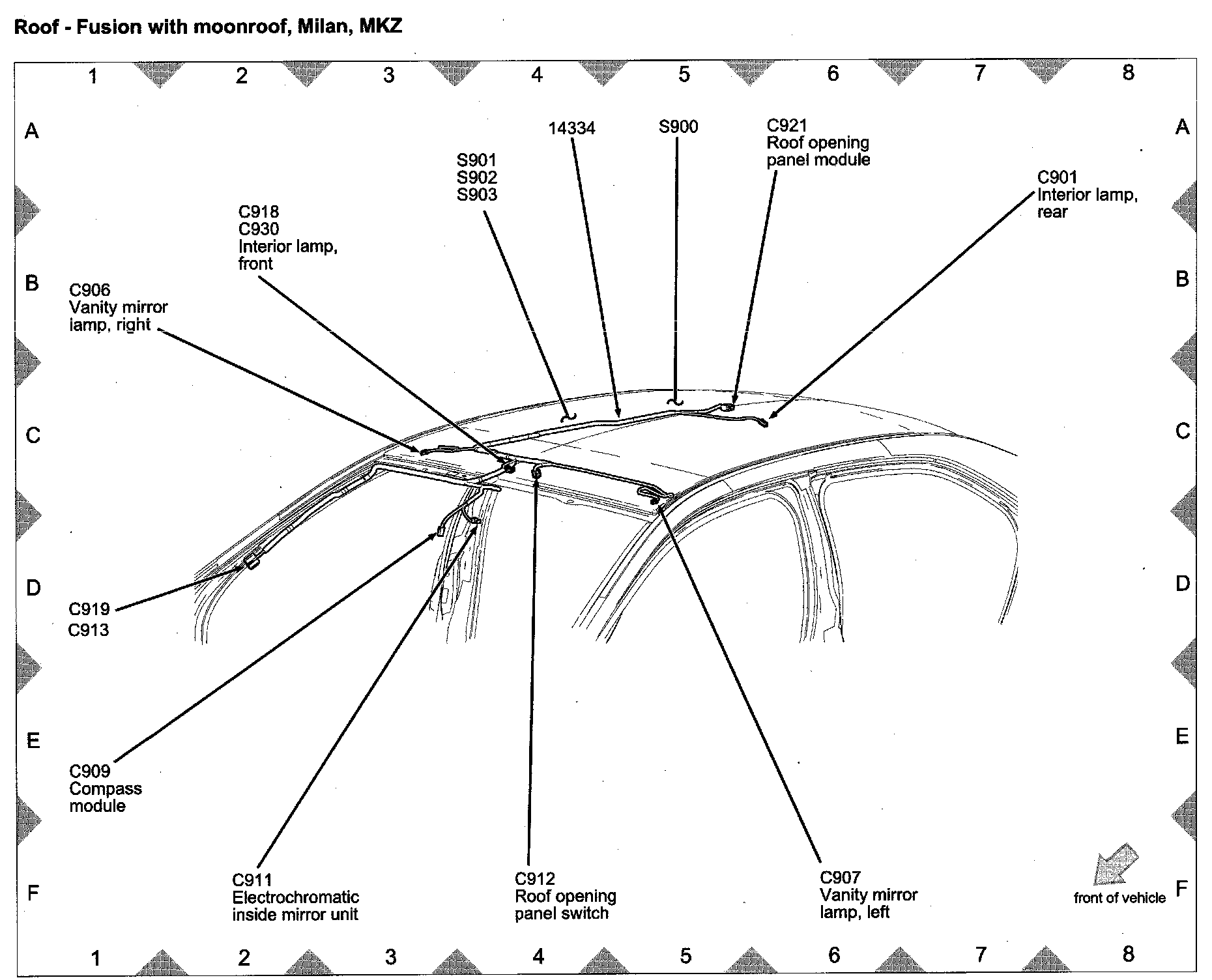

View 151-32 (Roof - Fusion With Moonroof, Milan, MKZ):
