Control Module: Service and Repair

Four Wheel Drive (4WD) Control Module
Removal and Installation

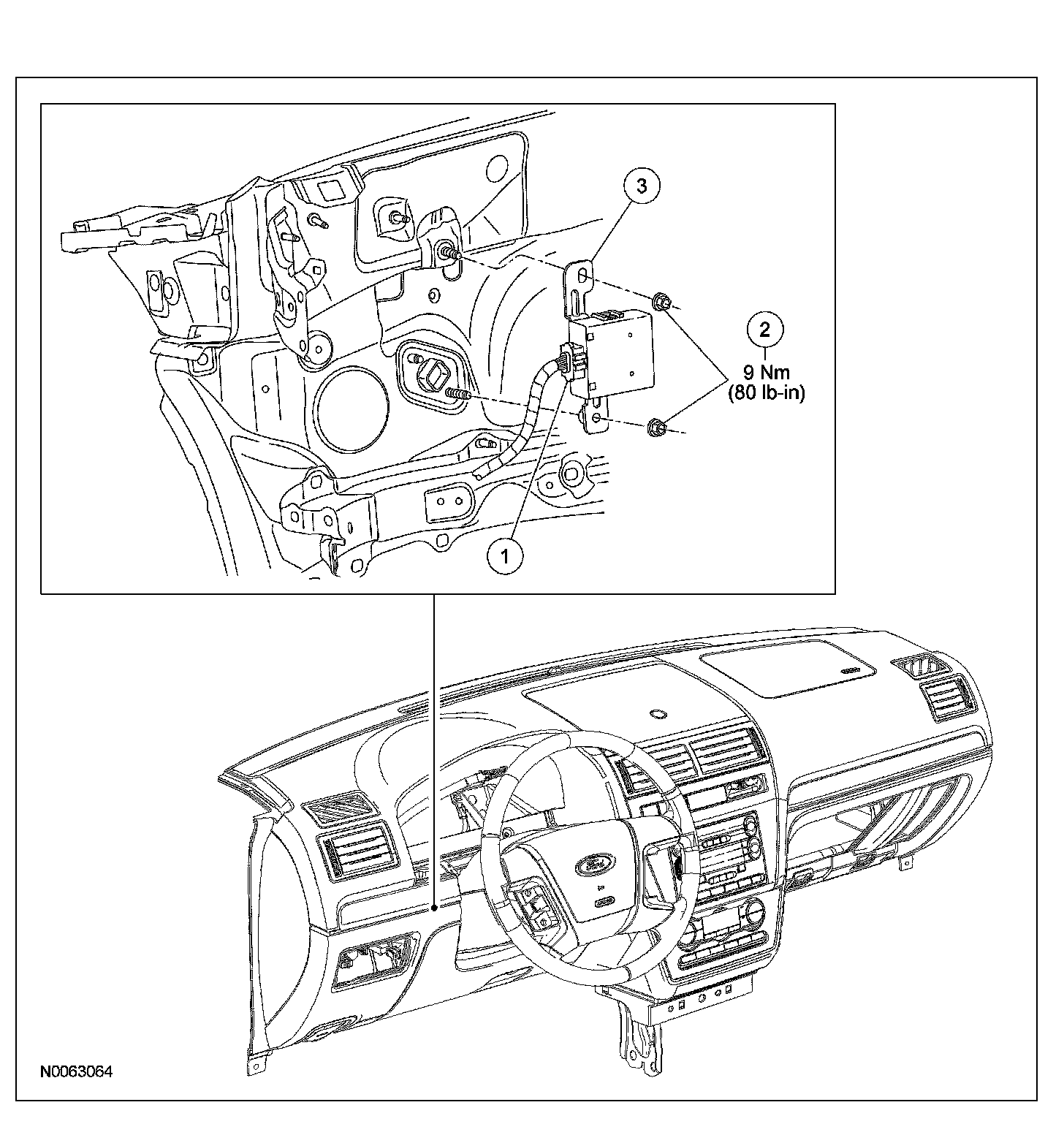

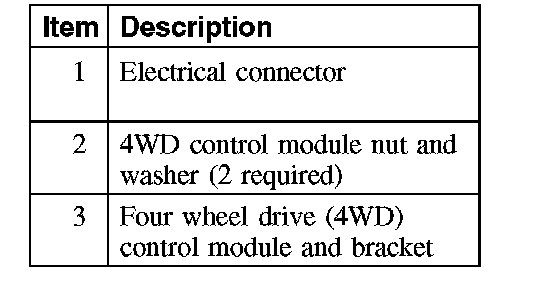

1. From below the LH side instrument panel, disconnect the four wheel drive (4WD) control module harness connector.
2. Remove the 4WD control module nuts.
- To install, tighten to 9 Nm (80 inch lbs.).
3. Remove the 4WD control module and bracket.
4. To install, reverse the removal procedure.
