Home >> Mercury >> 2007 >> Milan AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Relays and Modules - Transmission and Drivetrain >> Relays and Modules - Transfer Case >> Control Module >> Locations >> Active Torque Control Coupling Solenoid

Active Torque Control Coupling Solenoid

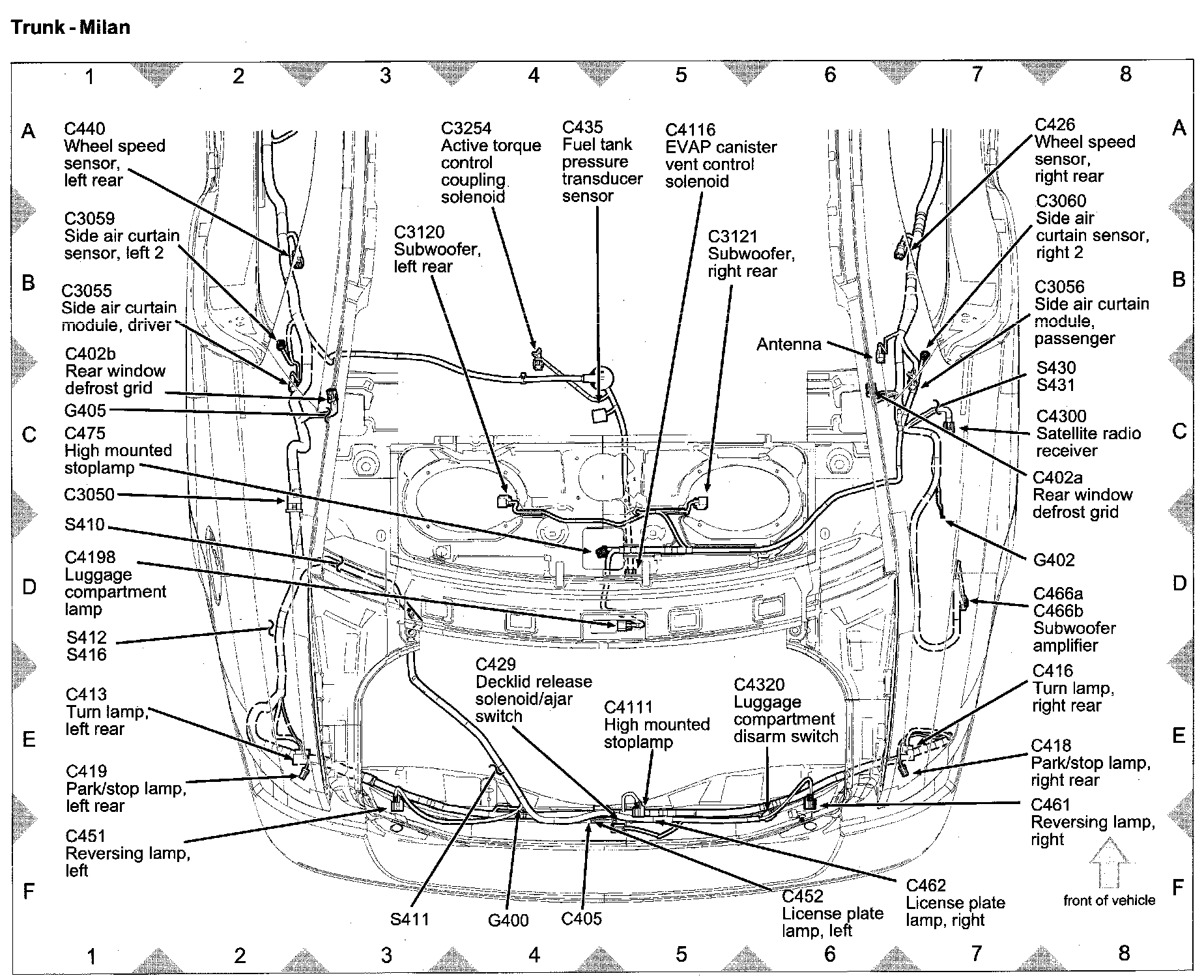

View 151-30 (Trunk - Milan):
