Accelerator Pedal: Service and Repair

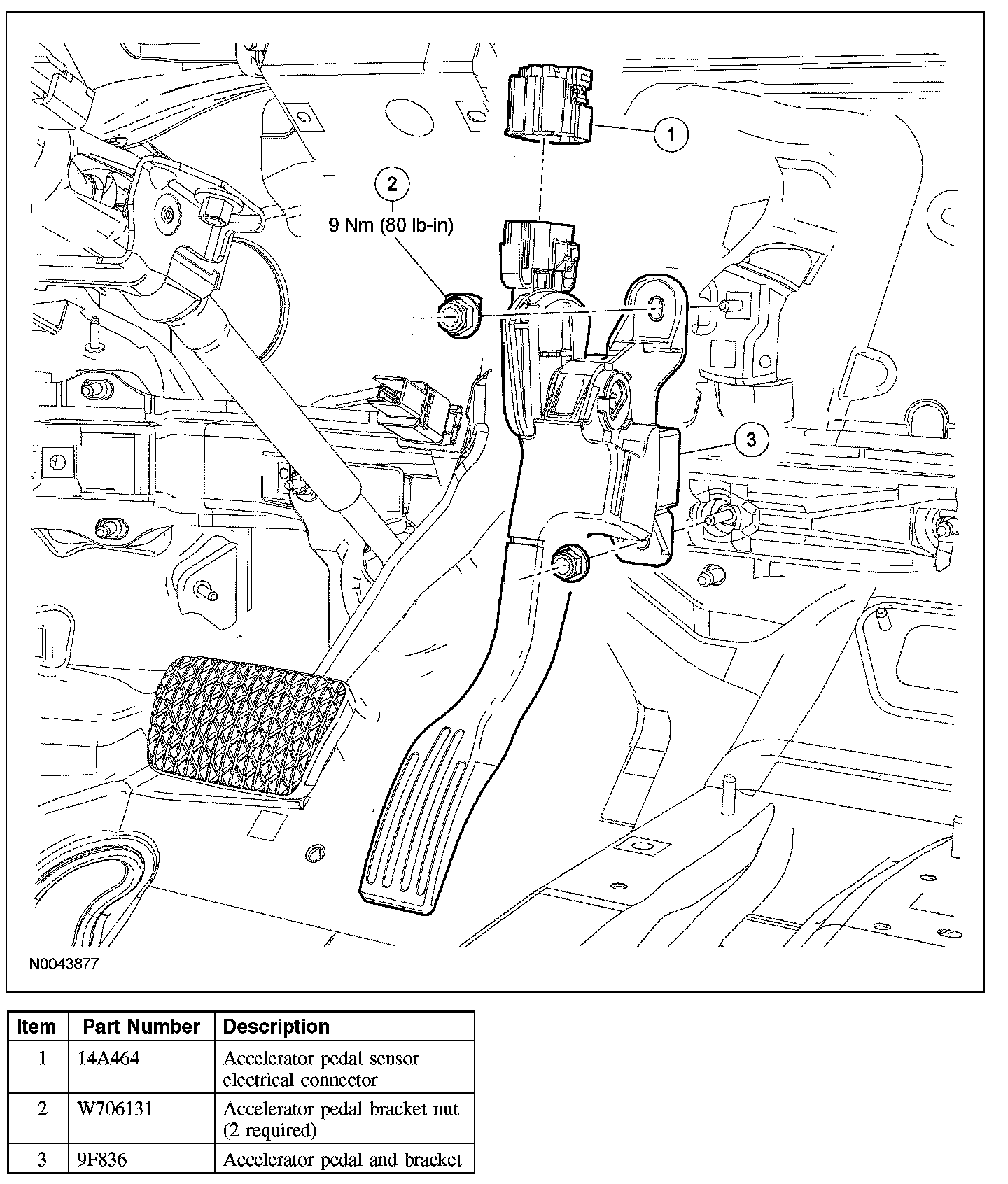

ACCELERATOR PEDAL AND BRACKET







Removal and Installation
1. Disconnect the accelerator pedal sensor electrical connector.
2. Remove the 2 nuts and the accelerator pedal and bracket.
3. To install, reverse the removal procedure.
