Fuel Vapor Tube Assembly - Front Wheel Drive (FWD)

FUEL VAPOR TUBE ASSEMBLY - FRONT WHEEL DRIVE (FWD)

Part 1:

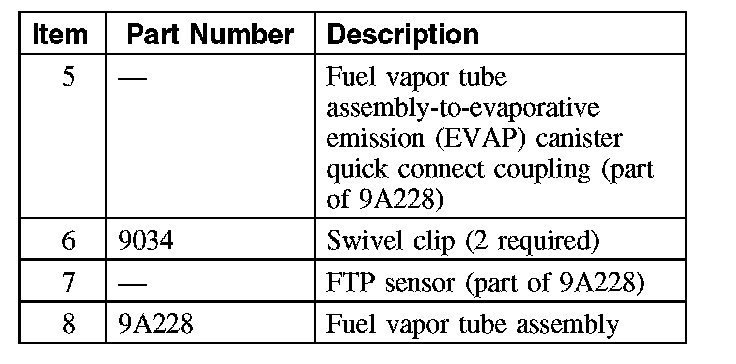

Part 2:

Removal and Installation

WARNING: The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, which can cause a fire or explosion if fuel vapor or liquefied fuel are present in the area. Failure to follow these instructions may result in personal injury.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.

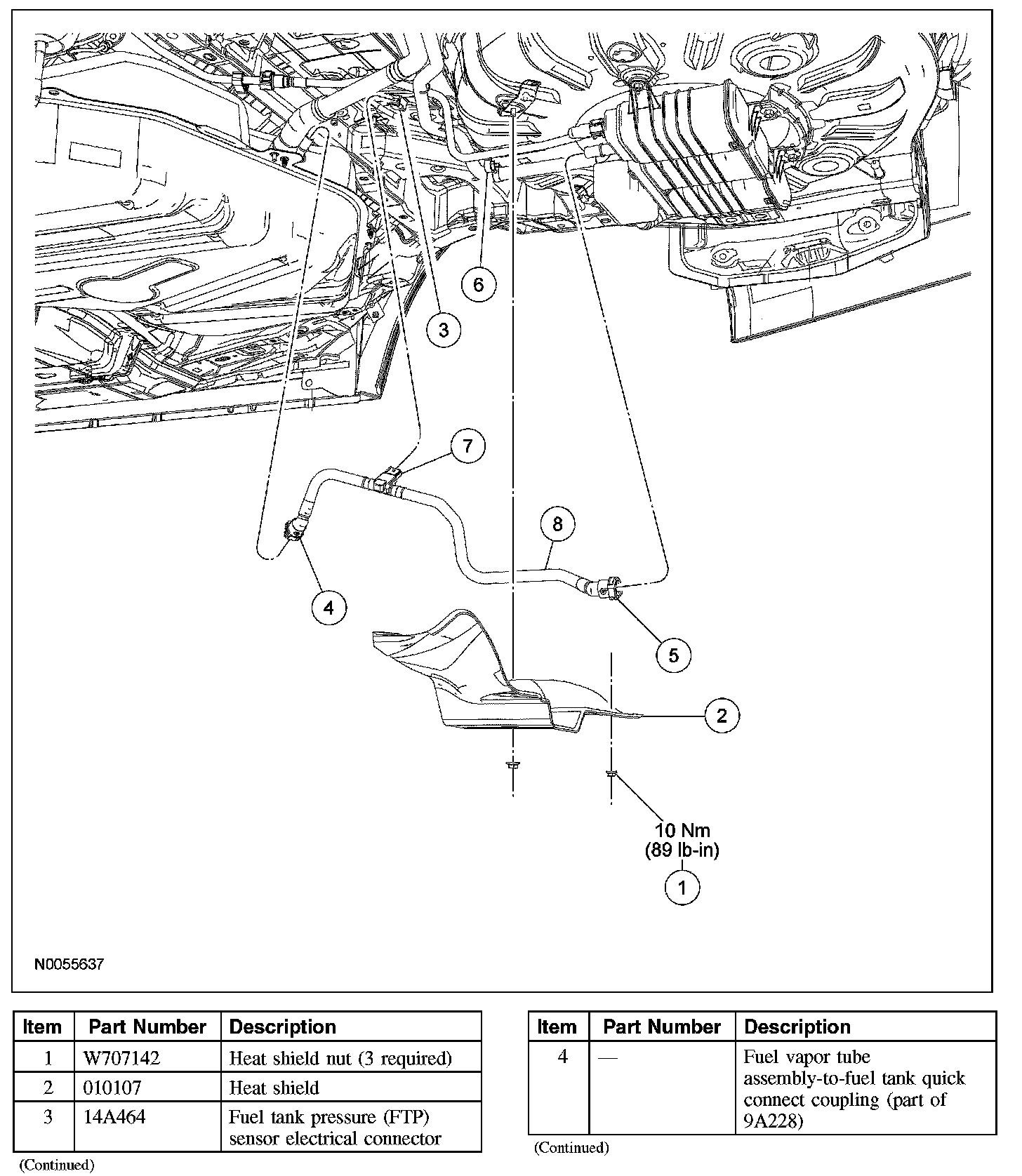

3. Remove the 3 heat shield nuts and the heat shield.
- To install, tighten to 10 Nm (89 lb-in).

4. Disconnect the fuel tank pressure (FTP) sensor electrical connector.
5. Disconnect the fuel vapor tube assembly-to-fuel tank quick connect coupling.
6. Disconnect the fuel vapor tube assembly-to-evaporative emission (EVAP) canister quick connect coupling.
7. Release the 2 swivel clips and remove the fuel vapor tube assembly.
8. To install, reverse the removal procedure.
- Carry out a leak test. Testing and Inspection
- Carry out the evaporative emission repair verification drive cycle.
