Evaporative Emission Control Canister: Service and Repair

EVAPORATIVE EMISSION CANISTER

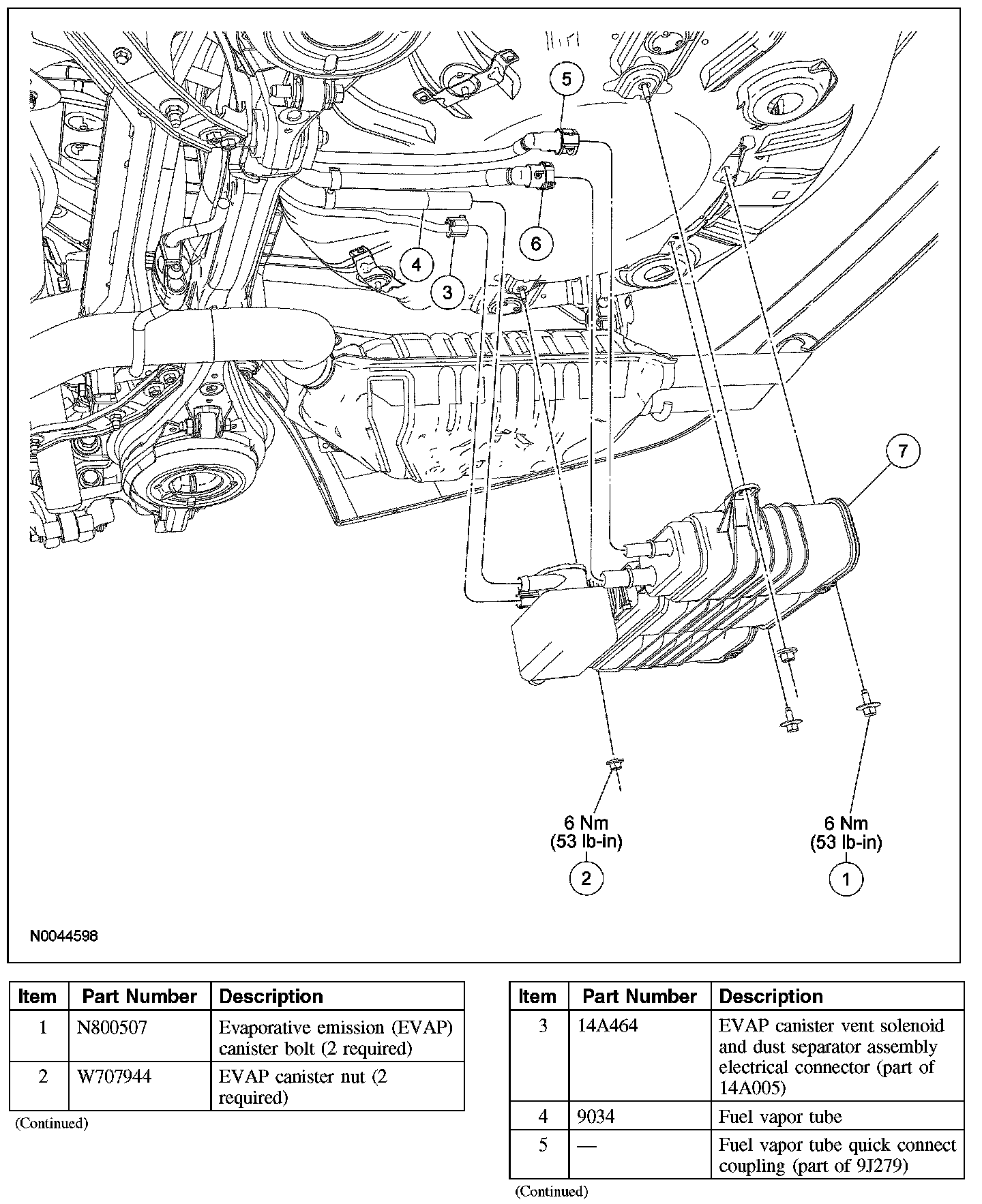

Part 1:

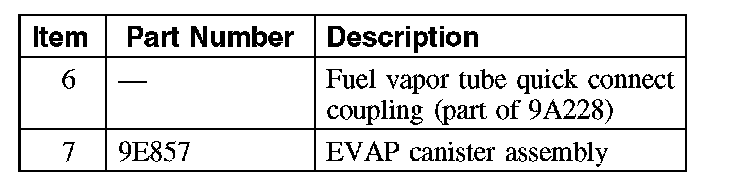

Part 2:

Removal and Installation

WARNING: The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, which can cause a fire or explosion if fuel vapor or liquefied fuel are present in the area. Failure to follow these instructions can result in personal injury.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Disconnect the evaporative emission (EVAP) canister vent solenoid electrical connector.
4. Disconnect the vapor tube-to-dust separator.
5. Disconnect the 2 vapor tube-to-EVAP canister assembly quick connect couplings.
6. Remove the 2 nuts, 2 bolts and the EVAP canister assembly.
- To install, tighten to 6 Nm (53 lb-in).

7. To install, reverse the removal procedure.
- Carry out the evaporative emission system leak test. Testing and Inspection
- Carry out the evaporative emission repair verification drive cycle.
