Rear

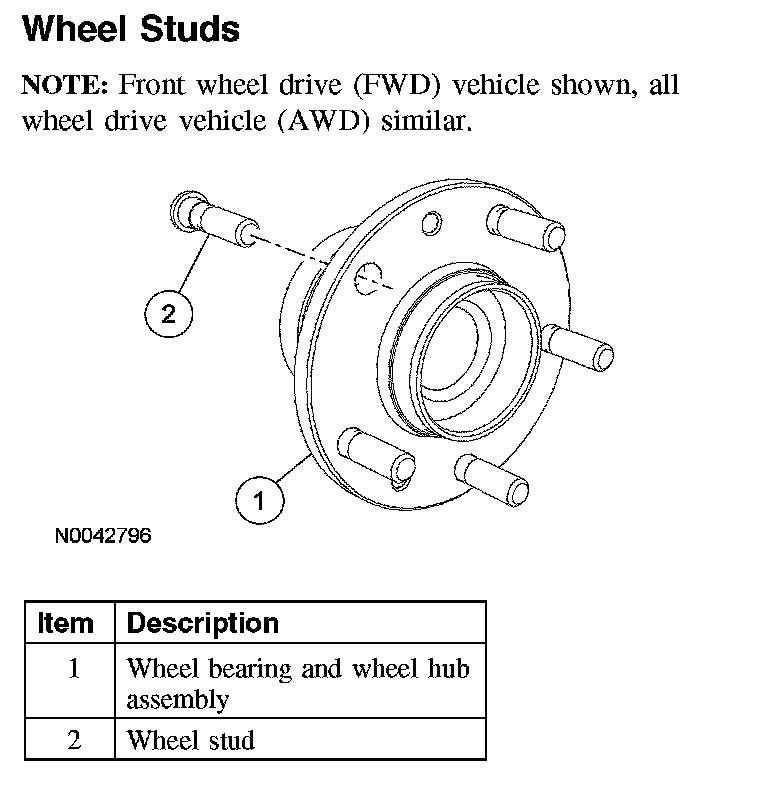

Wheel Studs

NOTE: Front wheel drive (FWD) vehicle shown, all wheel drive vehicle (AWD) similar.

Note; Front Wheel Drive (FWD) Vehicle Shown, All Wheel Drive Vehicle (AWD) Similar.:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the wheel bearing and wheel hub.
3. Using a press, remove the wheel stud from the wheel hub.

Installation
1. Position the new wheel stud in the wheel hub, aligning the serrations in the wheel hub flange made by the original wheel stud.
2. Using a press, install the wheel stud.
3. Install the wheel bearing and wheel hub.
