Test S: An Individual Fog Lamp Is Inoperative

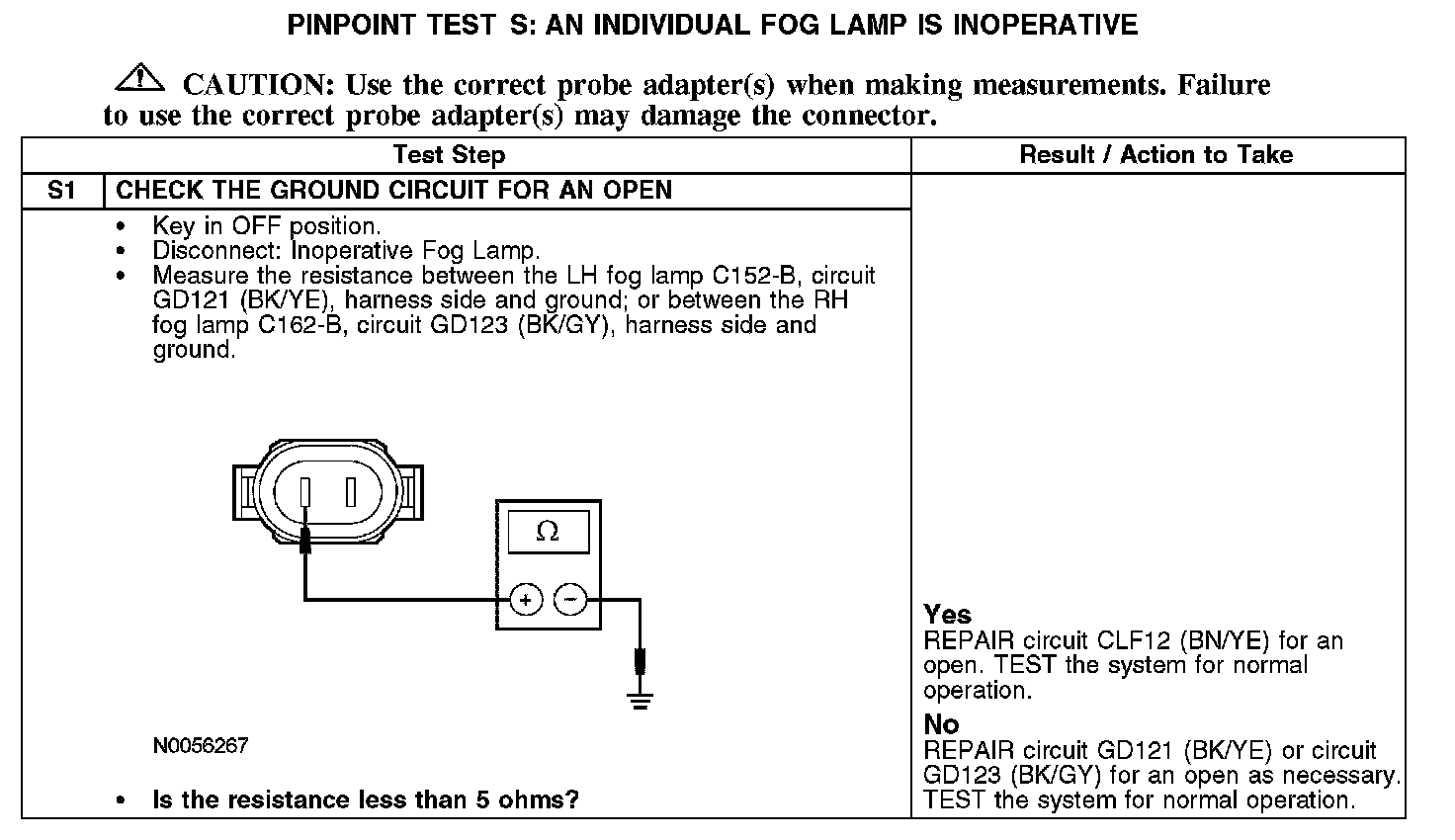

PINPOINT TEST S: AN INDIVIDUAL FOG LAMP IS INOPERATIVES1:
Normal Operation
When the fog lamp relay is energized, voltage is routed through circuit CLF12 (BN/YE) to the fog lamps. Ground is provided on circuits GD121 (BK/YE) and GD123 (BK/GY) to the LH and RH fog lamps, respectively.
Possible Causes
- Circuit CLF12 (BN/YE) open
- Circuit GD121 (BK/YE) open
- Circuit GD123 (BK/GY) open
