Test C: The Turn Signal On Warning Chime Is Inoperative

PINPOINT TEST C: THE TURN SIGNAL ON WARNING CHIME IS INOPERATIVE

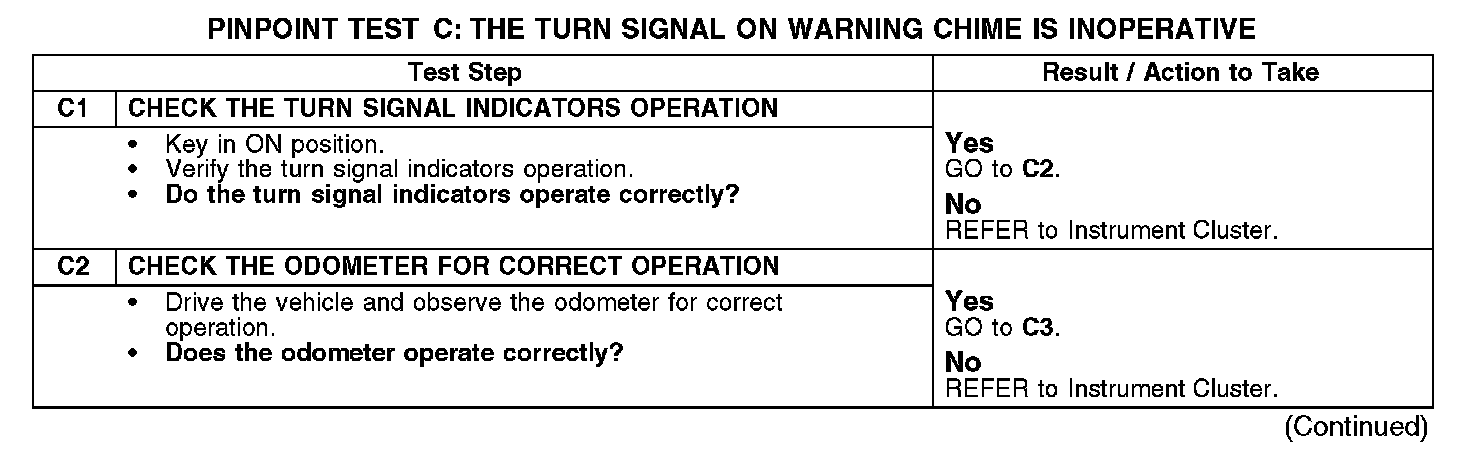

C1-C2:

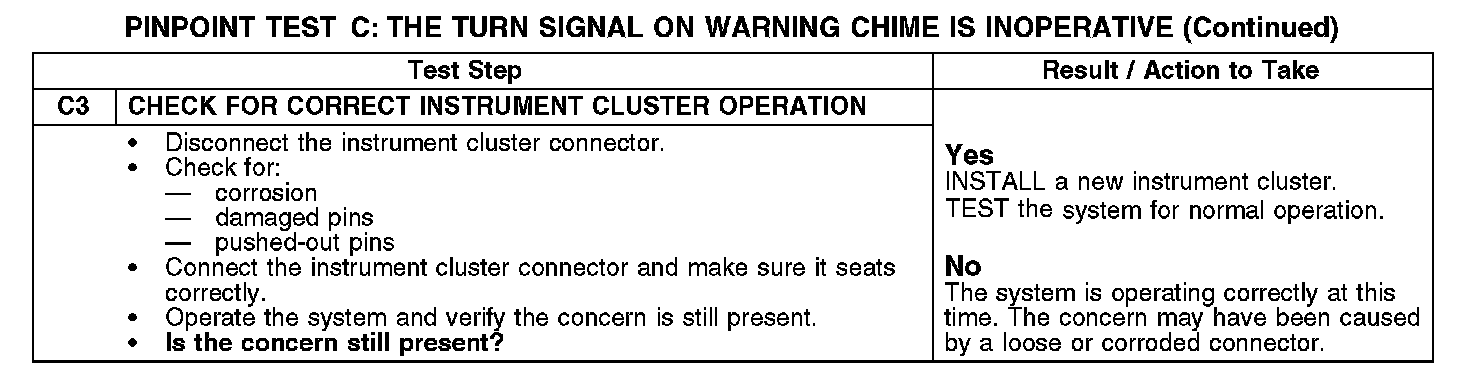

C3:

Normal Operation
The turn signal on warning chime sounds when the vehicle travels more than 3.2 km (2.0 miles) with the turn signal on. The smart junction box (SJB) communicates the turn signal switch status to the instrument cluster over the controller area network (CAN). The powertrain control module (PCM) communicates the odometer count data to the instrument cluster over the CAN.

Possible Causes
- Instrument cluster
