Home >> Mercury >> 2007 >> Milan AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Temperature Sensor - Evaporator Discharge

Temperature Sensor - Evaporator Discharge

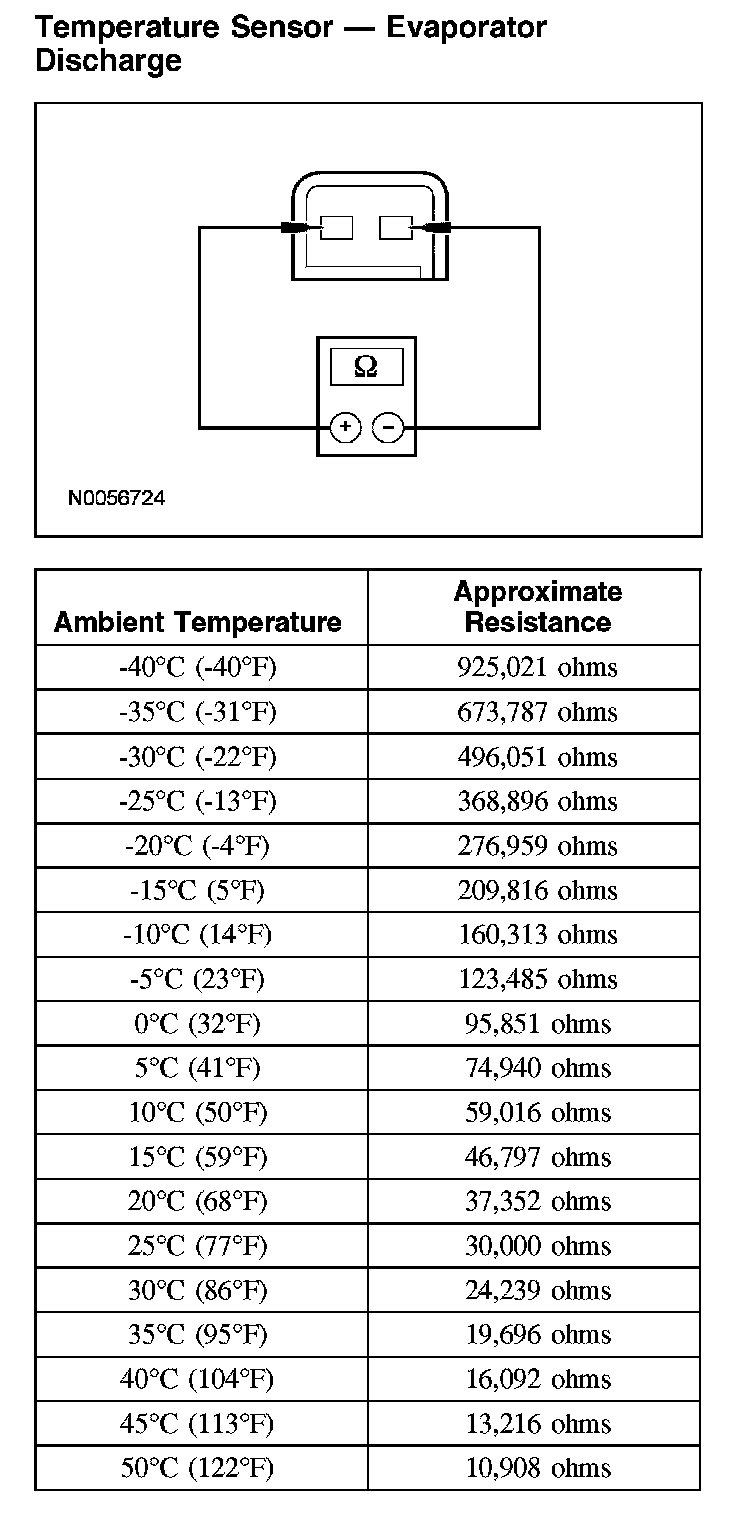

Temperature Sensor - Evaporator Discharge (Part 1):

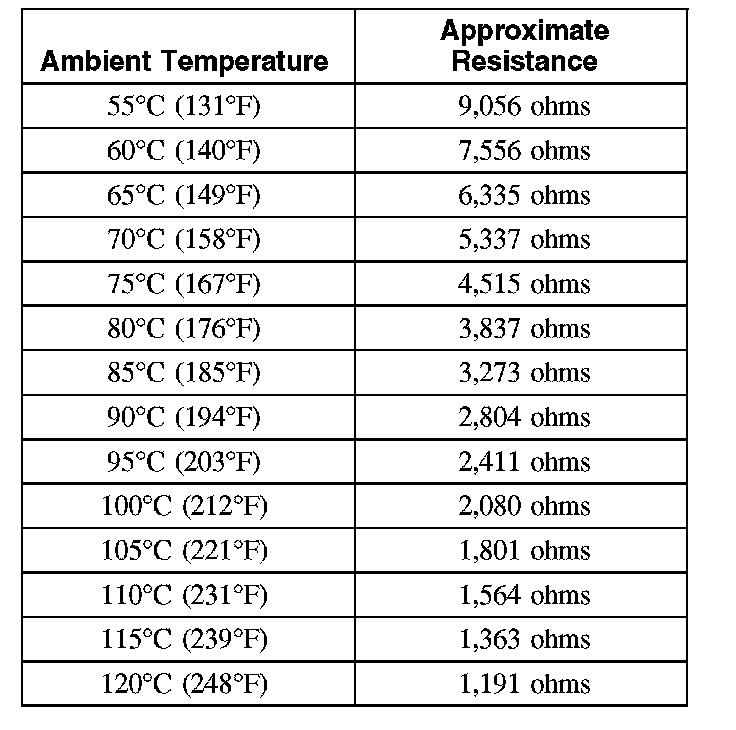

Temperature Sensor - Evaporator Discharge (Part 2):
