Home >> Mercury >> 2007 >> Milan AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Sensors and Switches - HVAC >> Blower Motor Switch >> Service and Repair >> Blower Motor Switch

Blower Motor Switch

BLOWER MOTOR SWITCH

Removal and Installation
1. Remove the climate control assembly.
2. Pull and remove the blower motor switch knob.

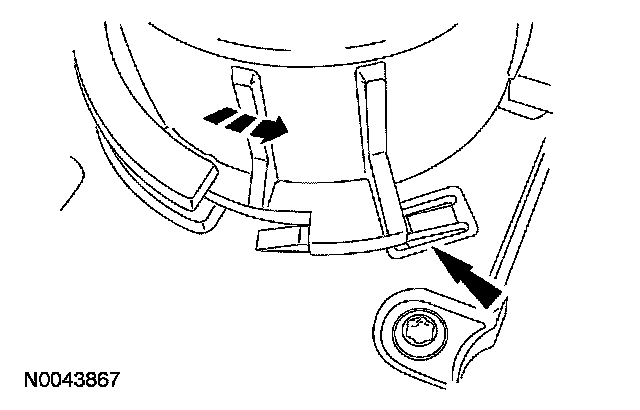

3. Depress the tab and rotate the blower counterclockwise to remove.
4. To install, reverse the removal procedure.
