Front Crankshaft Seal: Service and Repair

Crankshaft Front Seal

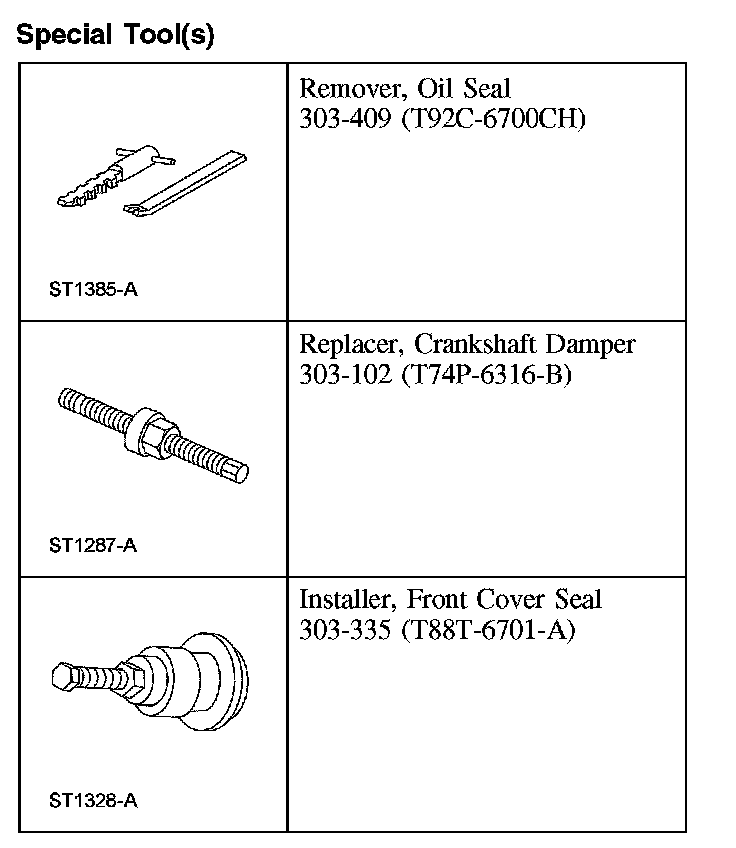

Special Tool(s):

Material:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the crankshaft pulley.
3. Using the special tool, remove and discard the crankshaft front seal.





Installation

1. NOTE: Clean all sealing surfaces with metal surface cleaner.

Apply clean engine oil to the seal lip and seal bore before installing the seal.
2. Using the special tools, install a new crankshaft front seal.





3. Install the crankshaft pulley.
