Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

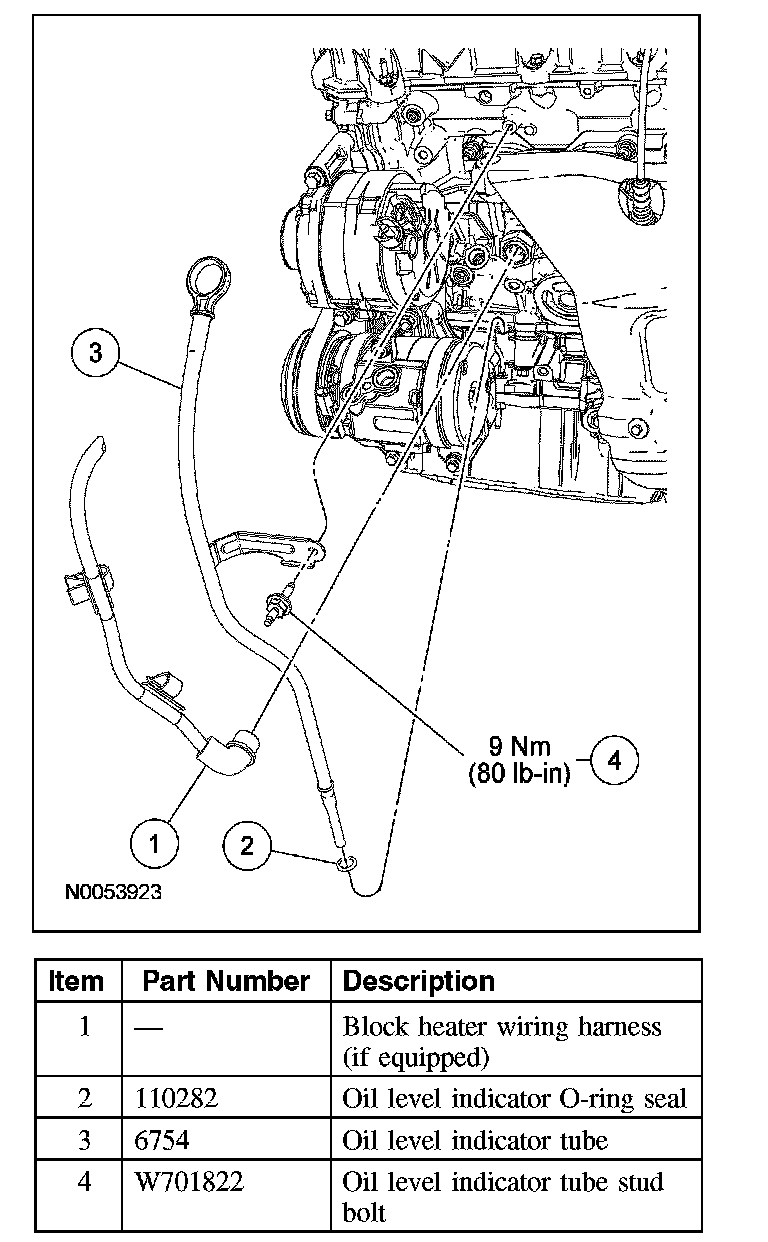

Oil Level Indicator and Tube

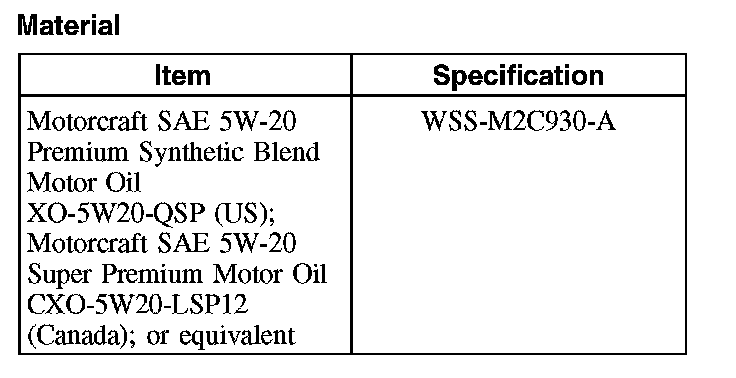

Material:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the oil level indicator.
3. Remove the oil pressure sender.
4. If equipped, disconnect the block heater electrical connector and wiring harness retainers.
5. Remove the stud bolt and the oil level indicator tube.
^ Discard the O-ring seal.
^ To install, tighten to 9 Nm (80 inch lbs.).

6. NOTE: Install a new O-ring seal and lubricate with clean engine oil.

To install, reverse the removal procedure.
