Coolant Reservoir: Service and Repair

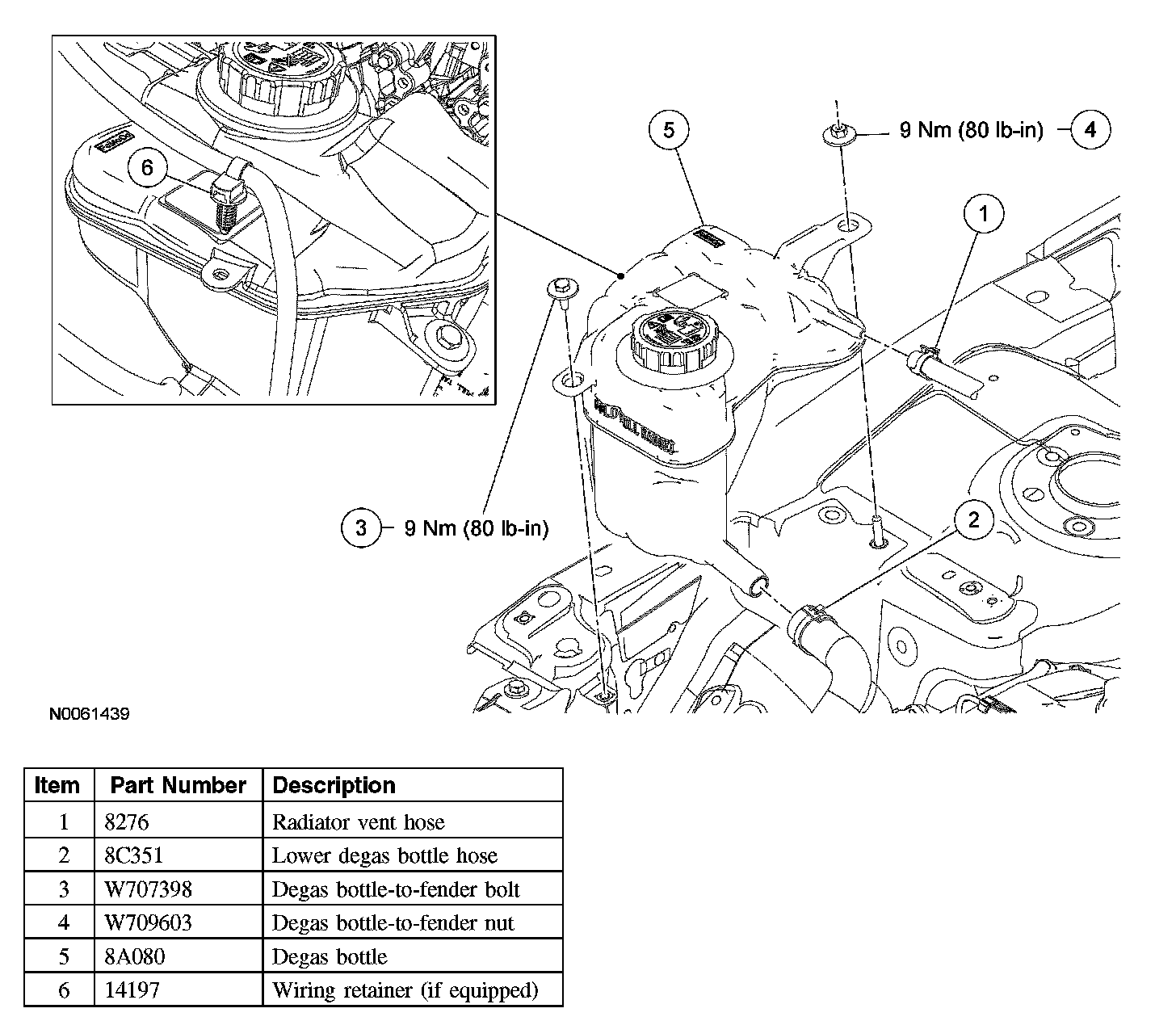

Degas Bottle





Removal and Installation
1. Drain the cooling system.
2. If equipped, detach the wiring retainer from the degas bottle.
3. Disconnect the radiator vent hose and position aside.
4. Disconnect the lower degas bottle hose and position aside.
5. Remove the nut, bolt and the degas bottle.
^ To install, tighten to 9 Nm (80 inch lbs.).

6. To install, reverse the removal procedure.
7. Fill and bleed the cooling system.
