Home >> Mercury >> 2007 >> Milan AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Amplifier, Sound System >> Amplifier >> RH Side

RH Side

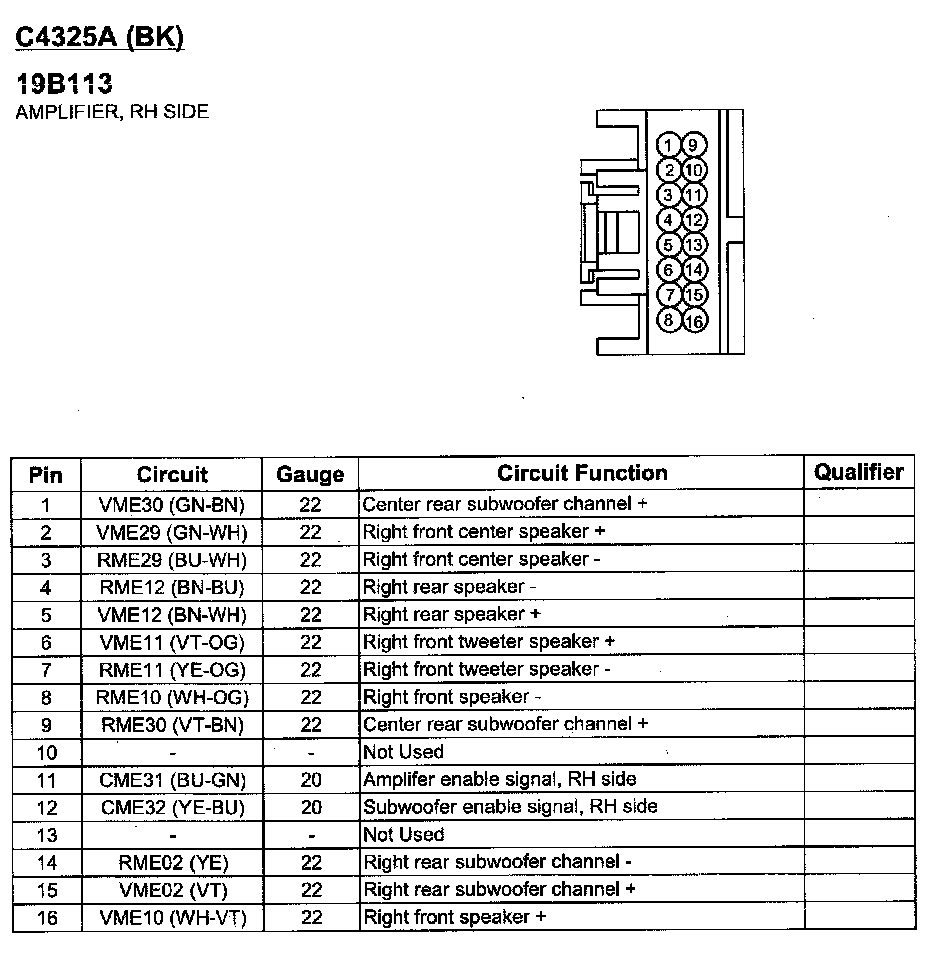

C4325A:

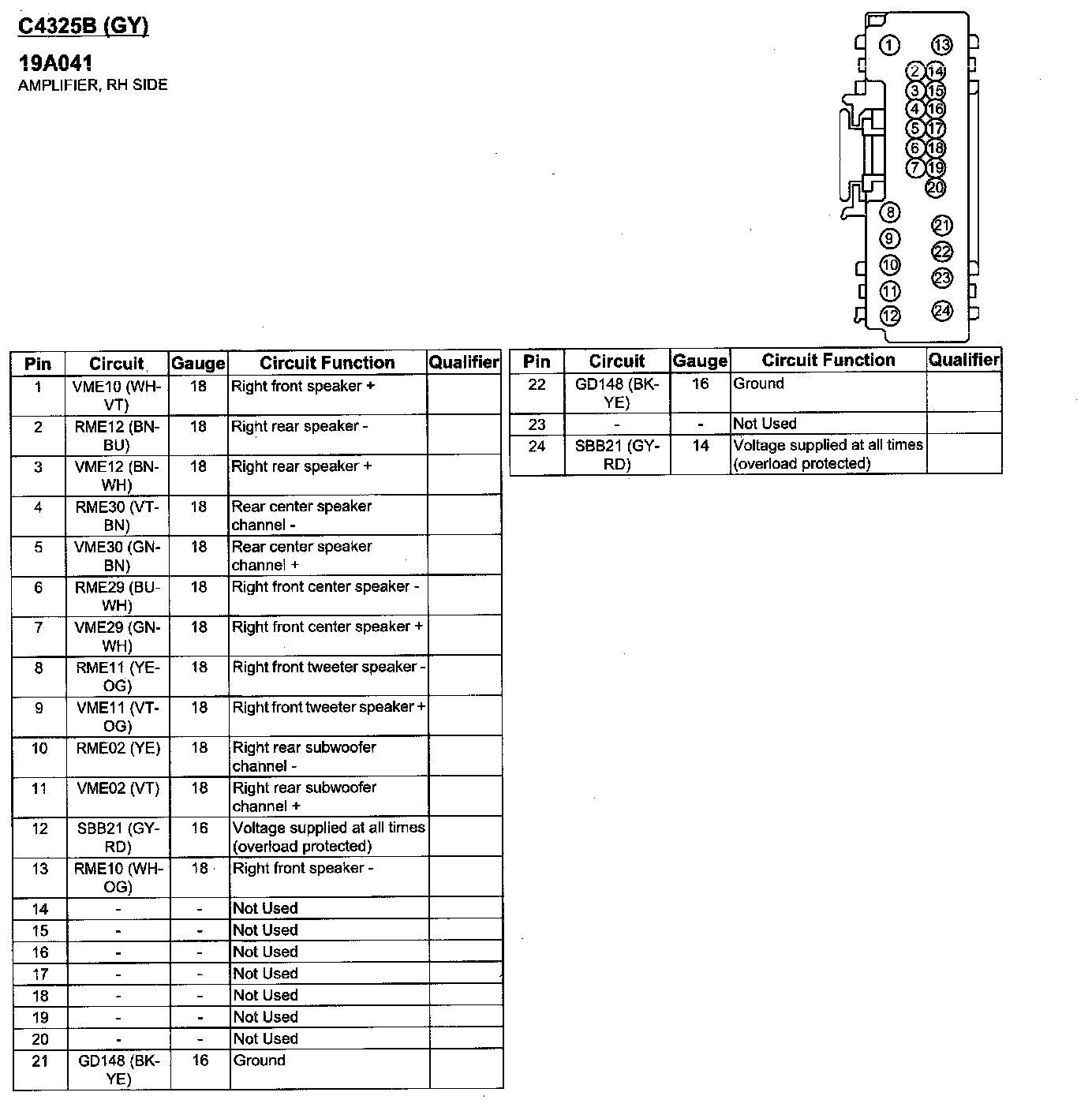

C4325B:
