Home >> Mercury >> 2007 >> Milan AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Amplifier, Sound System >> Amplifier >> LH Side

LH Side

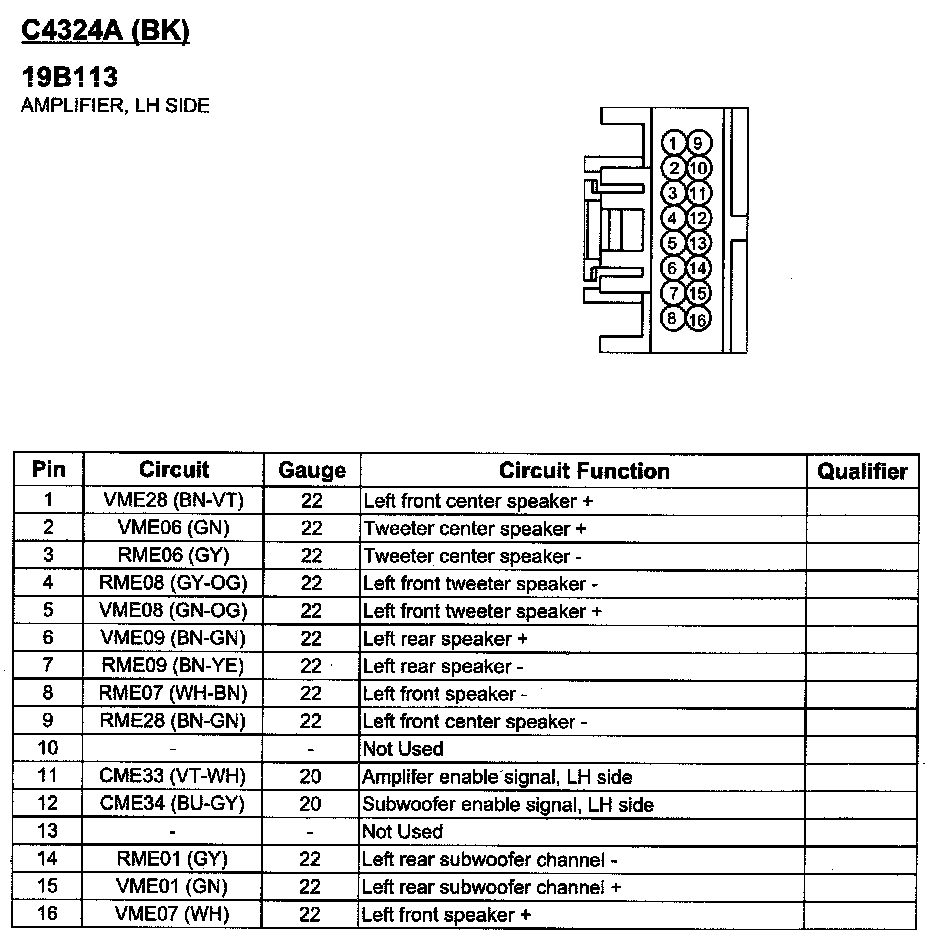

C4324A:

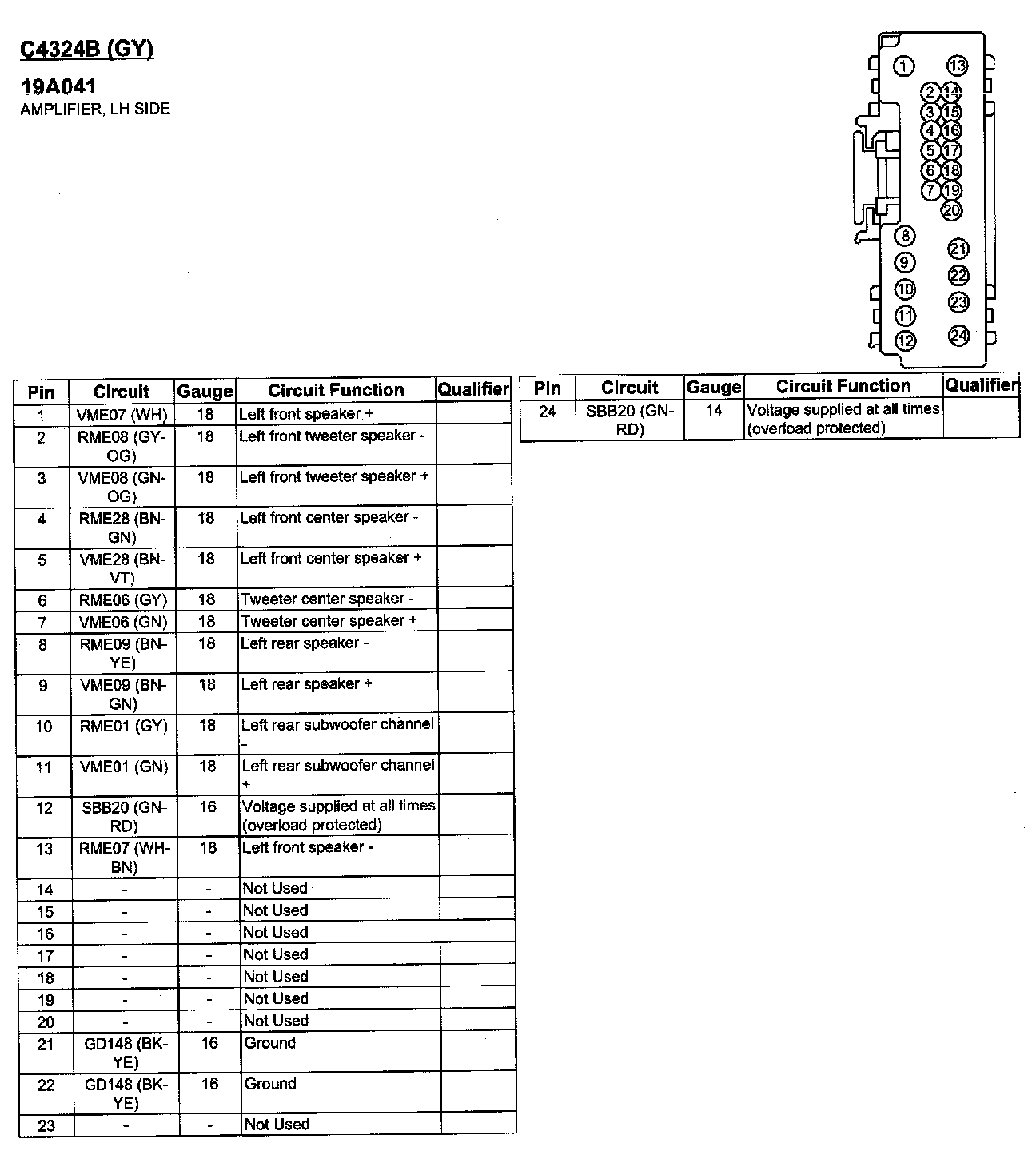

C4324B:
