Spoiler: Service and Repair

SPOILER







Removal and Installation
1. Open the luggage compartment lid.

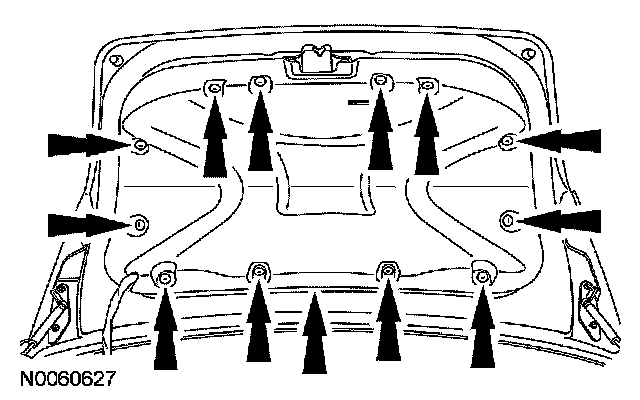

2. Remove the luggage compartment lid insulator.
- Remove the pushpin retainers.
- Remove the insulator.

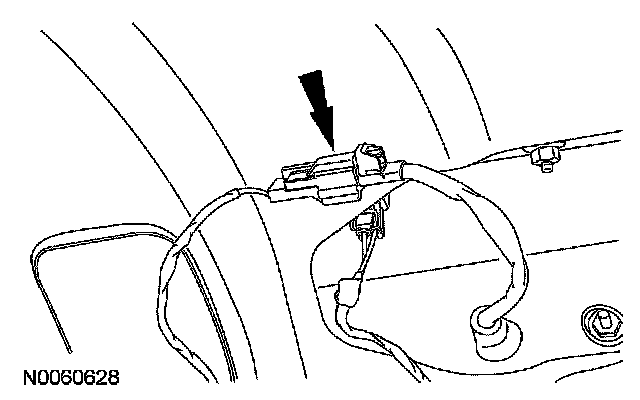

3. Disconnect the spoiler electrical connector.







4. Remove the spoiler-to-luggage compartment lid nuts.
- To install, tighten to 6 Nm (53 lb-in).

NOTE: There are 2 pin-type retainers on the bottom of the spoiler. When removing the spoiler it is difficult to get the retainers to release. The retainers may break during removal of the spoiler.

5. Remove the spoiler.
6. To install, reverse the removal procedure.
- If any retainers are broken, install new retainers.
