Seat Cushion Thermo - Electric Device
SEAT CUSHION THERMO - ELECTRIC DEVICEDriver Seat Cushion (Part 1):
Driver Seat Cushion (Part 2):
Passenger Seat Cushion (Part 1):
Passenger Seat Cushion (Part 2):
Exploded View

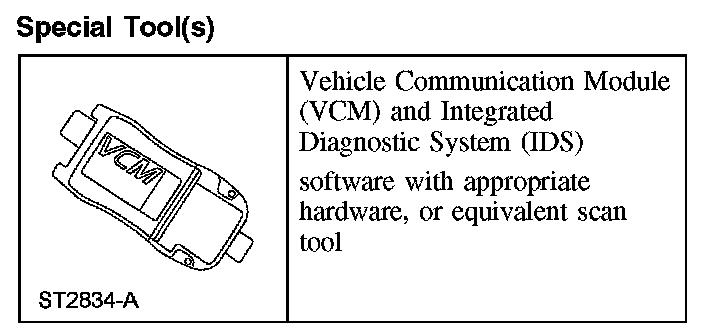

Special Tool(s):
Special Tool(s)
Removal and Installation
WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an airbag module. This will reduce the risk of injuring the event of an accidental deployment.
- To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
- If a seat equipped with a SRS component is being serviced, the SRS must be depowered.
- The air bag warning lamp illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicates SRS fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- The cushion thermo-electric device (TED) filter is detachable from the TED assembly housing from underneath the seat cushion.
All seats
1. Remove the front seat and depower the supplemental restraint system (SRS).
- Fully raise the seat before depowering the SRS to aid cushion thermo-electric device (TED) assembly access.

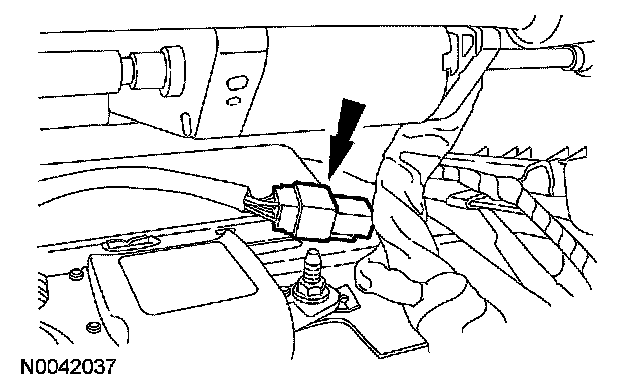

2. Disconnect the TED electrical connector.
3. CAUTION: Inspect the climate controlled seat cushion manifold and foam pad for crush or obstruction before installation and repair as needed.
Remove the 3 nuts and TED assembly from the cushion frame.
- To install, tighten to 6 Nm (53 lb-in).
- To install, check for correct fit between the cushion manifold, foam pad and TED assembly, to make sure there is no air flow obstruction, cushion crush or foreign material.
4. To install, reverse the removal procedure.
5. Install the front seat and repower the SRS. If a passenger seat has been serviced, do not prove out the SRS at this time.
Passenger seat
6. Carry out the Occupant Classification Sensor (OCS) System Zero Seat Weight Test and prove out the SRS.
