Test A: The Roof Opening Panel Has Excessive Wind Noise

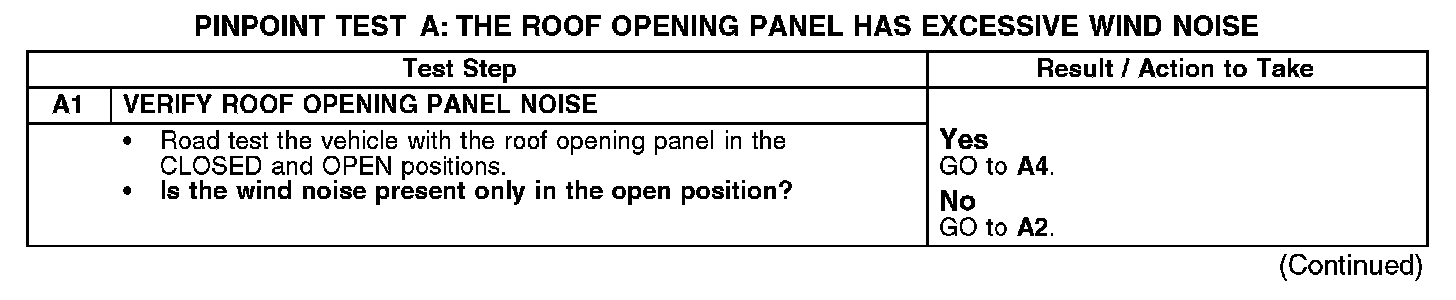

PINPOINT TEST A: THE ROOF OPENING PANEL HAS EXCESSIVE WIND NOISE


A1:






A2-A4:






Normal Operation
When the roof opening panel glass is completely closed, it is flush with the roof panel.

Possible Causes
- Incorrect roof opening panel adjustment
- Poorly fitting roof opening panel seal/weatherstrip
- Incorrect installation of the roof opening panel and motor/module
- Incorrect curvature of the air deflector
