Test N: The Remote Keyless Entry (RKE) Transmitter Has Poor Range Performance

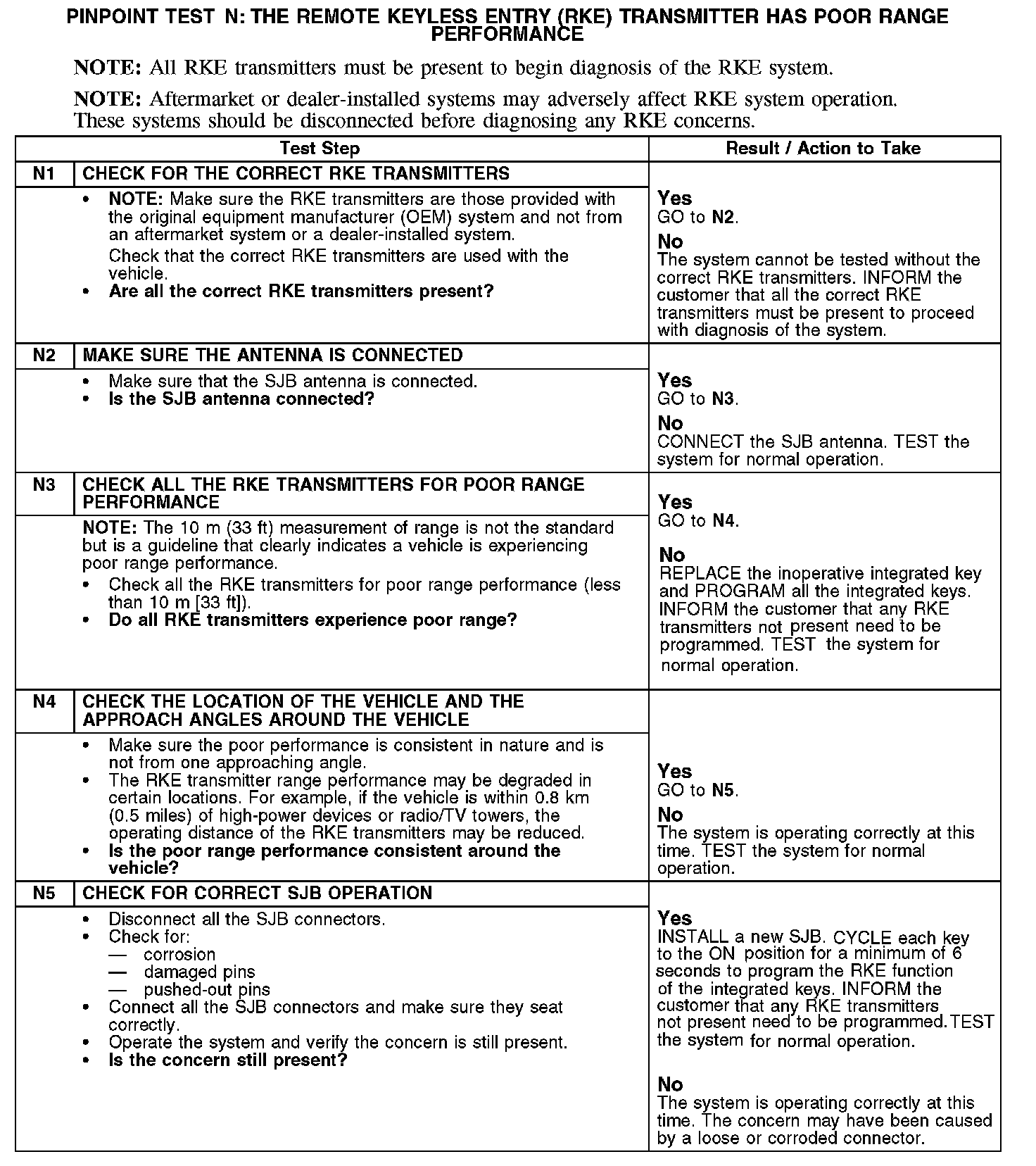

PINPOINT TEST N: THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER HAS POOR RANGE PERFORMANCE

N1-N5:

Normal Operation
The RKE transmitter sends a radio signal to the smart junction box (SJB) based on the user selected RKE transmitter button. The SJB then carries out the selected action.

Possible Causes
- RKE transmitter
- Aftermarket systems
- High power devices
- TV/radio transmission towers
- SJB antenna
- SJB
