Rear Door Panel: Service and Repair

DOOR TRIM PANEL - REAR







Removal and Installation

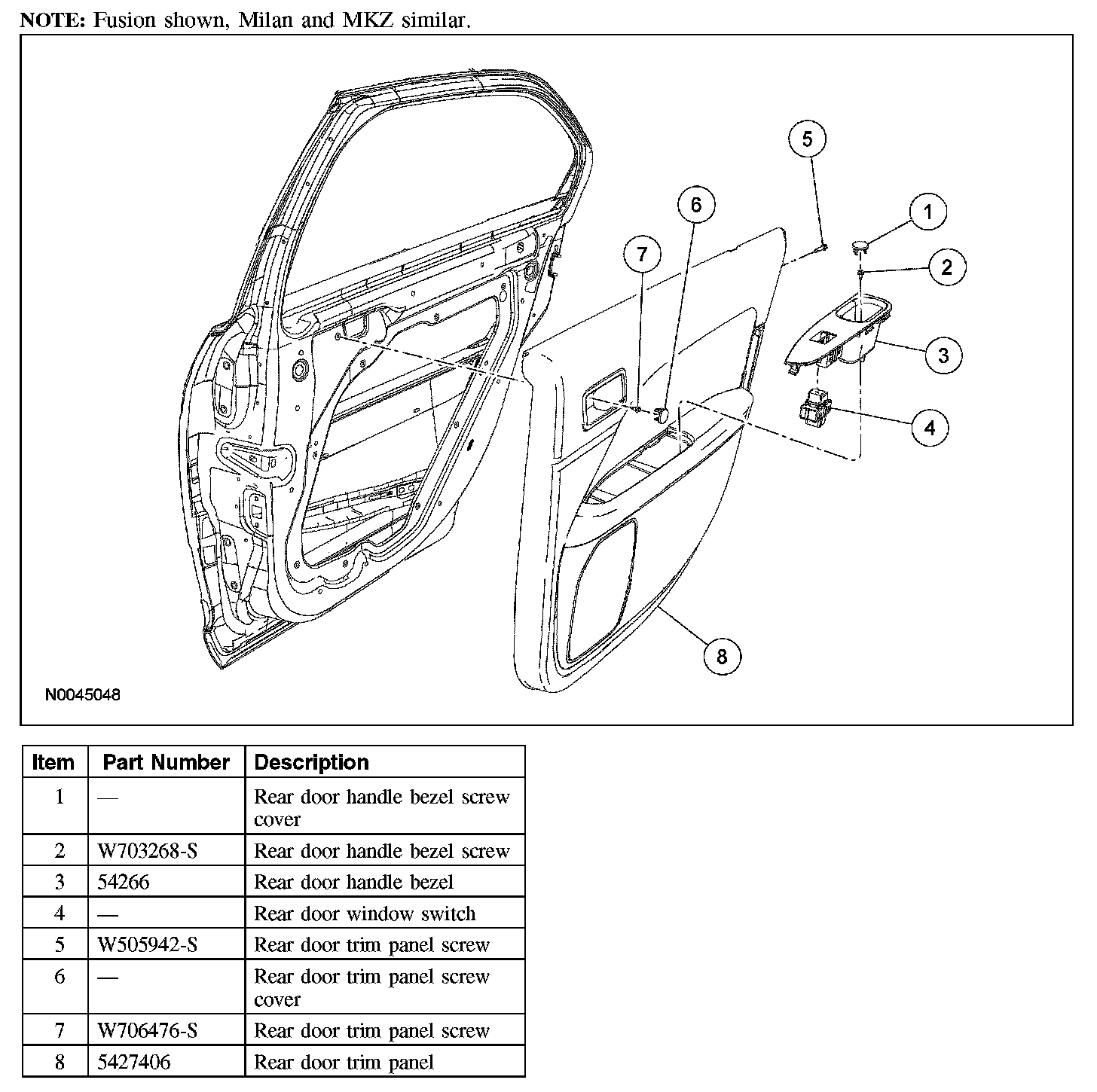

NOTE: RH side shown, LH side similar.

1. Remove the rear door handle bezel.
- Remove the screw cover.
- Remove the screw.
- Disconnect the electrical connector.

2. Remove the upper rear trim panel screw.
3. Remove the rear door handle cover screw.
- Remove the screw cover.
- Remove the screw.

4. Remove the rear door trim panel.
- Disconnect the electrical connector.

5. To install, reverse the removal procedure.
