Front Door Panel: Service and Repair

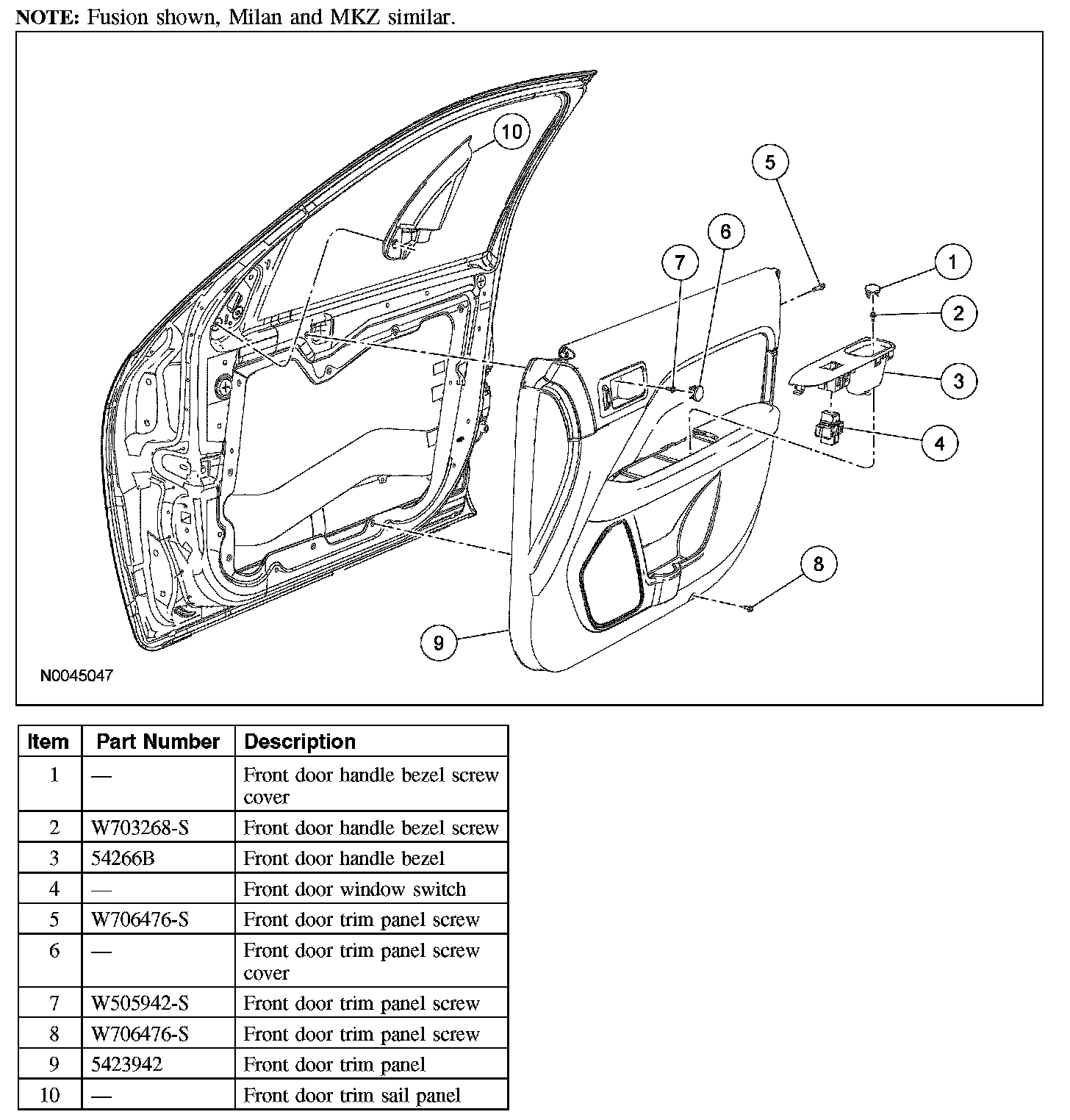

DOOR TRIM PANEL - FRONT







Removal and Installation

1. NOTE: RH side shown, LH side similar.

Remove the front door handle bezel.
- Remove the cover.
- Remove the screw.
- Disconnect the electrical connectors.

2. Remove the front door handle cover screw.
- Remove the screw cover.
- Remove the screw.

3. Remove the upper rear trim panel screw.
4. Remove the lower trim panel screw.
5. Remove the front door trim panel.
- Disconnect the electrical connector.

6. To install, reverse the removal procedure.
