Radio/Stereo: Service and Repair

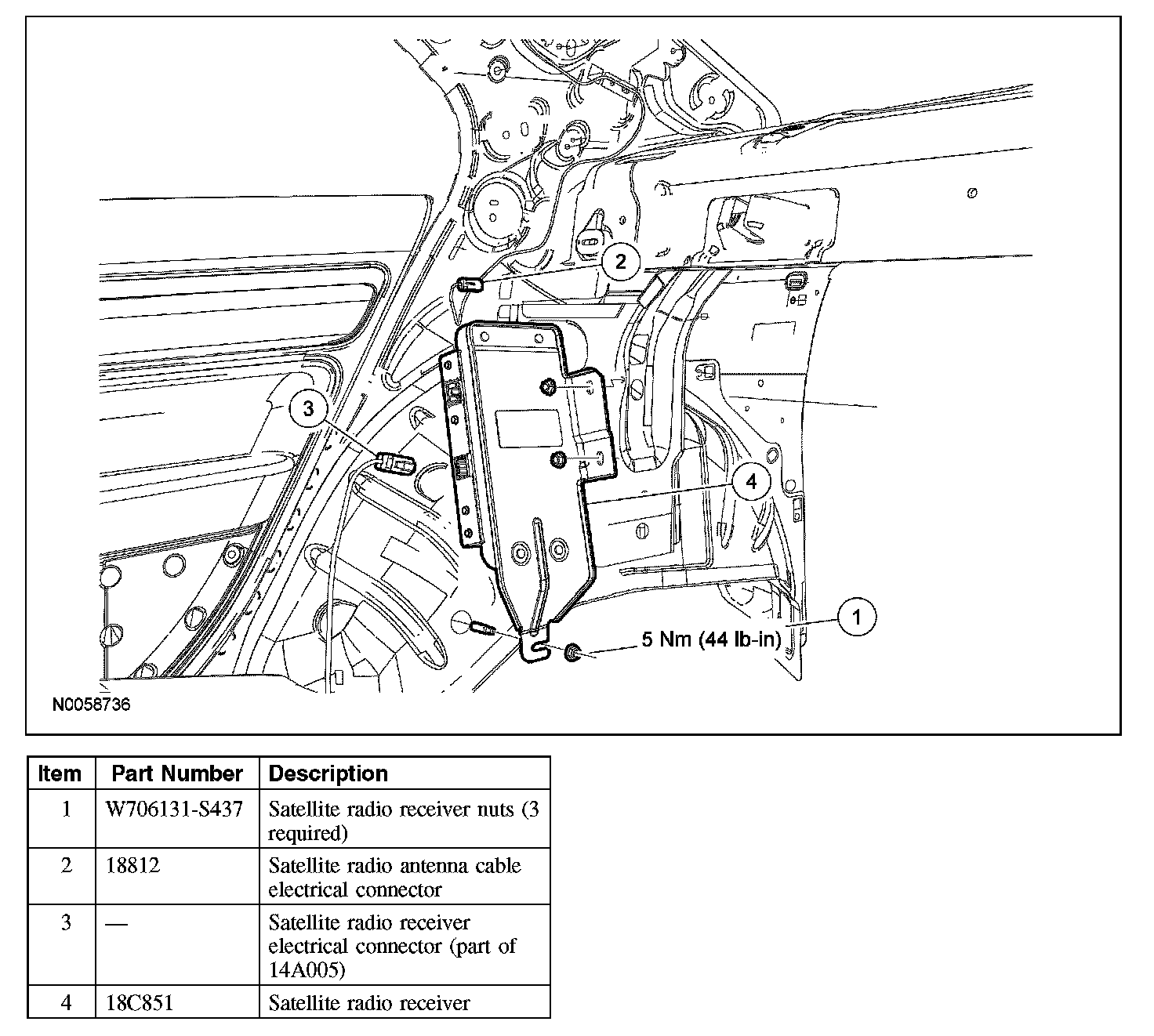

SATELLITE RADIO RECEIVER







Removal and Installation
1. Remove the rear seat backrest.
2. Disconnect the satellite radio antenna cable and the satellite radio receiver electrical connectors.
3. Remove the 3 nuts and the satellite radio receiver.
- To install, tighten to 5 Nm (44 lb-in).

4. To install, reverse the removal procedure.
