Test A: All The Power Windows Are Inoperable

PINPOINT TEST A: ALL THE POWER WINDOWS ARE INOPERABLE

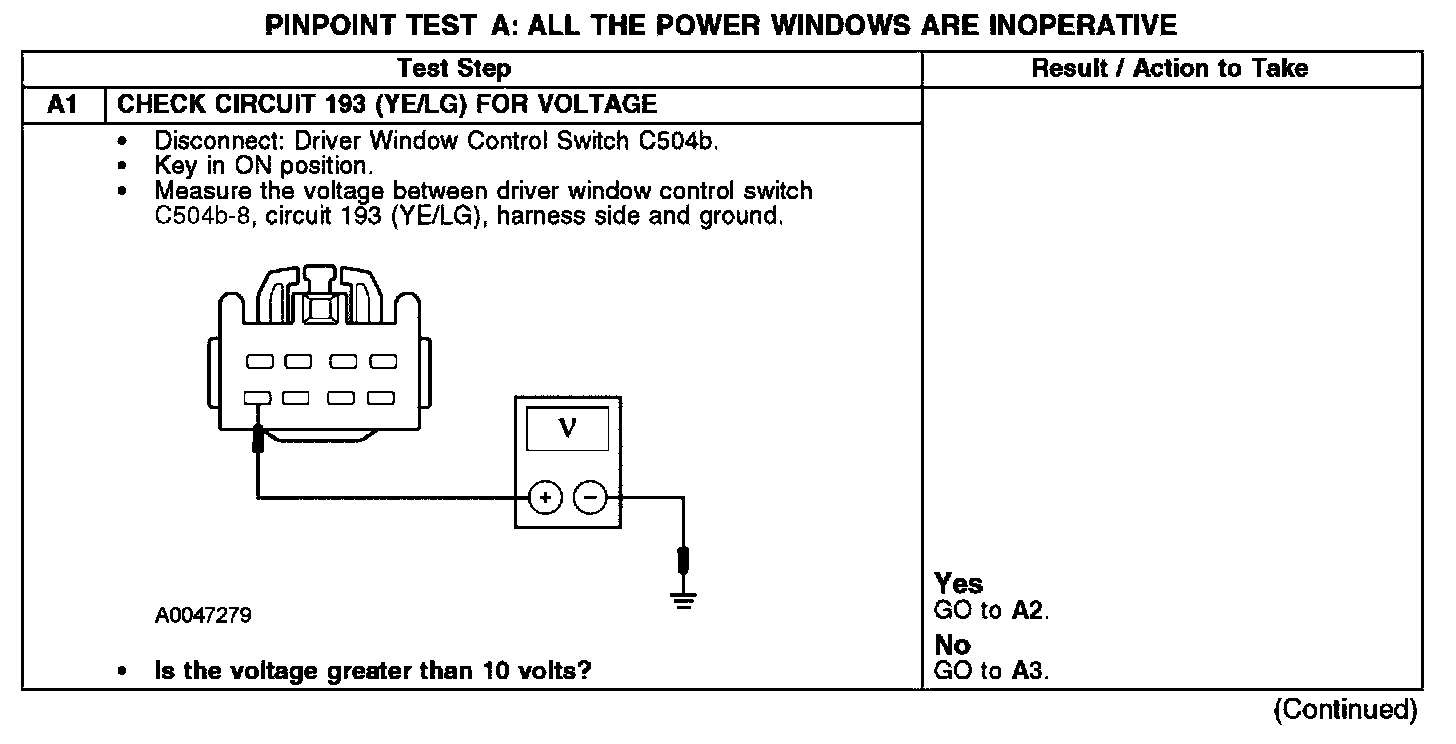

A1:

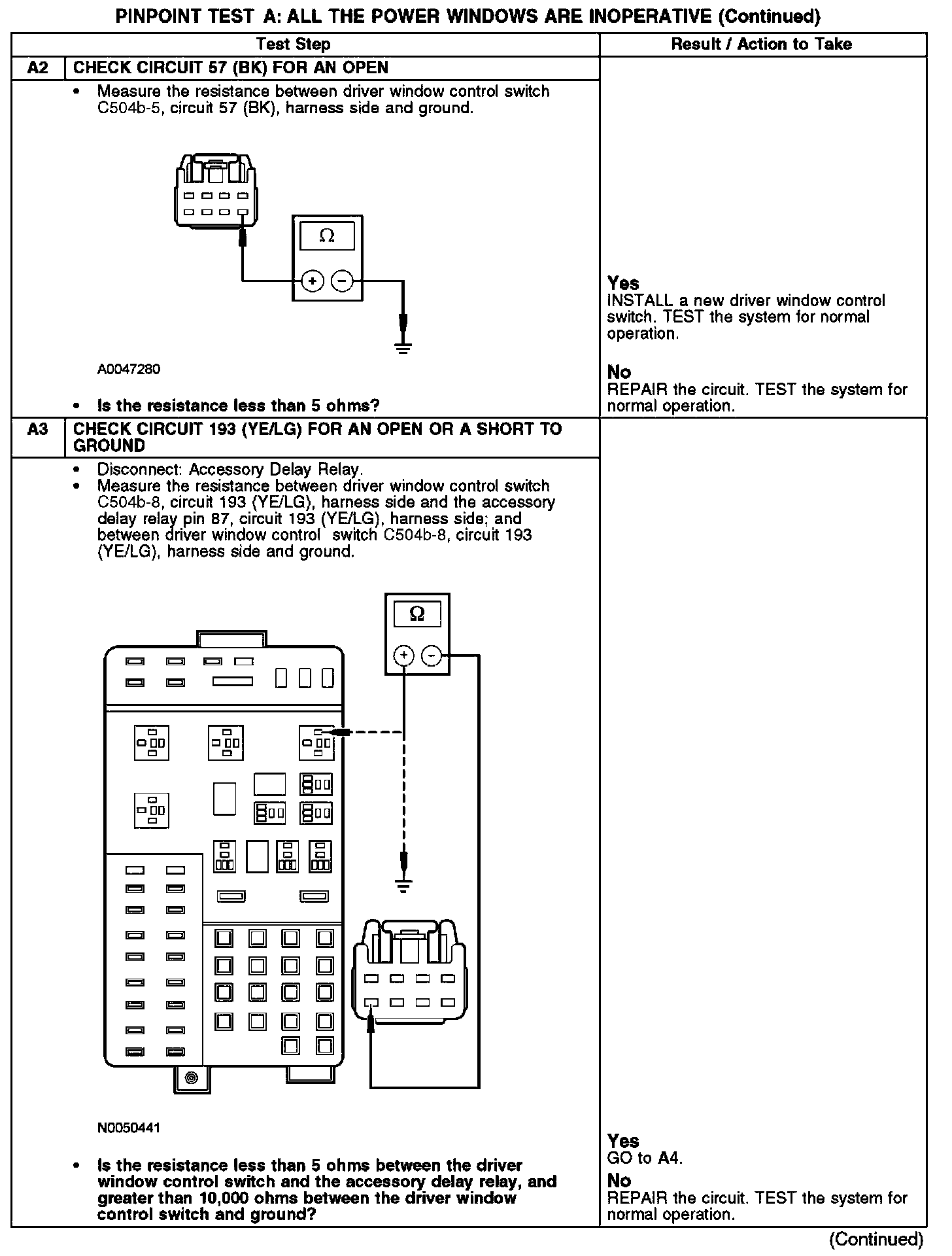

A2-A3:

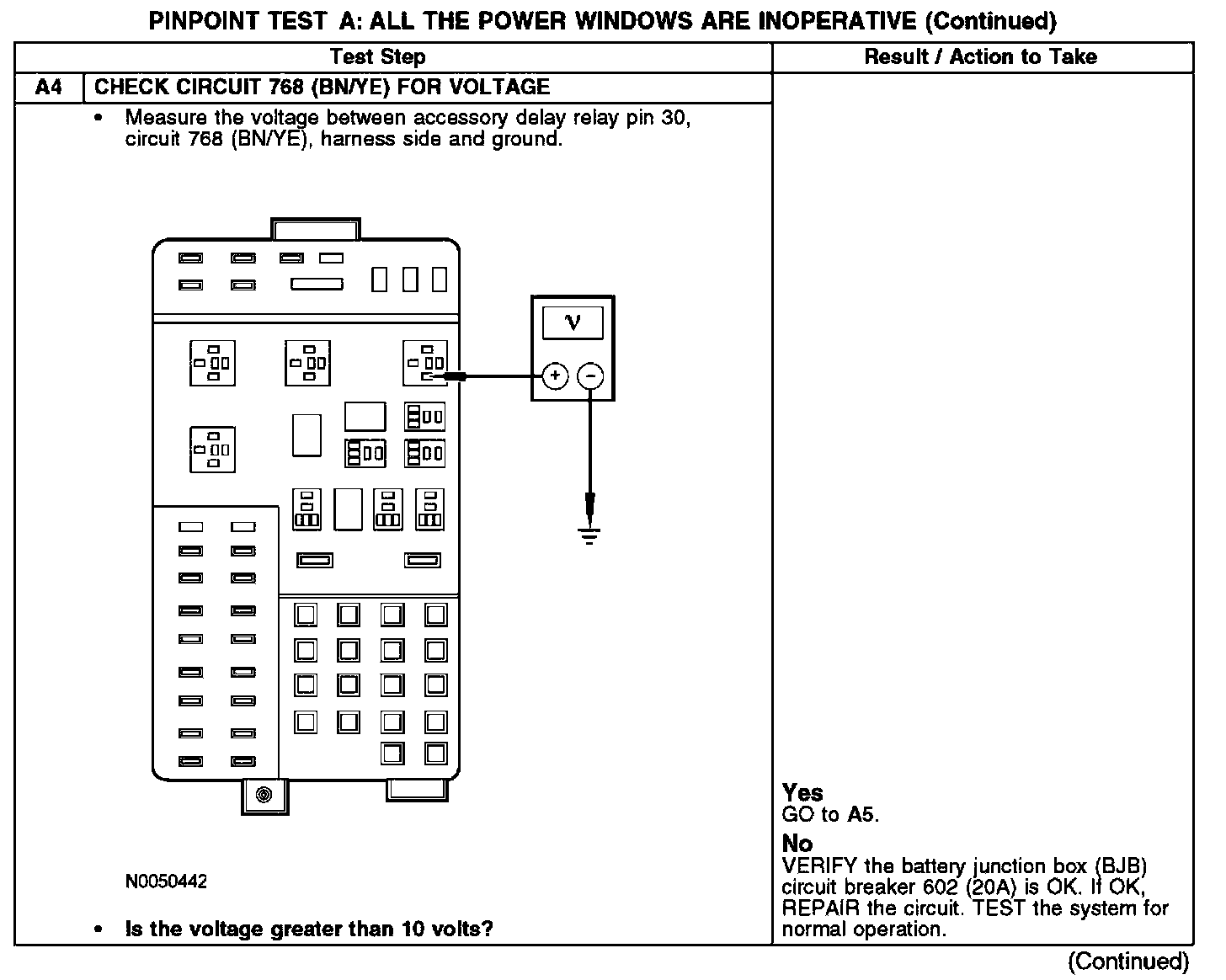

A4:

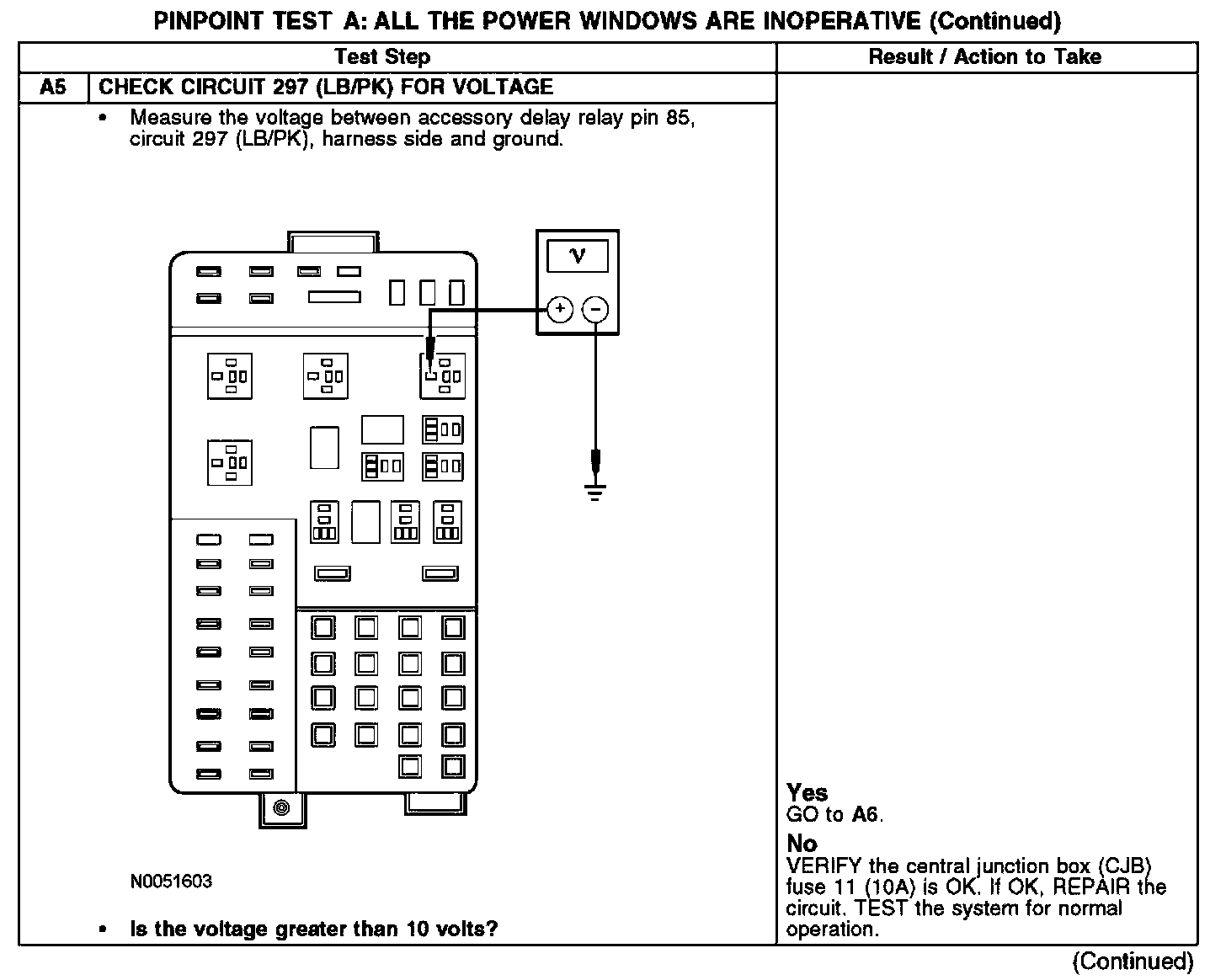

A5:

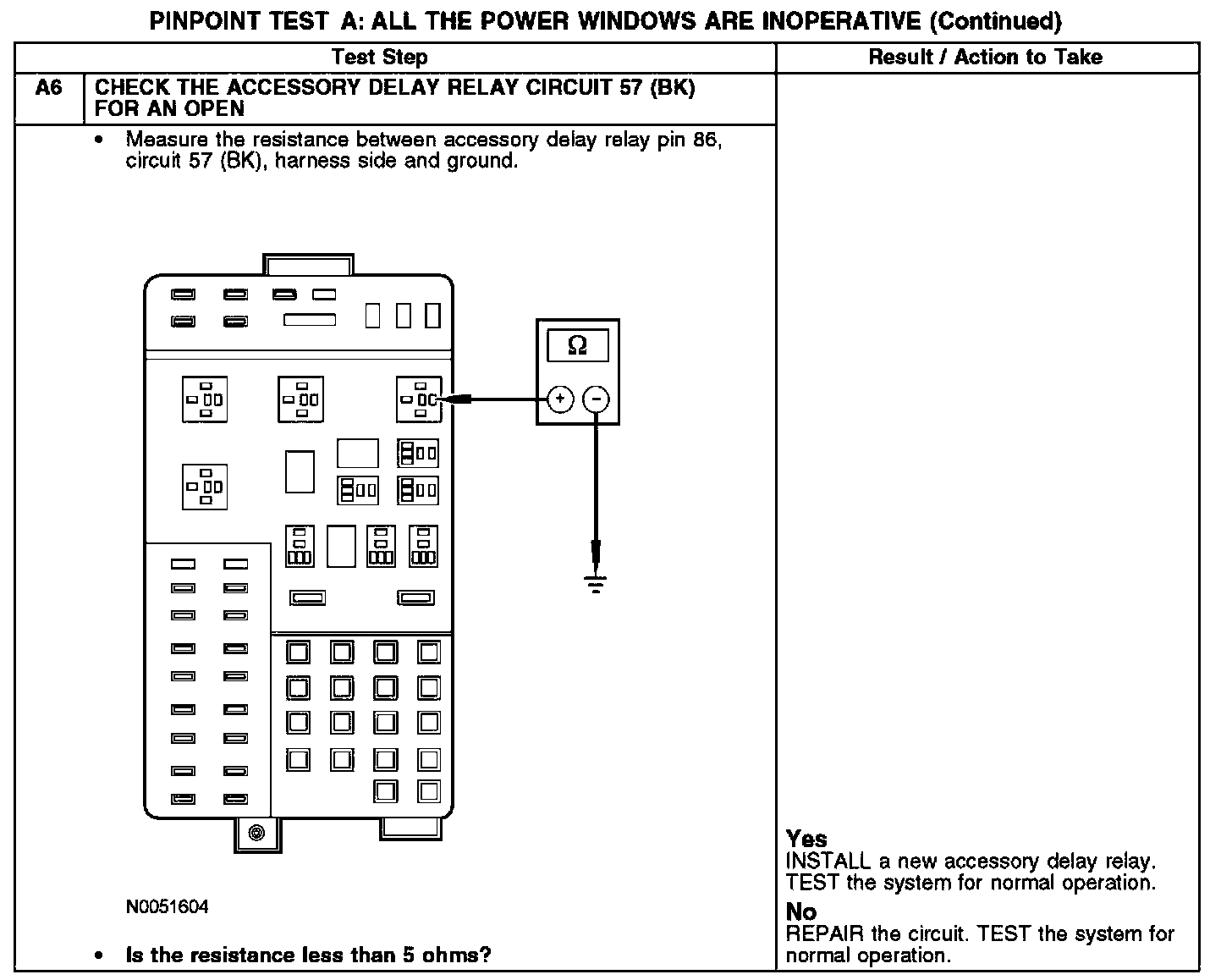

A6:

Normal Operation
With the key in the ACC or RUN position the voltage is supplied to the coil side of the accessory delay relay through circuit 297 (LB/PK). When the accessory delay relay is energized, battery voltage is supplied to the driver window control switch on circuit 193 (YE/LG). The driver window control switch provides voltage and ground to all other window control switches. The driver window control switch is grounded through circuit 57 (BK).

Possible Causes
- Fuse(s)
- Circuit breaker
- Circuit 57 (BK) open
- Circuit 193 (YE/LG) open or short to ground
- Circuit 297 (LB/PK) open
- Circuit 768 (BN/YE) open
- Accessory delay relay
- Driver window control switch
