Transmission Connector Layouts

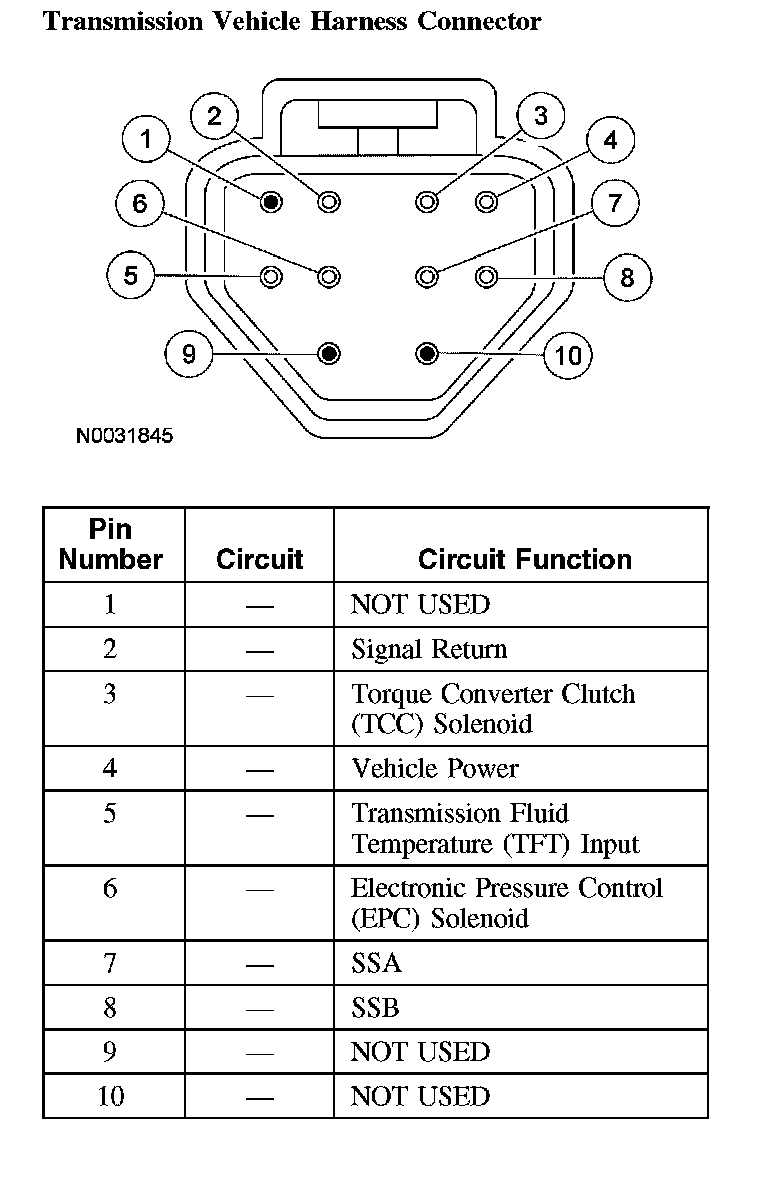

Transmission Vehicle Harness Connector:

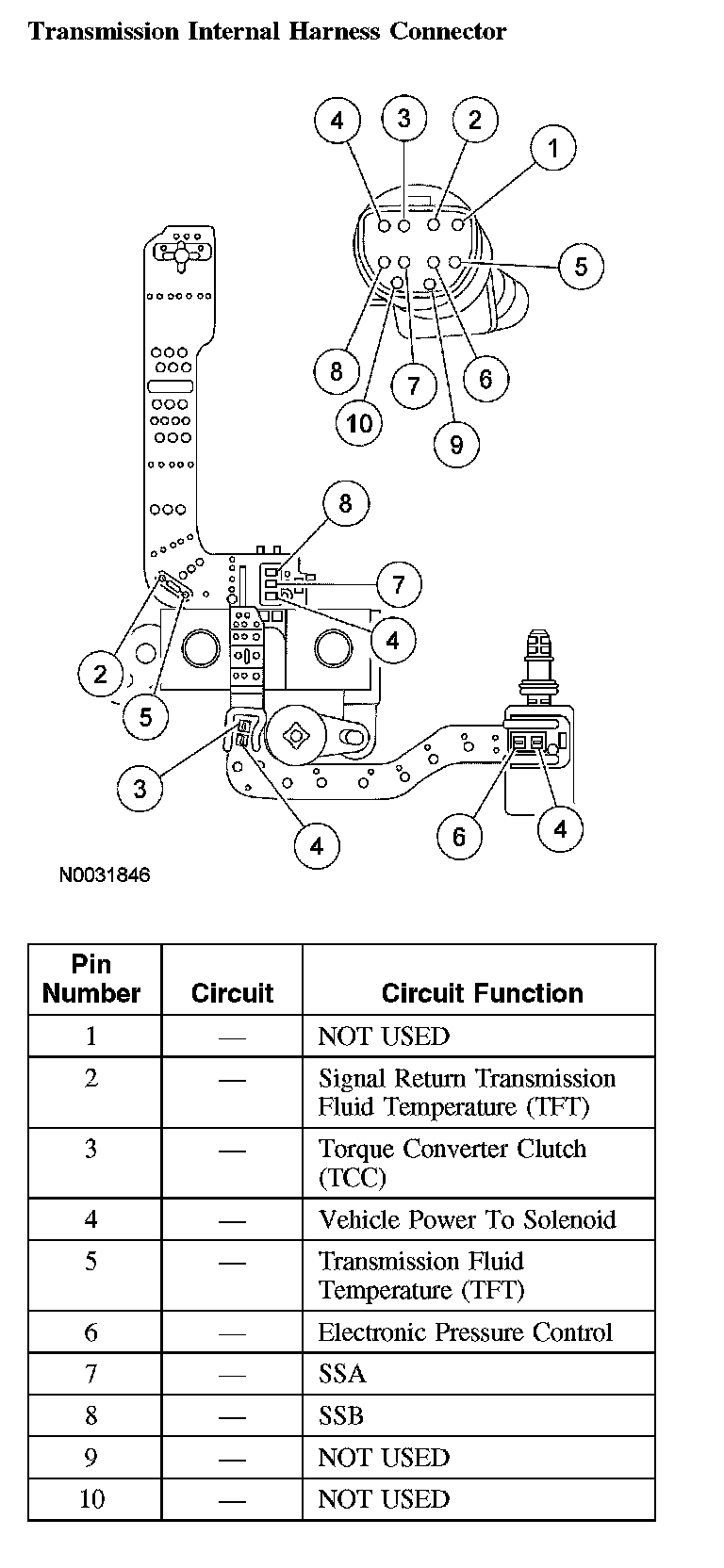

Transmission Internal Harness Connector:

Digital Transmission Range (TR) Sensor Connector:

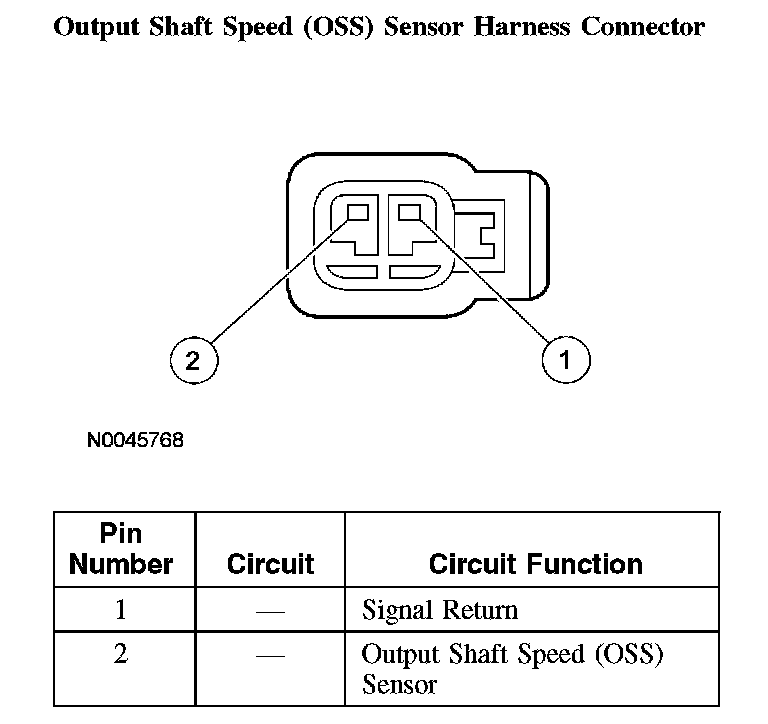

Output Shaft Speed (OSS) Sensor Harness Connector:

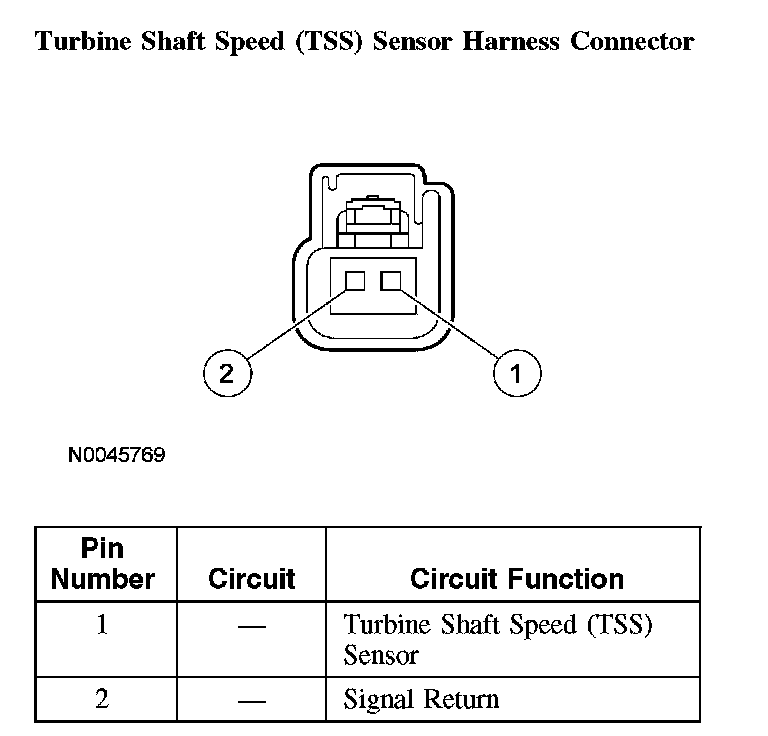

Turbine Shaft Speed (TSS) Sensor Harness Connector:

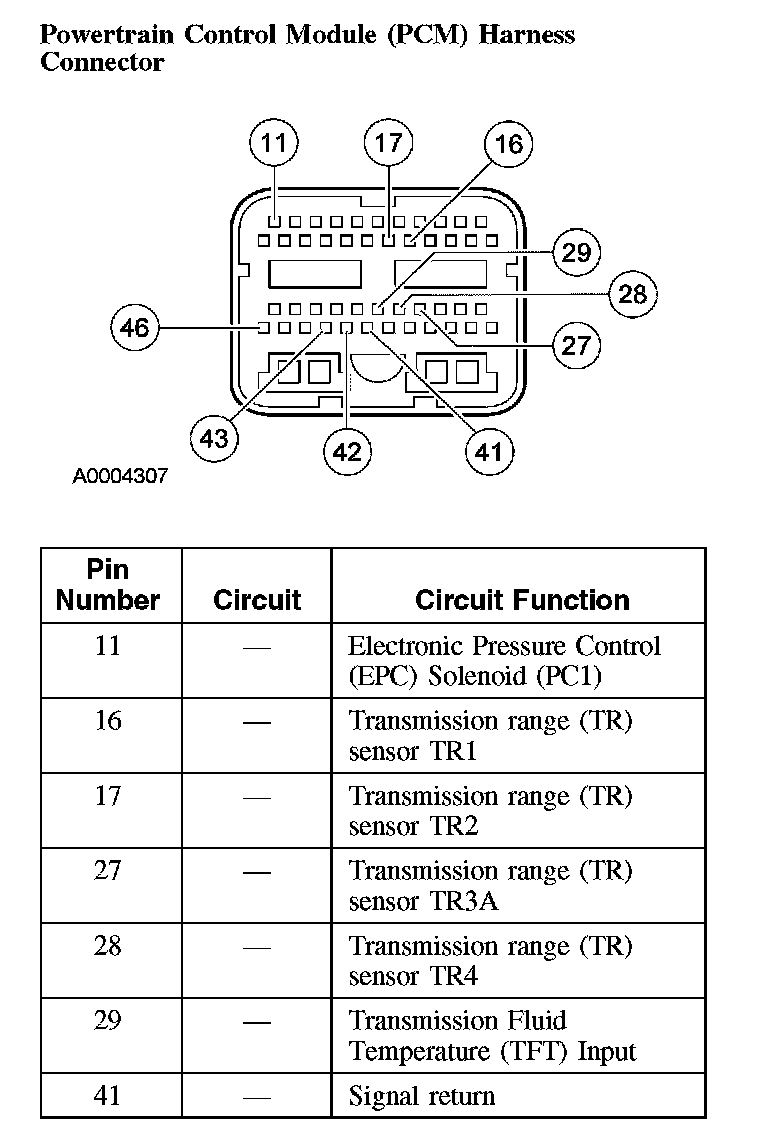

Powertrain Control Module (PCM) Harness Connector:

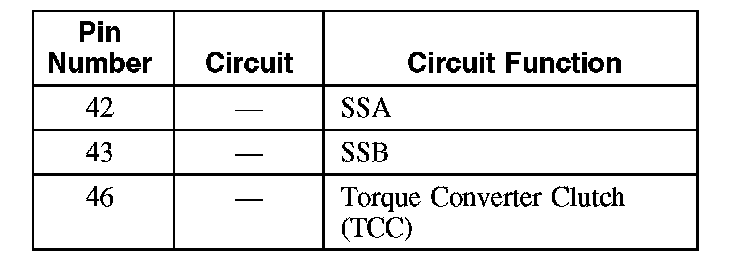

Powertrain Control Module (PCM) Harness Connector:
