Test A: Shift and Torque Converter Clutch Solenoids

Pinpoint Tests - OSC Equipped Vehicle

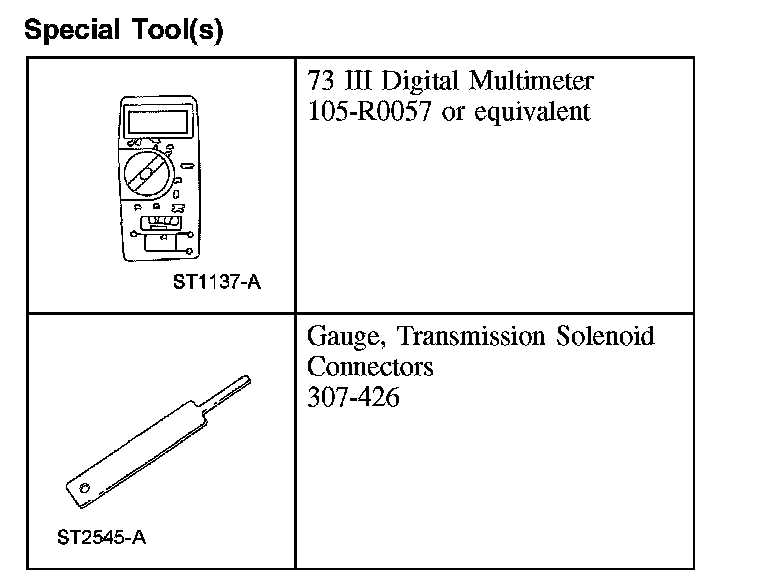

Special Tool(s):

Special Tool(s):

Any time an electrical connector or solenoid body is disconnected, inspect the connector for pin condition, corrosion and contamination. Also inspect the connector seal for damage. Clean, repair or install a new component as required.

Shift Solenoids Pre-Diagnosis
Use the following shift solenoid operation information when carrying out pinpoint Test A.

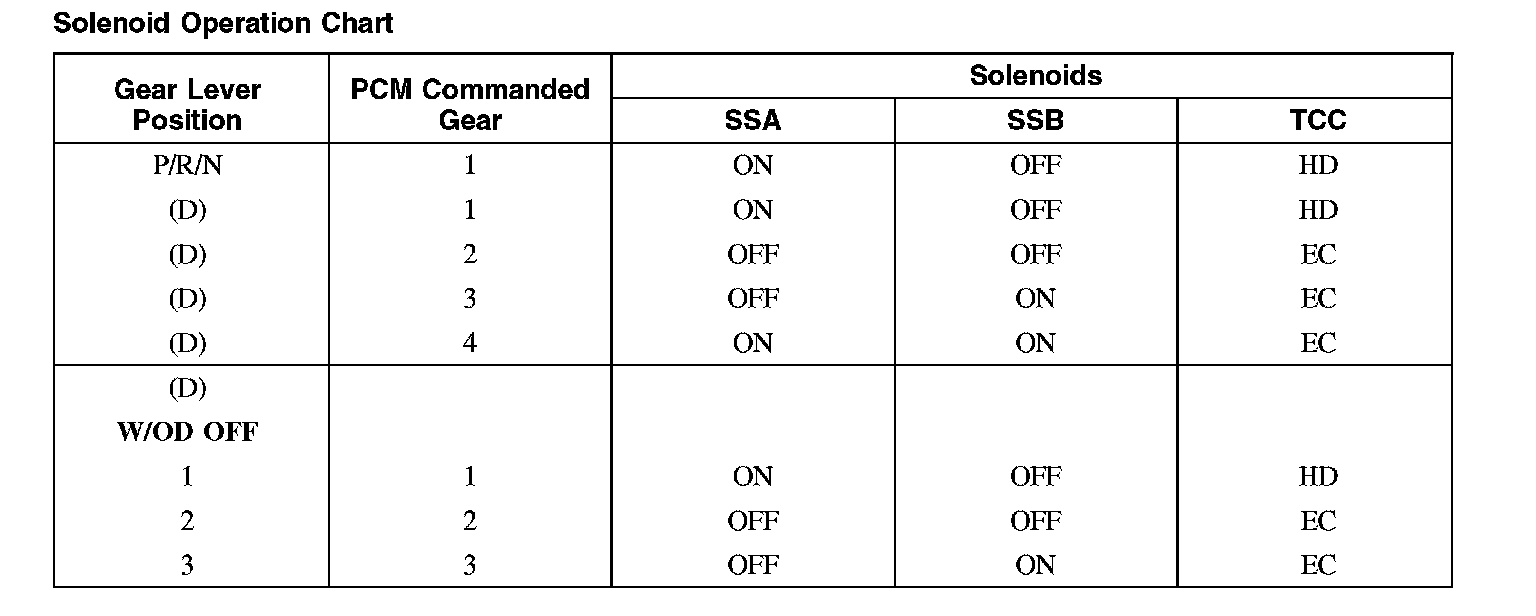

Solenoid Operation Chart:

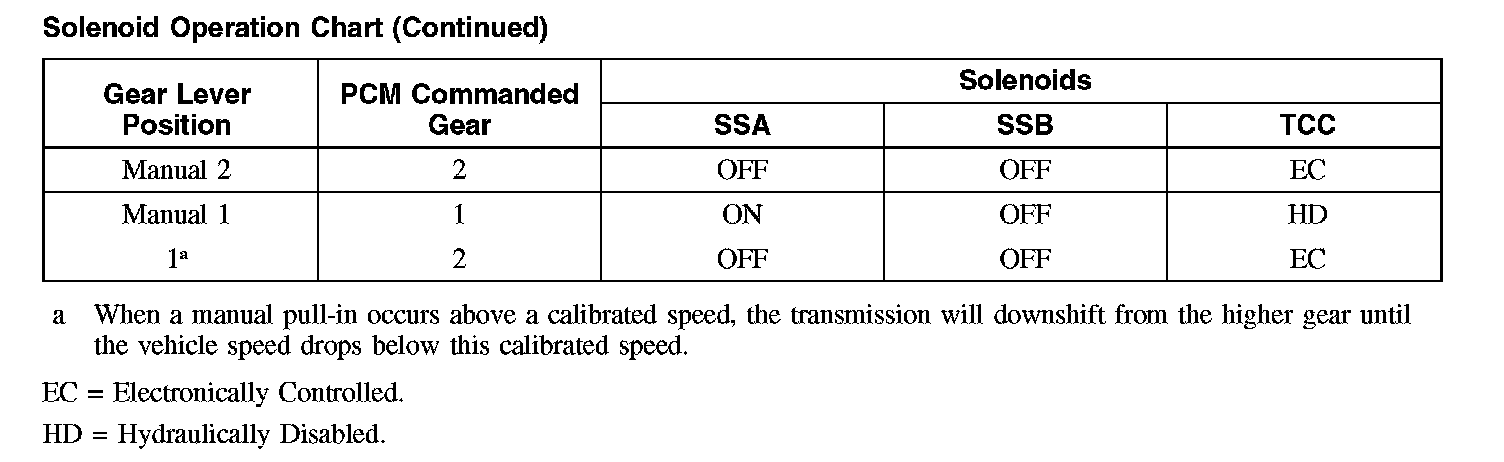

Solenoid Operation Chart:

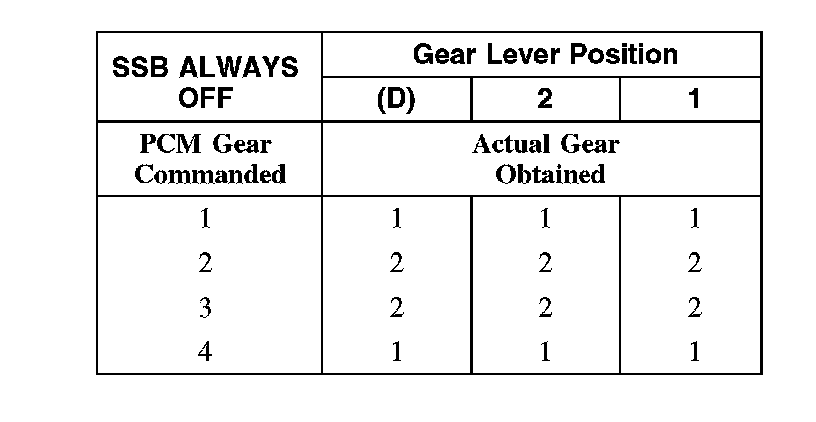

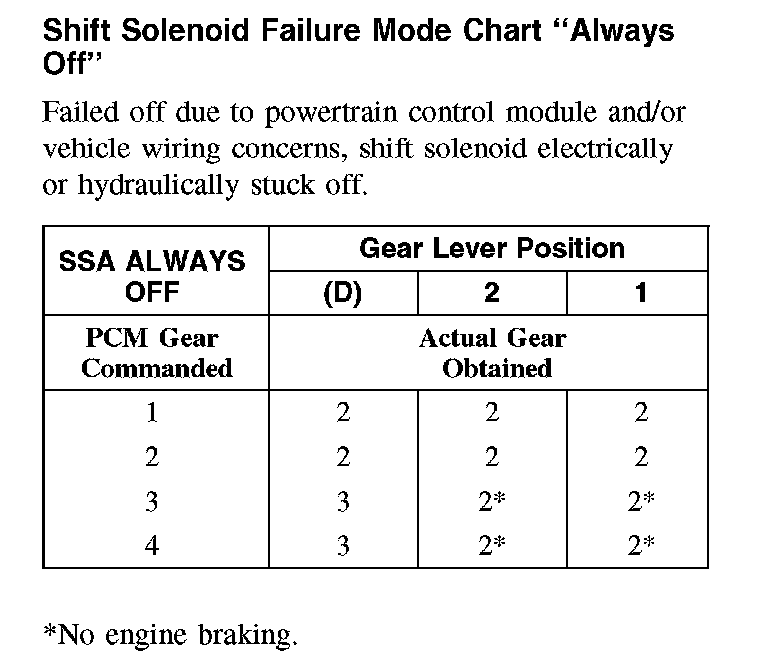

Shift Solenoid Failure Mode Chart "Always Off" (part 1):

Shift Solenoid Failure Mode Chart "Always Off" (part 2):

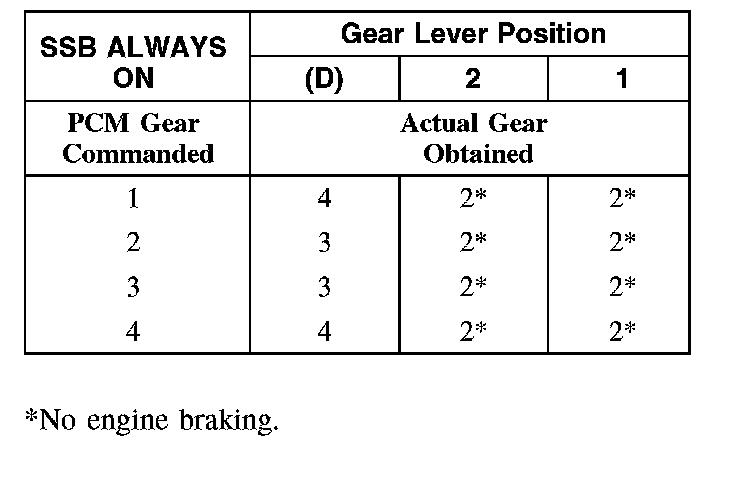

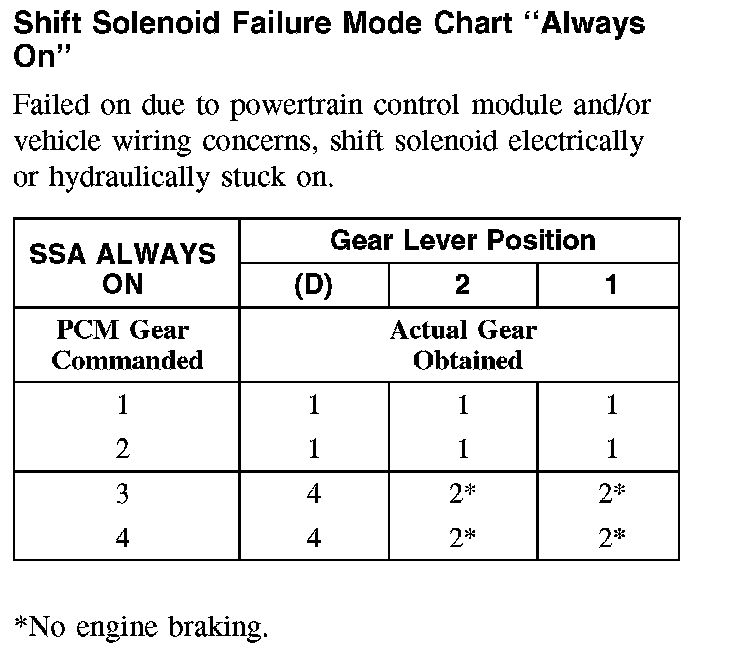

Shift Solenoid Failure Mode Chart "Always On" (part 1):

Shift Solenoid Failure Mode Chart "Always On" (part 2):

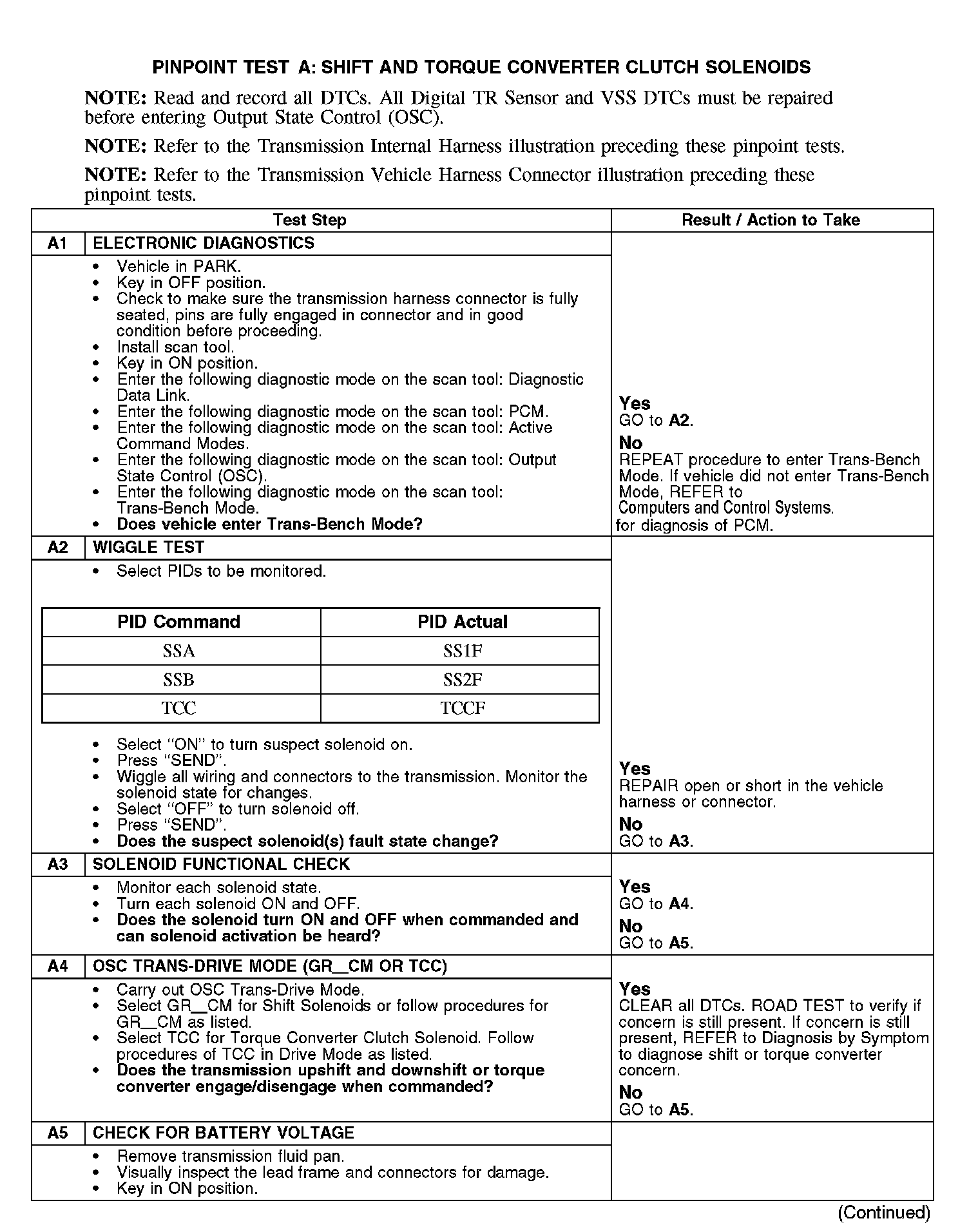

TEST A: SHIFT AND TORQUE CONVERTER CLUTCH SOLENOIDS

A1-A5:

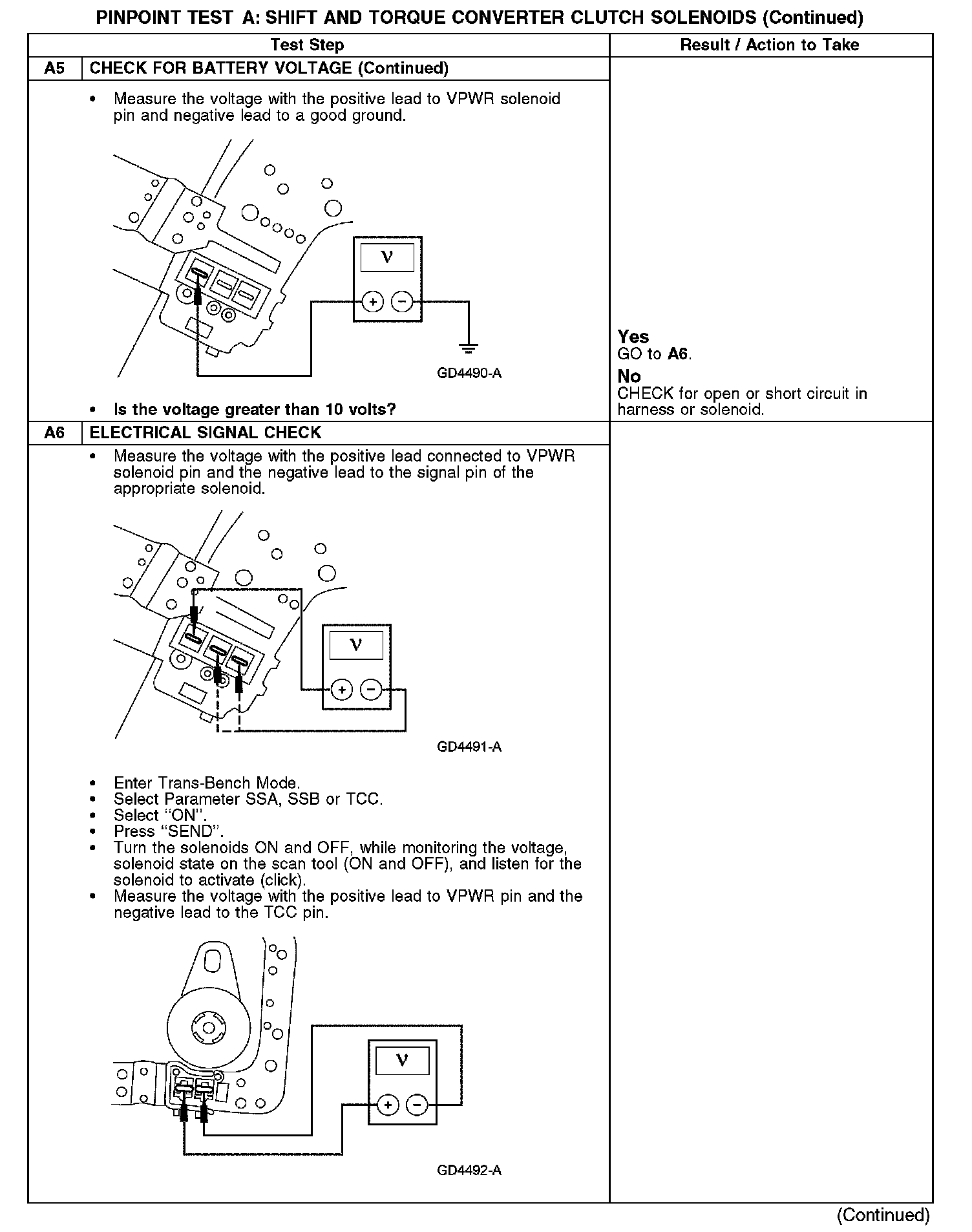

A5-A6:

A6-A8:

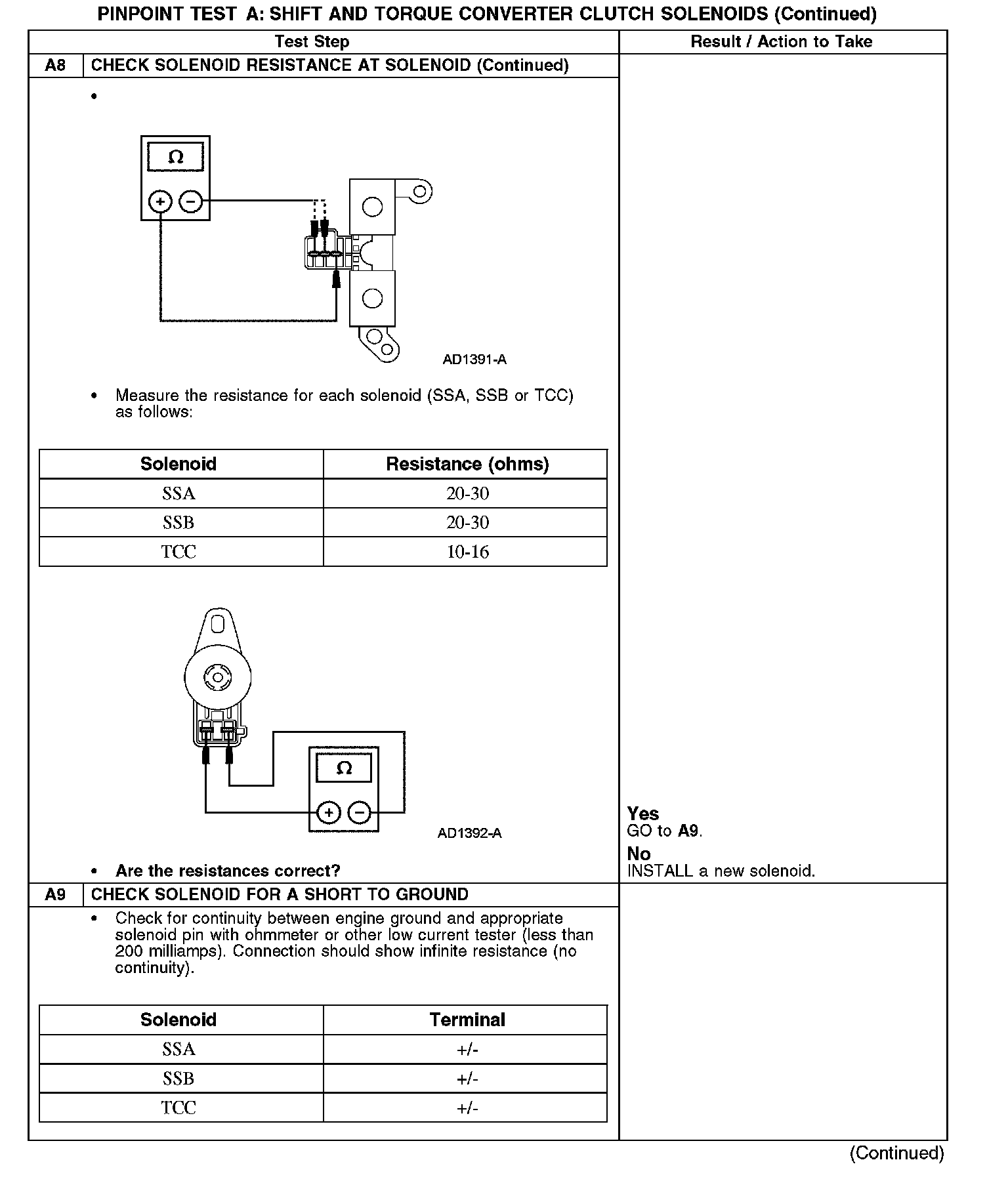

A8-A9:

A9:
