Test H: The Transmission Control (TC) Switch Does Not Operate Correctly - Floor Shift
Test H: The Transmission Control (TC) Switch Does Not Operate Correctly - Floor Shift
TEST H: THE TRANSMISSION CONTROL (TC) SWITCH DOES NOT OPERATE CORRECTLY - FLOOR SHIFT

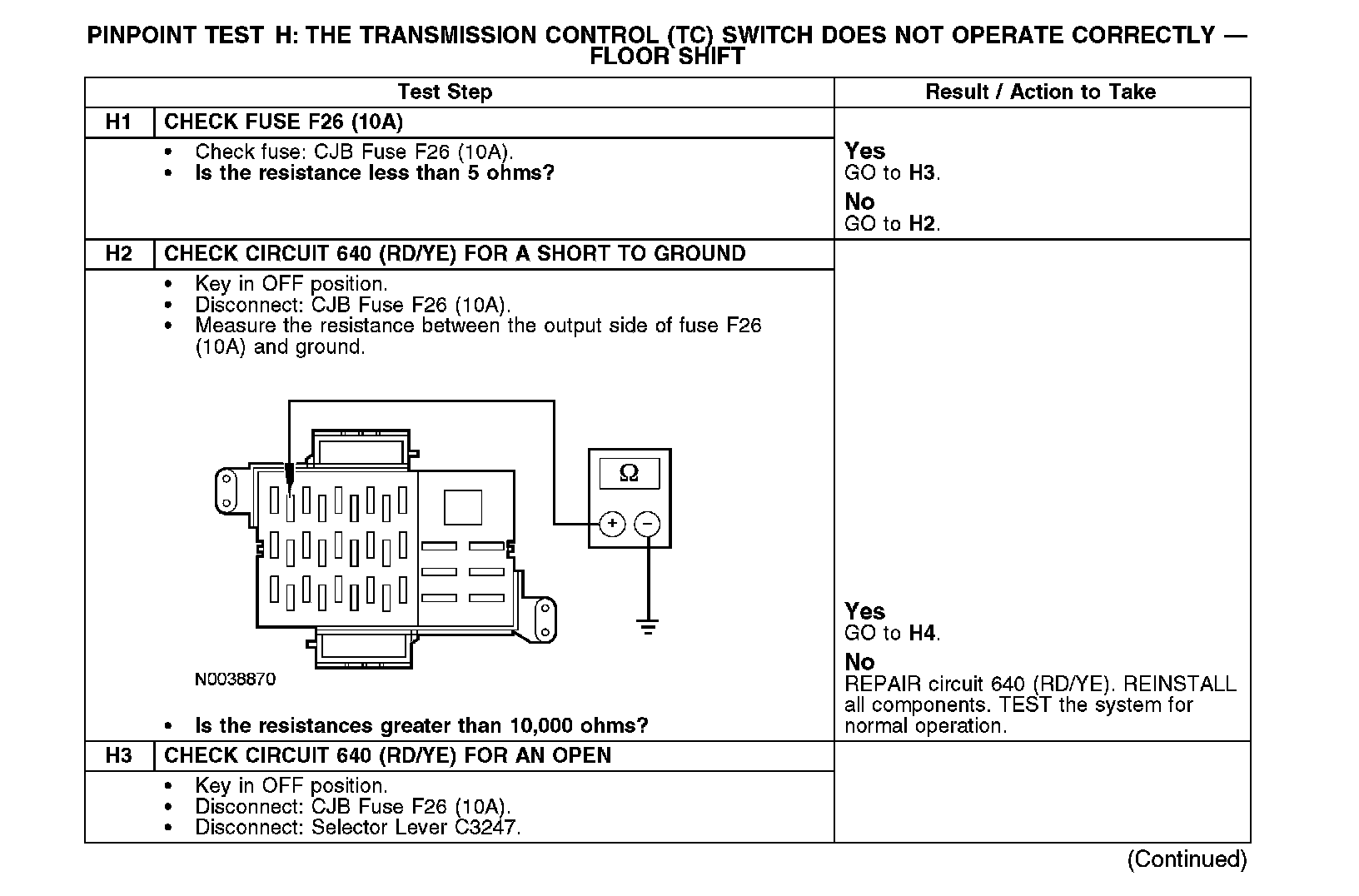

H1-H3:

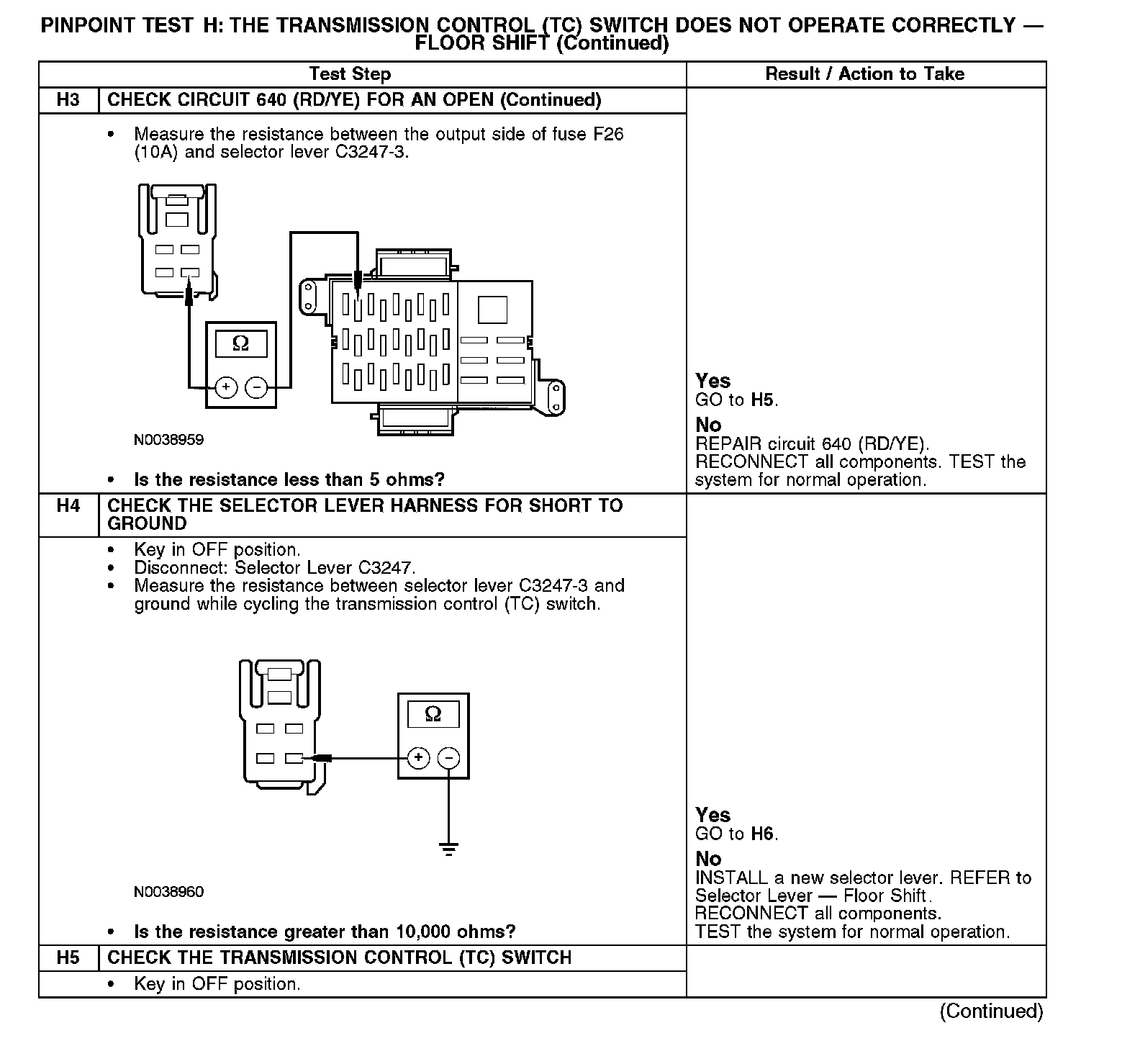

H3-H5:

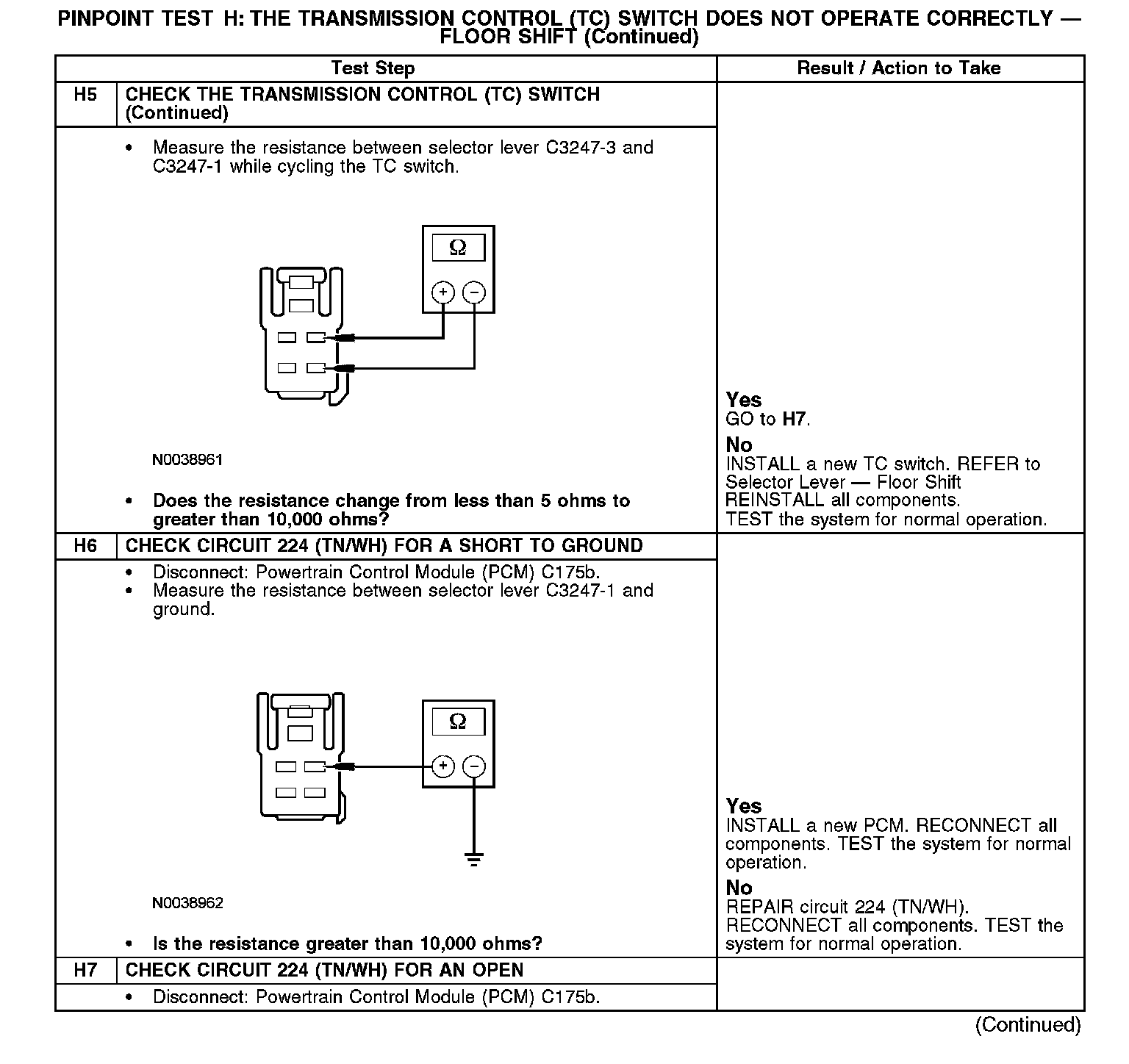

H5-H7:

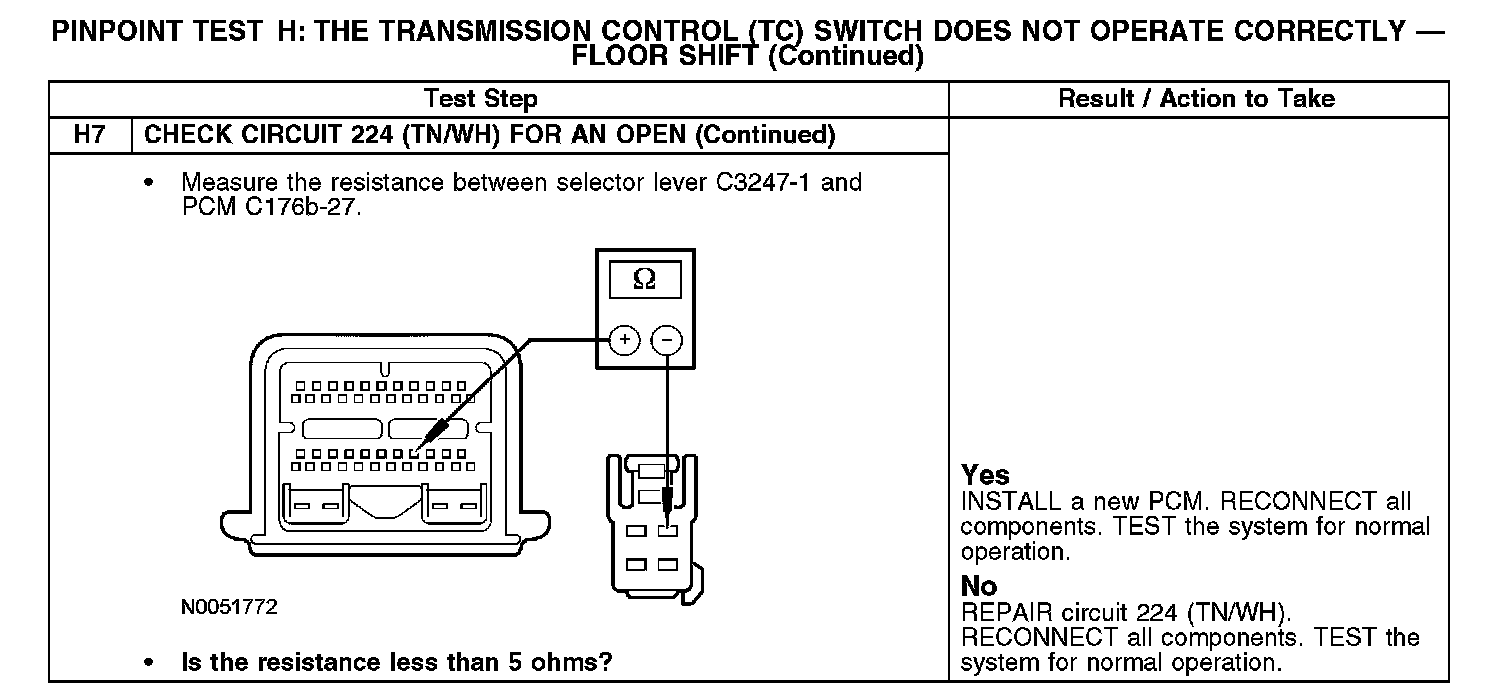

H7:
