Test E: The Shift Interlock System Does Not Release/Lock Correctly - Floor Shift
Test E: The Shift Interlock System Does Not Release/Lock Correctly - Floor Shift
TEST E: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY - FLOOR SHIFT

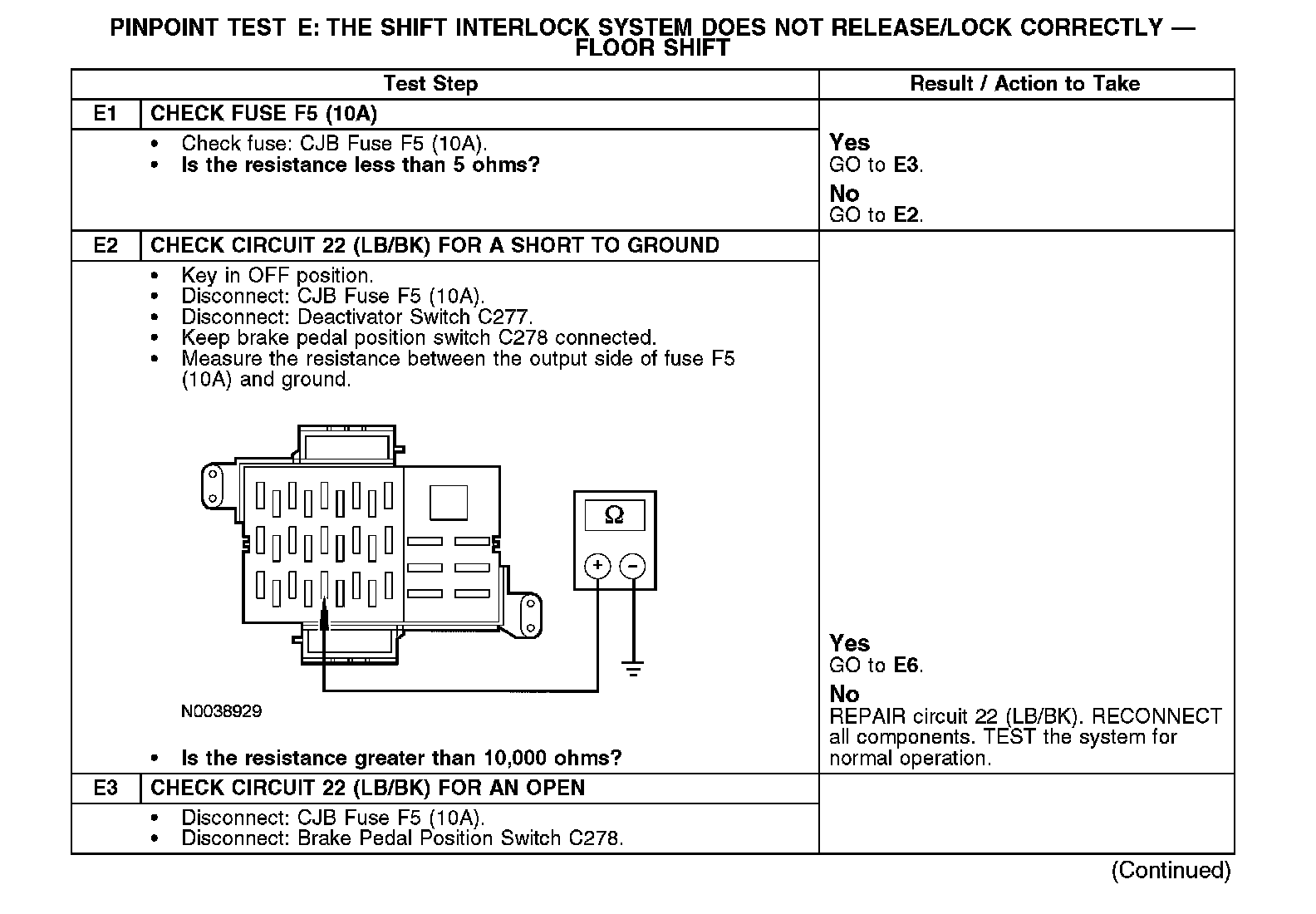

E1-E3:

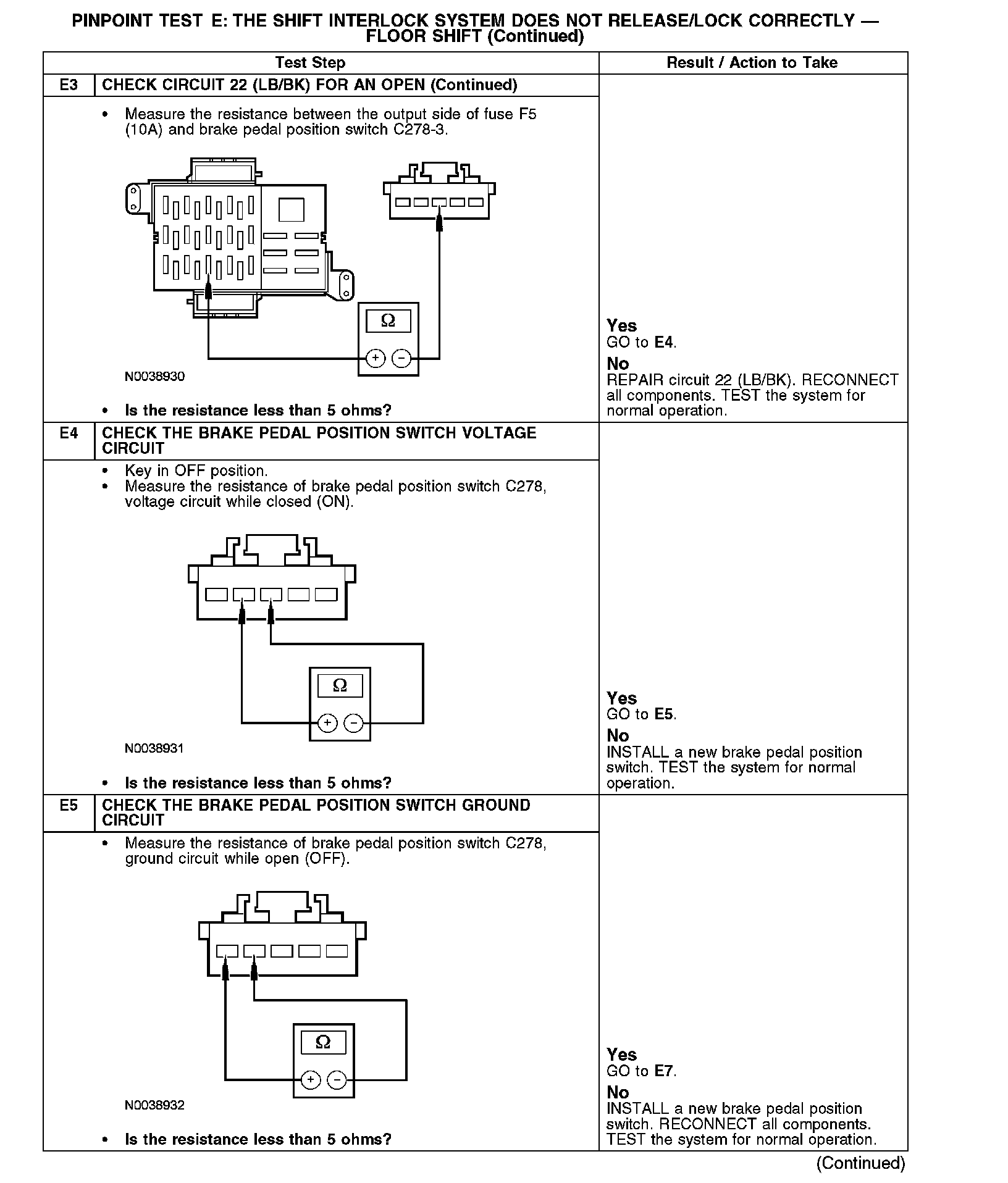

E3-E5:

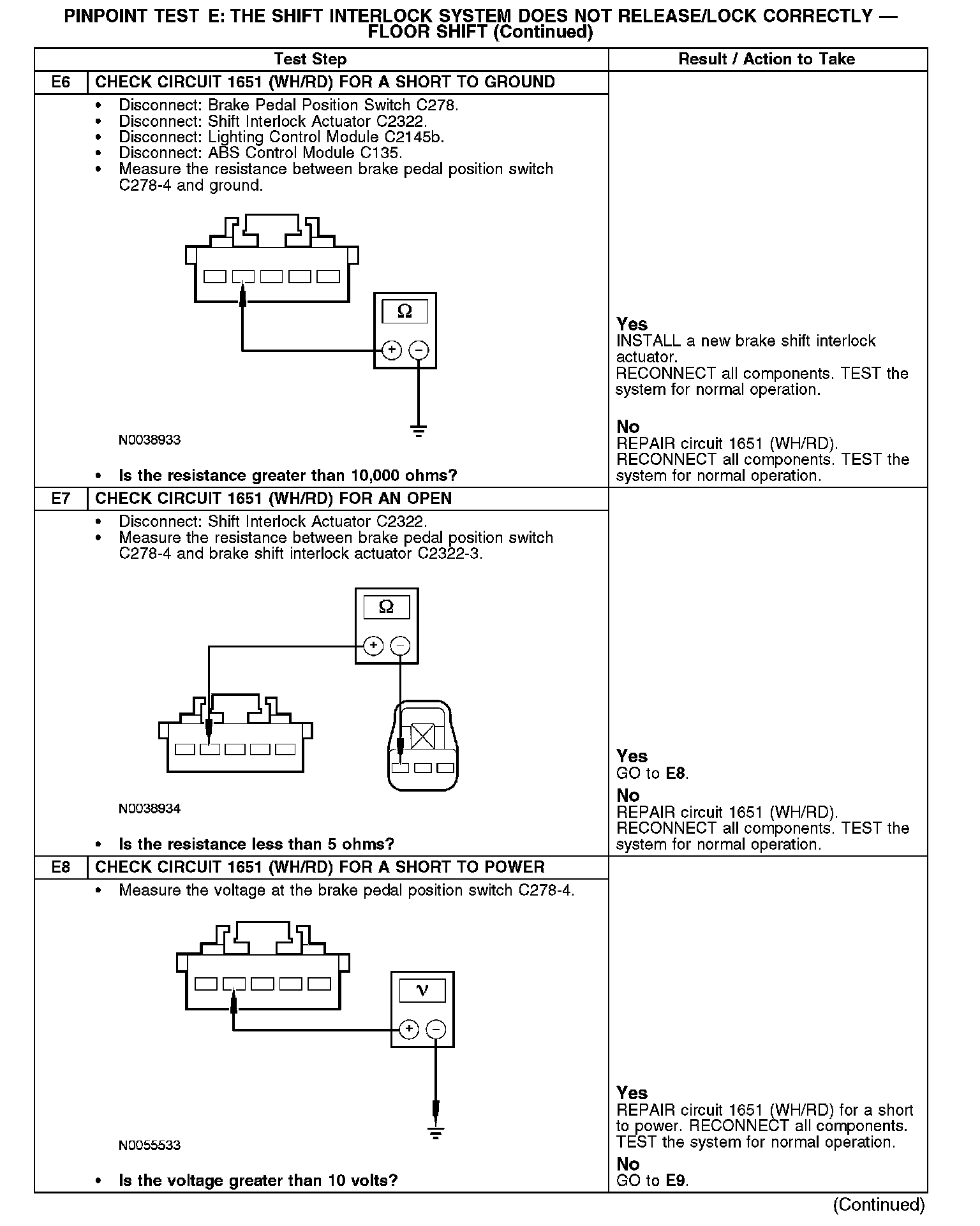

E6-E8:

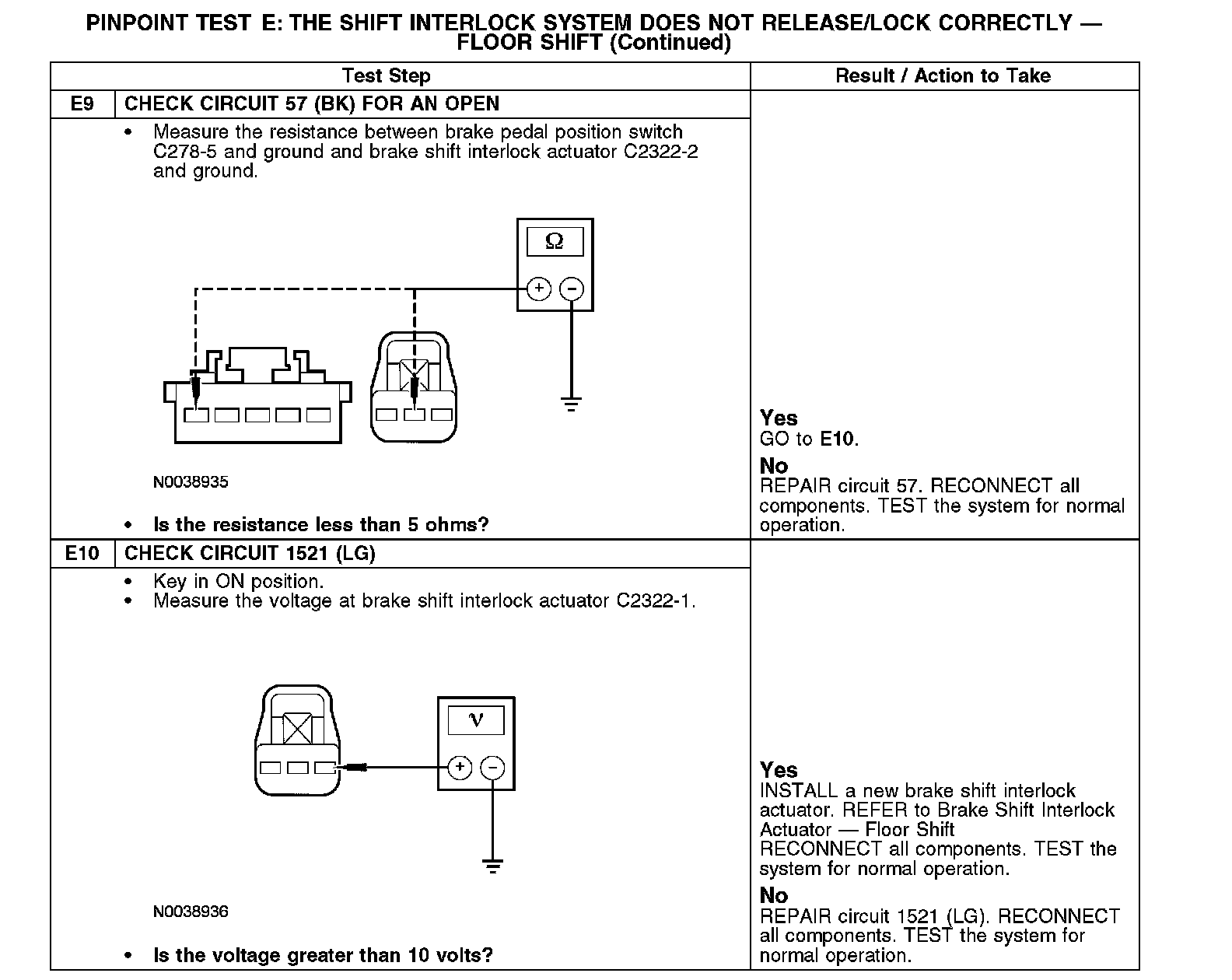

E9-E10:
