Test D: The Transmission Control (TC) Switch Does Not Operate Correctly
Test D: The Transmission Control (TC) Switch Does Not Operate Correctly
TEST D: THE TRANSMISSION CONTROL (TC) SWITCH DOES NOT OPERATE CORRECTLY

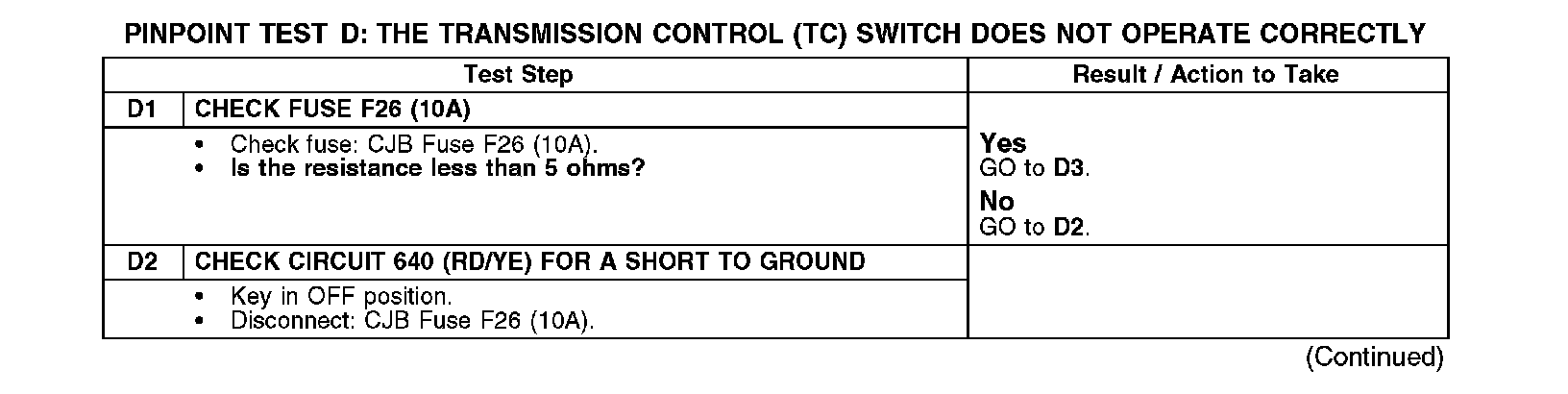

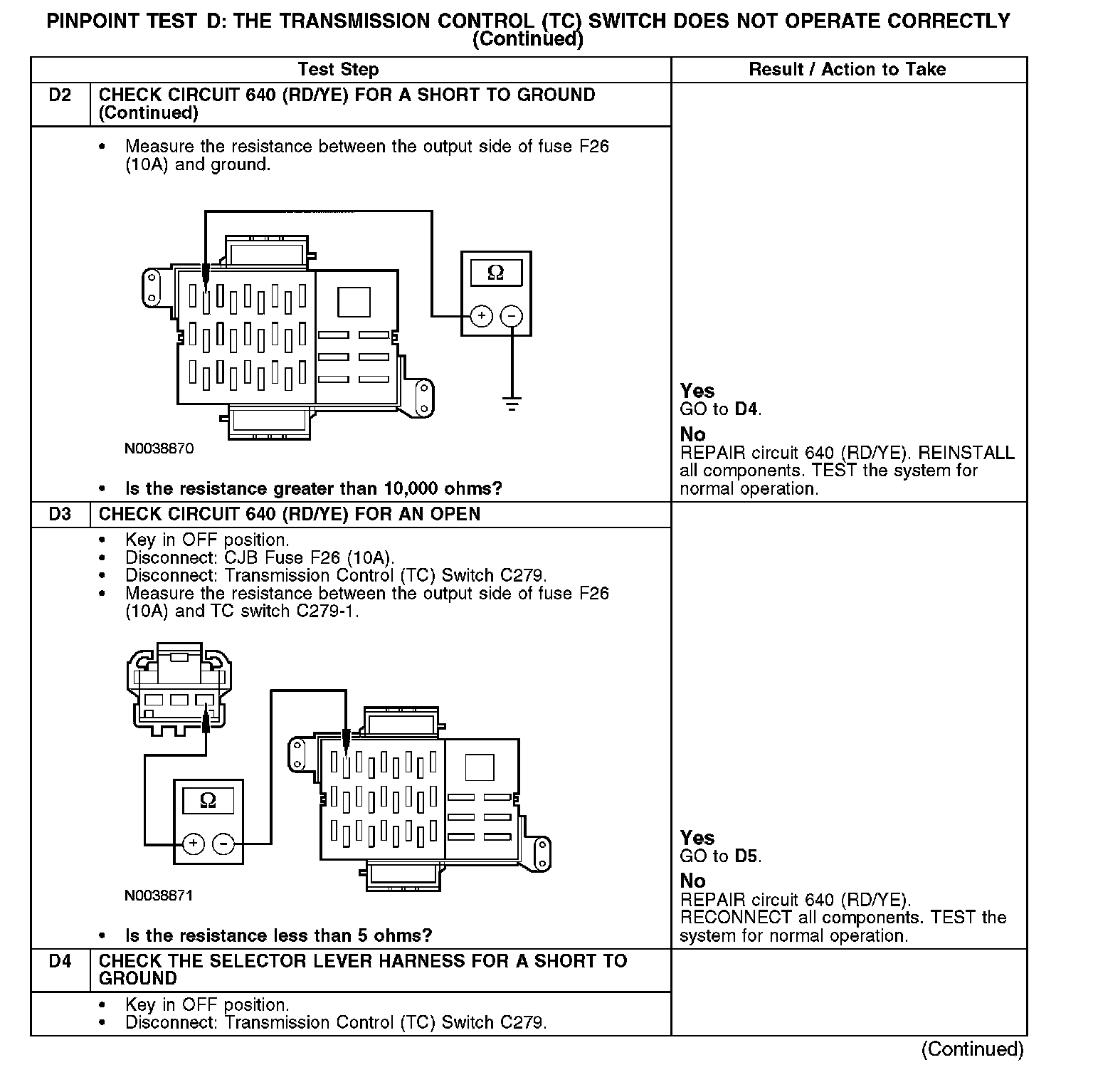

D1-D2:
D2-D4:

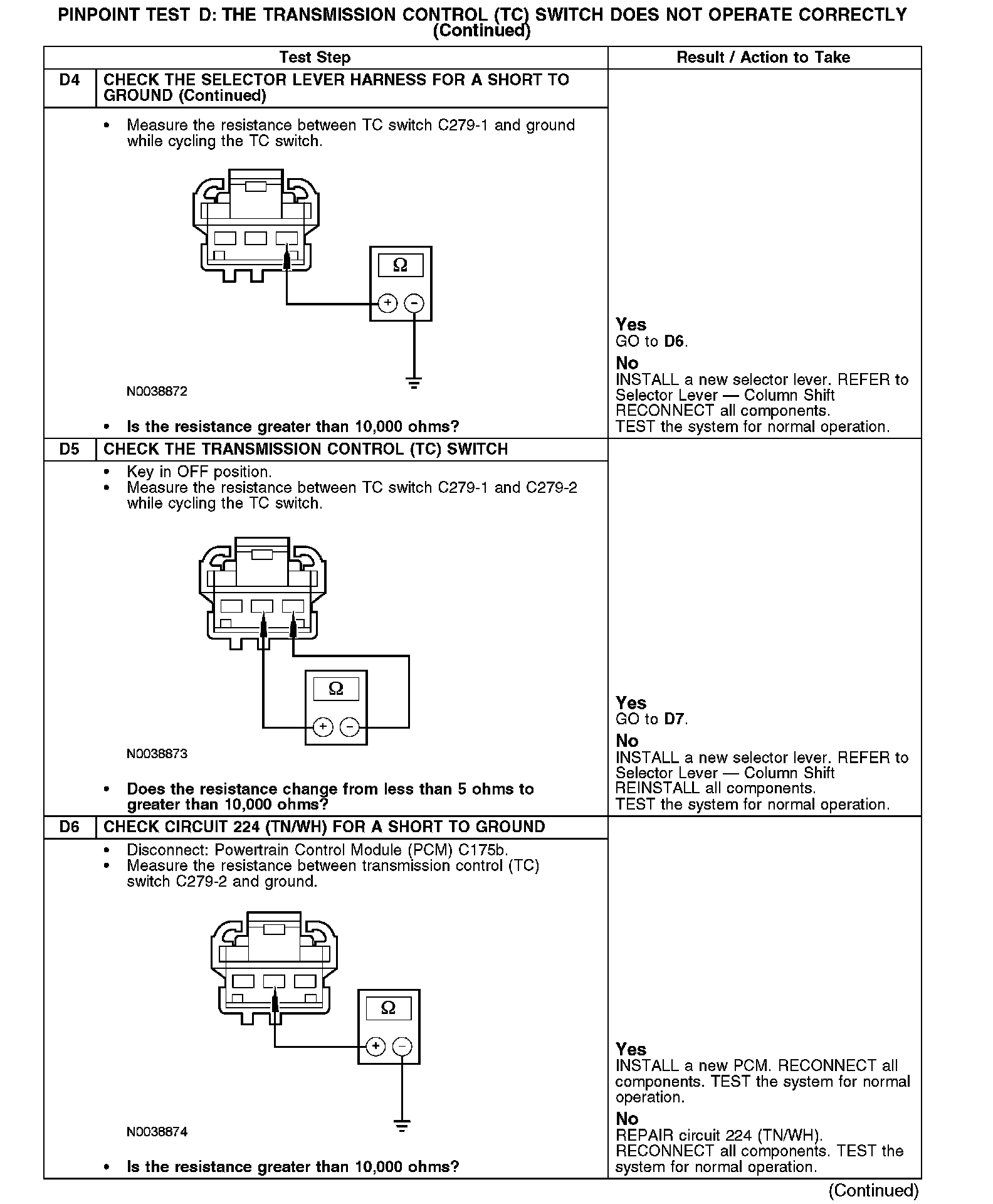

D4-D6:

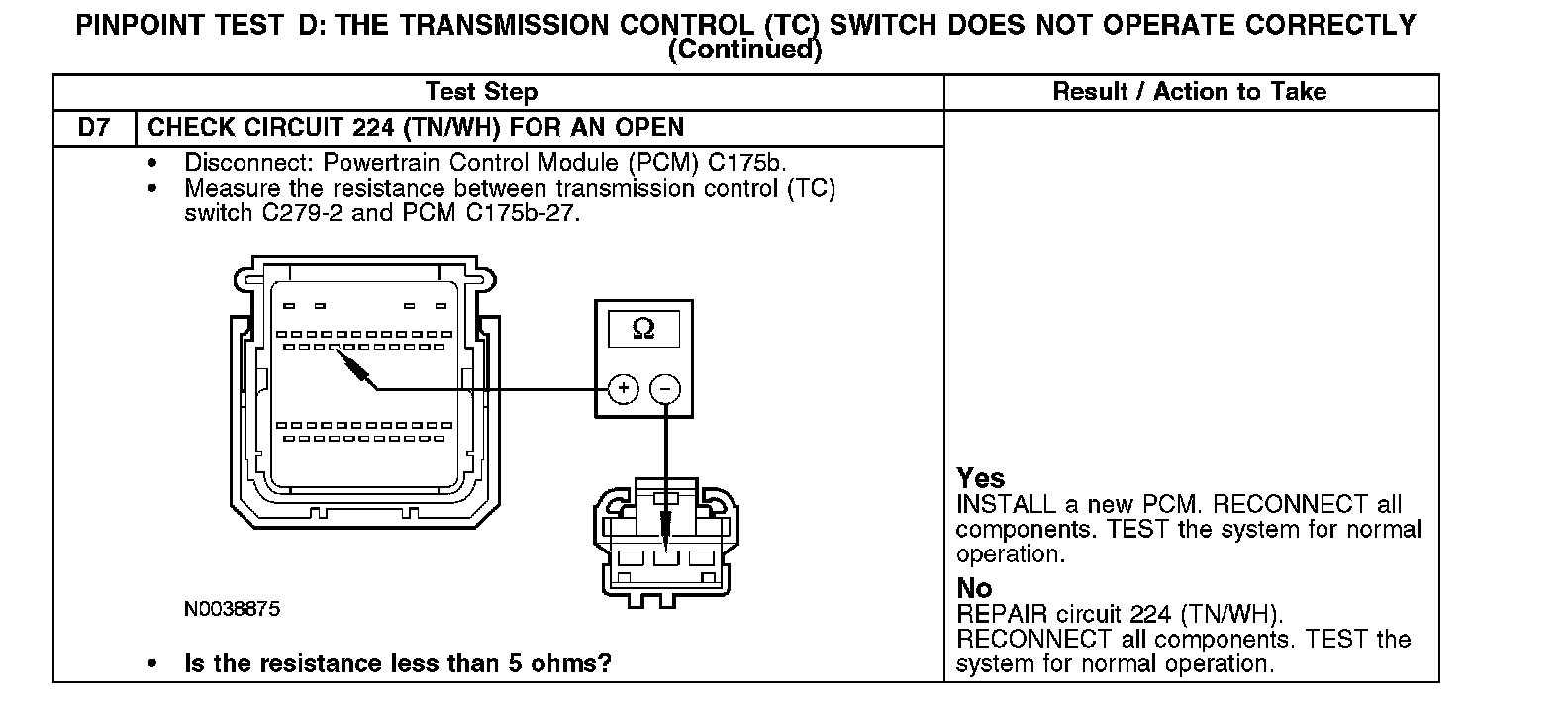

D7:
