External Controls

Inspection and Verification

WARNING: If equipped with fire suppression system, refer to Fire Suppression System for Important Safety Warnings.

1. Verify the customer concern by operating the transmission external control.
2. Visually inspect for obvious signs of mechanical and electrical damage, incorrect component installation and component misalignment. Verify that all circuit-related systems are functioning correctly. Refer to the following chart.

B1485:

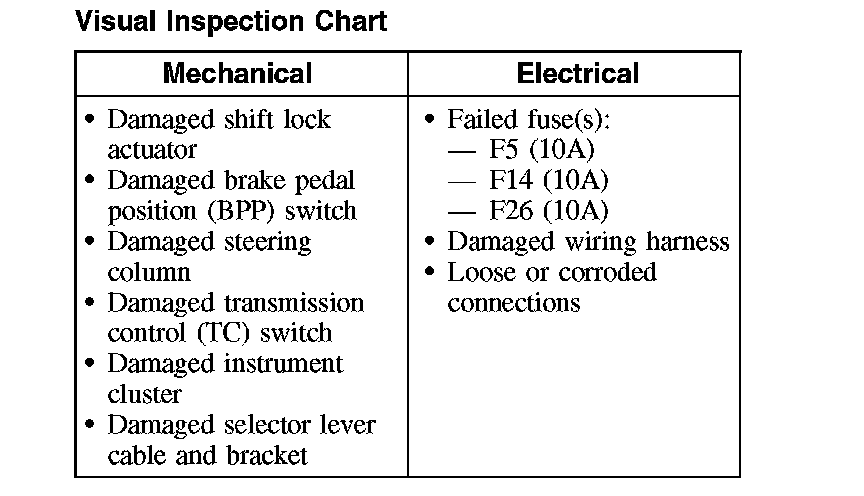

Visual Inspection Chart:

3. If the fault is not visually evident, GO to Symptom Chart - Column Shift or GO to Symptom Chart - Floor Shift. External Controls
