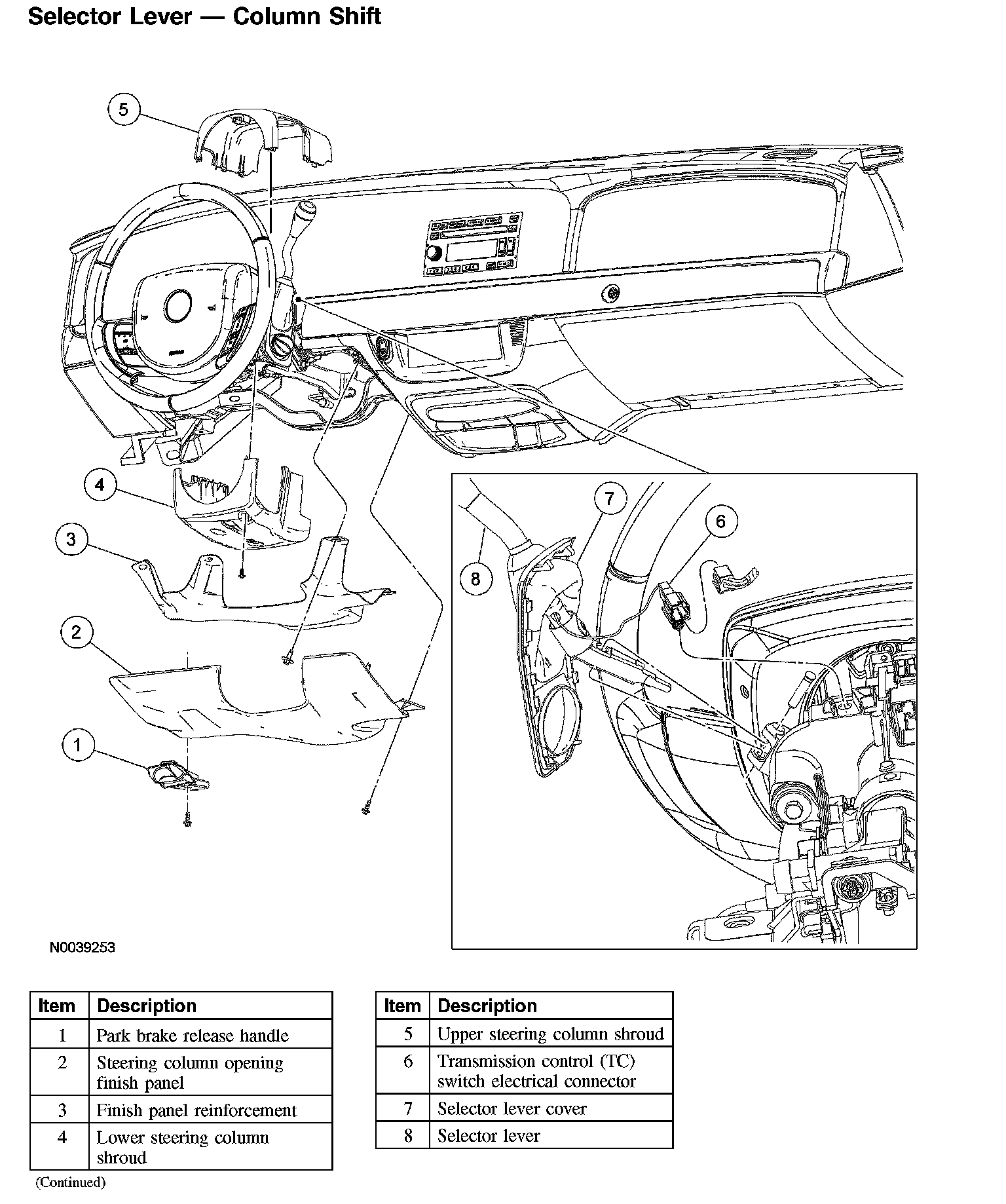

Selector Lever - Column Shift

Selector Lever - Column Shift

Selector Lever - Column Shift:

Removal and Installation

1. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

Please refer to the appropriate information to determine the location of the front air bag sensors.

The side air bag sensors are located at or near the base of the B-pillar.

To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

Disconnect the battery ground cable. Wait at least one minute before proceeding with the procedure to allow the backup power supply to deplete its energy.

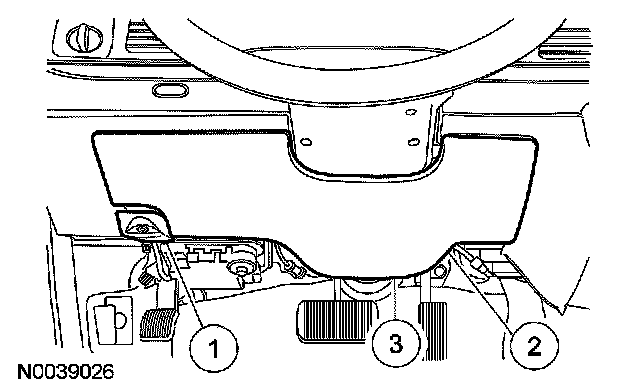

2. Remove the lower steering column opening finish panel.
1 Remove the screw and position the parking brake release handle aside.
2 Remove the screw from the lower steering column opening finish panel.
3 Pull outward to release the retaining clips and remove the lower steering column opening finish panel.

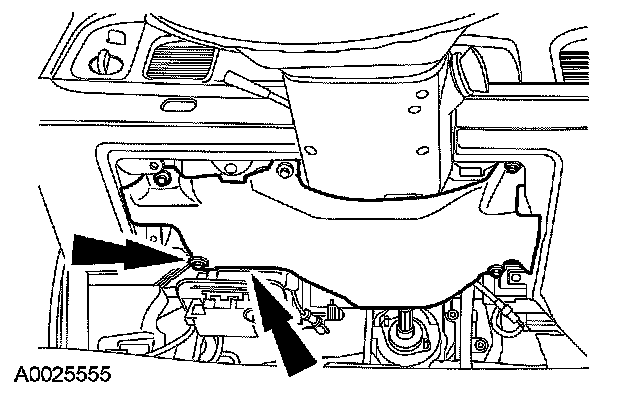

3. Remove the 5 screws and the lower steering column opening finish panel reinforcement.

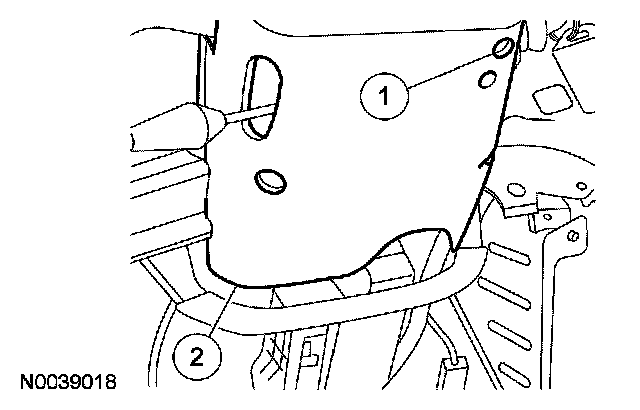

4. Remove the lower steering column shroud.
1 Remove the 3 screws.
2 Remove the lower steering column shroud.

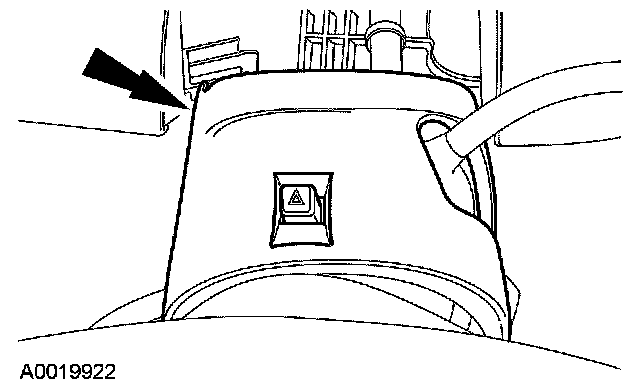

5. Remove the upper steering column shroud.

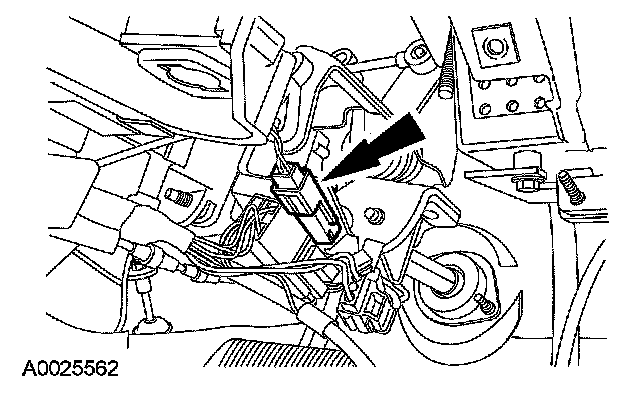

6. Disconnect the transmission control (TC) switch harness connector.

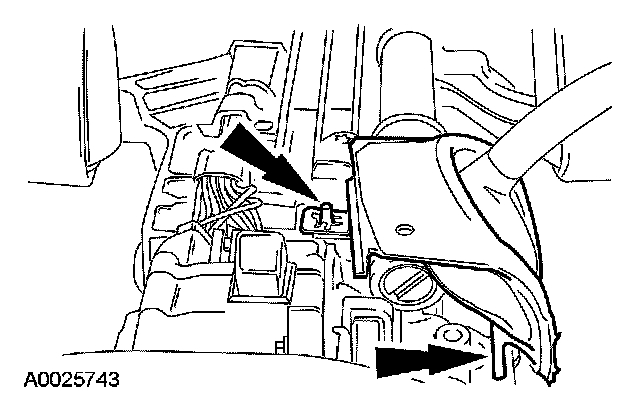

7. Separate the TC switch harness from the locators and the selector lever cover from the steering column.

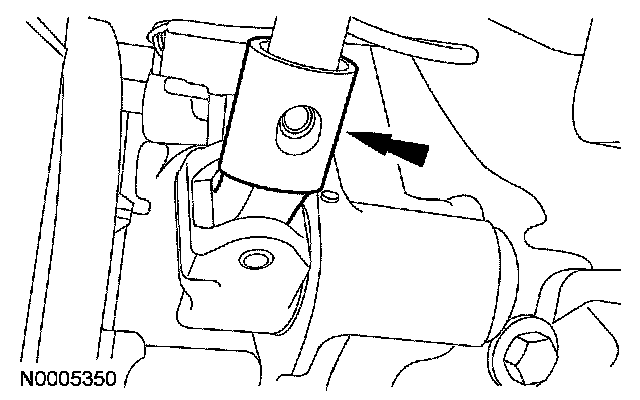

8. CAUTION: Never reinstall the old selector lever pin.

Remove the selector lever pin and the selector lever. Discard the selector lever pin.





9. To install, reverse the removal procedure.
