Transmission Filler Tube

Transmission Filler Tube

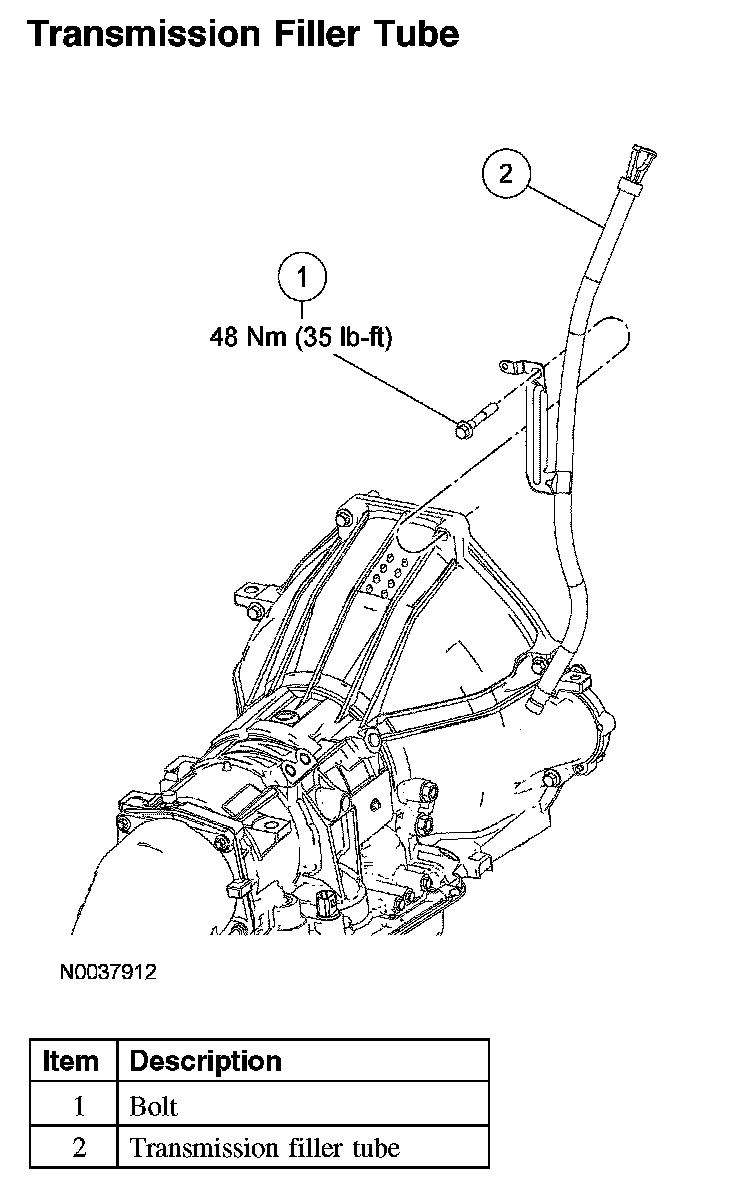

Transmission Filler Tube:

Removal and Installation

1. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire Suppression System.

With the vehicle in NEUTRAL, position it on a hoist.

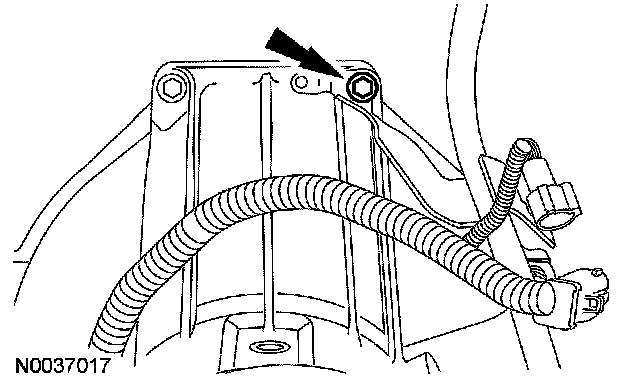

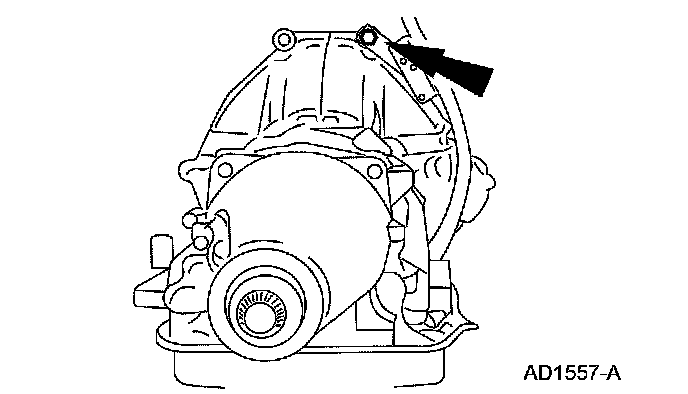

2. Remove the bolt.

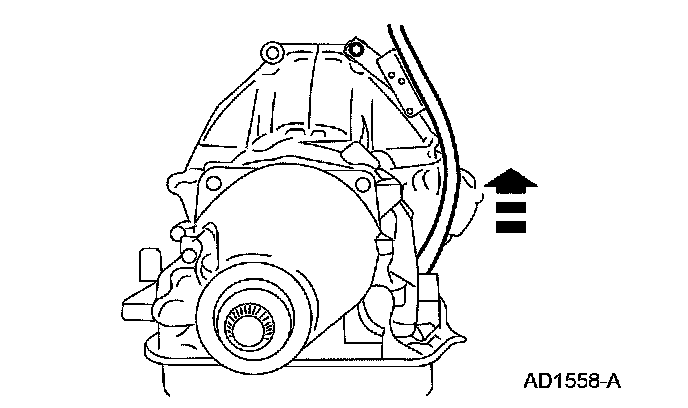

3. Remove the fluid filler tube.





4. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System.

To install, reverse the removal procedure. If equipped with fire suppression system, repower the system.
^ Tighten to 48 Nm (35 lb-ft).
