2-3 Accumulator

2-3 Accumulator

Removal

1. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire Suppression System.

Remove the main control valve body.

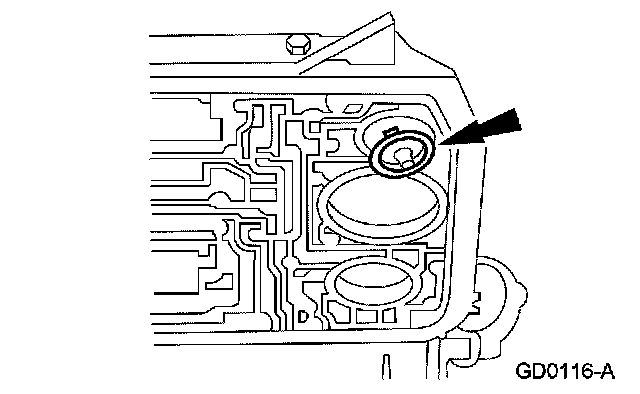

2. Remove the 2-3 accumulator piston retainer.

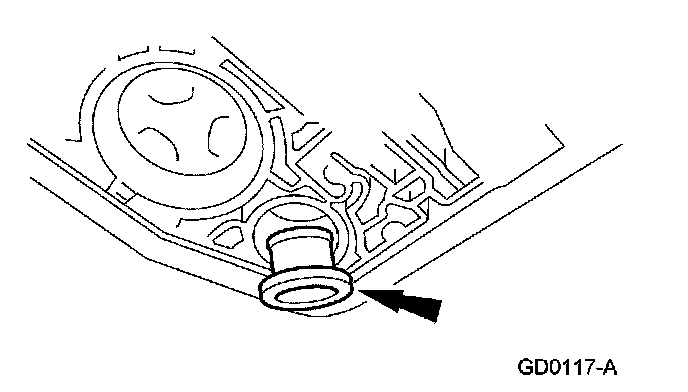

3. Remove the accumulator piston and spring.





Installation
1. Install the 2-3 accumulator assembly.
1 Install the accumulator piston.
2 Install the accumulator piston spring.
3 Install the accumulator spring retainer.





2. Install the main control valve body.

3. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System.

If equipped with fire suppression system, repower the system.
